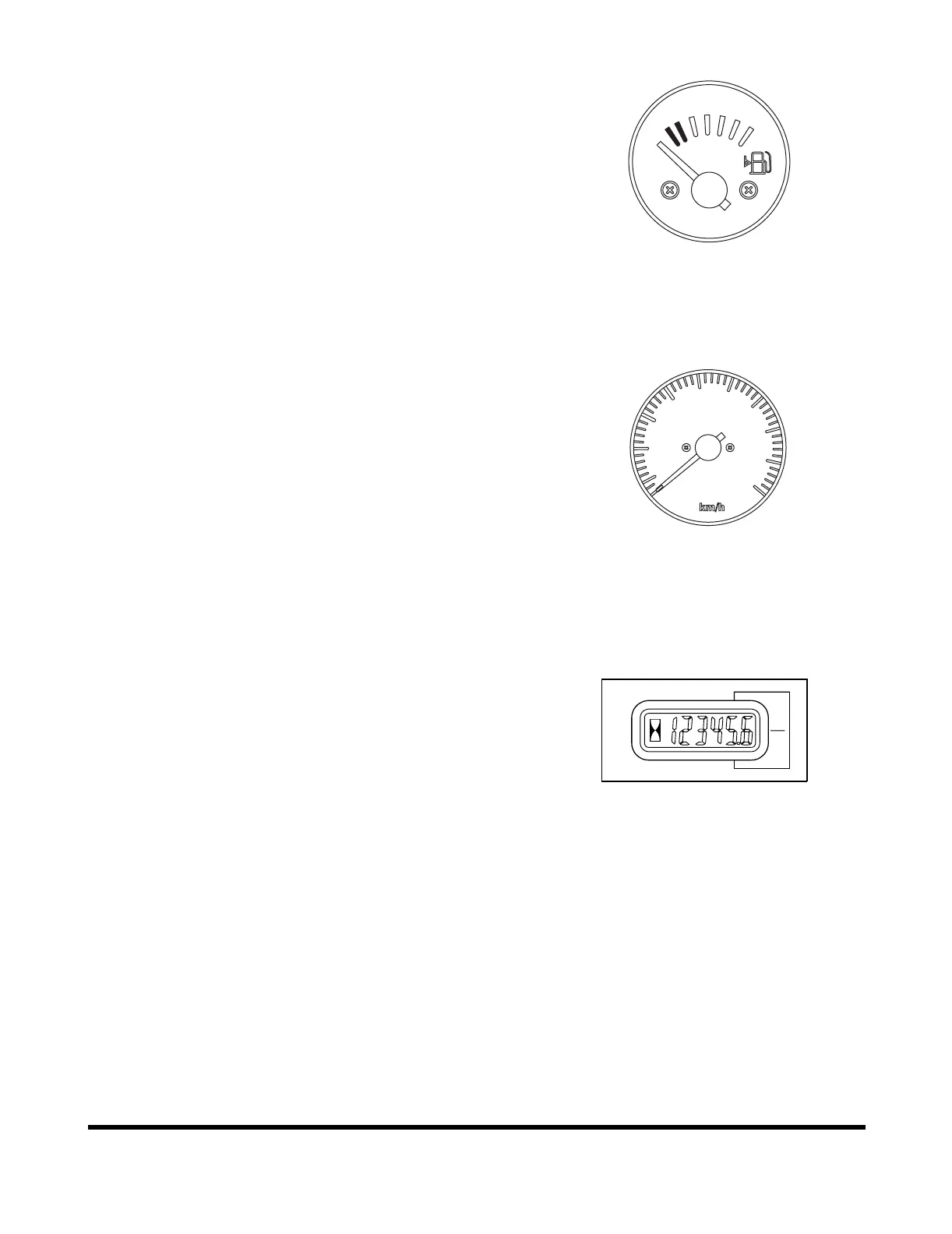

1. Fuel Gauge
This gauge displays amount of fuel in tank. "F" means
the tank is "full"; "E" means the tank is "empty." If the
pointer comes close to the "E" (red zone), add fuel as
soon as possible. When the pointer comes close to the
"E" (red zone), approximately 11.7l (3 U.S. gal.) of fuel
remains.
2. Speedometer
This meter displays speed at which vehicle is traveling.
3. Hour Meter
A LCD meter that records total time. When engine is
running, the hourglass icon blinks every four seconds.
This shows that the hour meter is working.
