Operating Controls

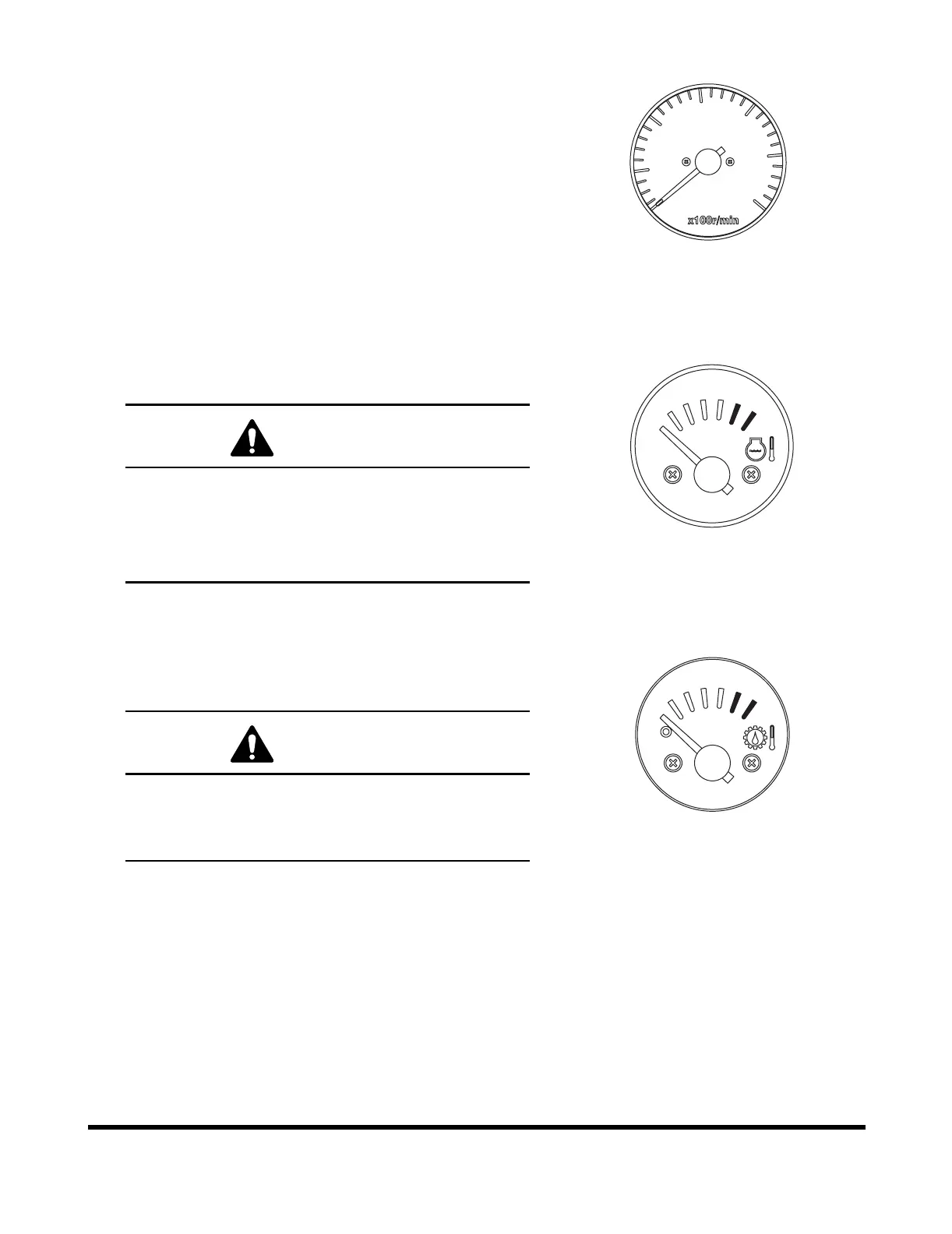

4. Tachometer
This meter displays engine speed in revolutions per
minute.
5. Engine Coolant Temperature Gauge
This gauge displays temperature of engine coolant.
6. Transmission Oil Temperature Gauge
This gauge displays temperature of oil in transmission
converter and transmission circuit.
15
20
10
5
0
30
25
FG004183
Figure 28
FG003949
Figure 29
CAUTION!
When the pointer indicates red zone, it means the
engine is overheated. Stop the operation, let the
engine run at low rpm and wait for it to cool down.
Do not shut down engine. If engine is shut down
heat surge may occur.
FG003950
Figure 30
CAUTION!
When the pointer indicates red zone, it means the
transmission is overheated. Stop the operation, let
the engine run at low rpm and wait for
transmission to cool down.
