OP000507Operating Controls
2-20
7. Transmission Display
A transmission display is in the gauge panel on the
dash. The LCD indicates, gears, direction of travel,
error codes, and activated kick-down.

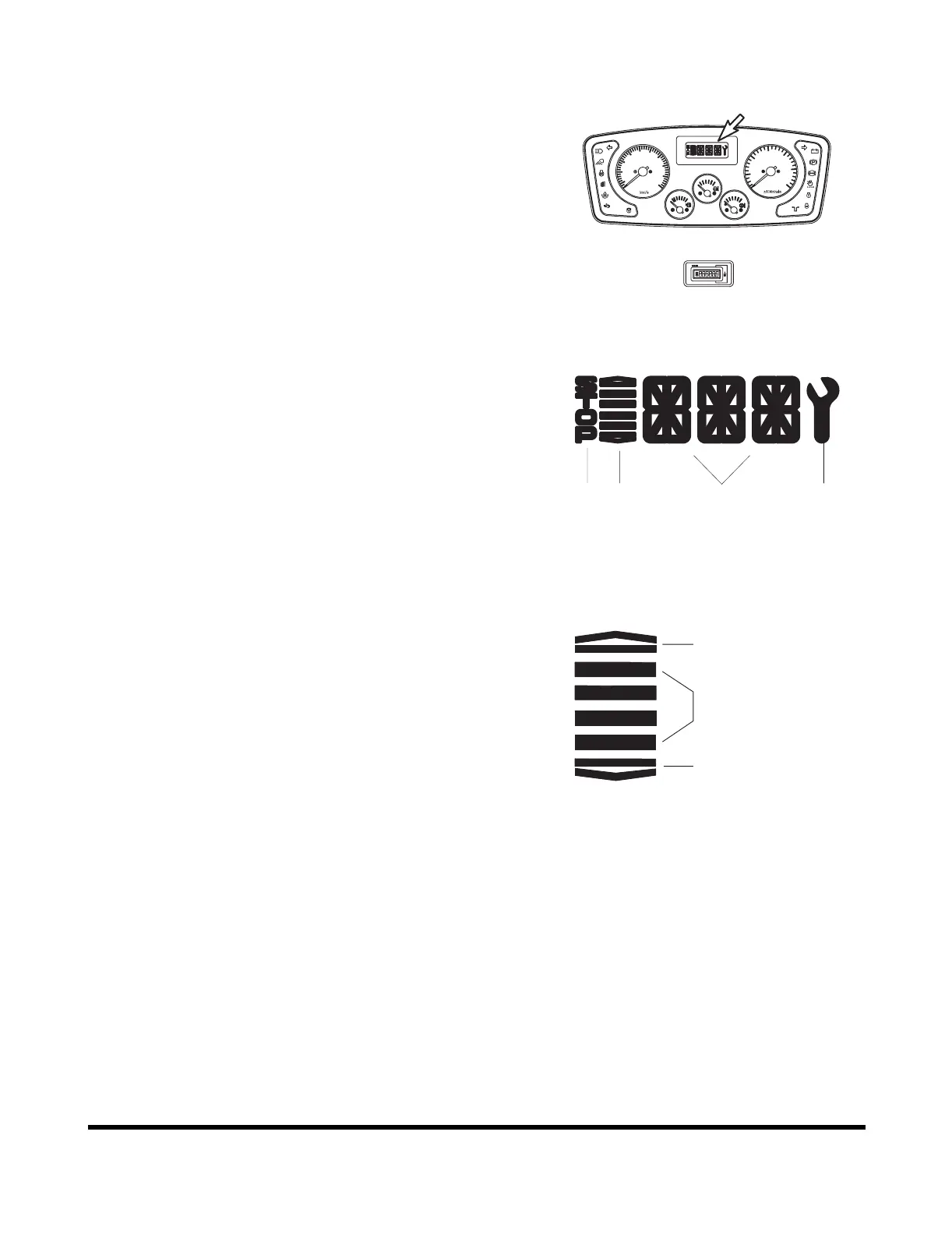

Figure 32, shows the transmission display in detail.
A. Indicates travel direction and gear selection. See
Figure 33 for more detailed information.
B. Indicates normal operation and error codes.
NOTE: Most codes are only two digits.
C. Indicates that error codes have occurred and are
stored.
D. Indicates that operation must be stopped
immediately to prevent damage to transmission
and hazardous operating condition.
The gear range indicator bars will indicate which gear
is selected by displaying the corresponding number of
bars. The forward and reverse indicator bars will be
"OFF" when the transmission is in "MANUAL MODE."
When transmission is in "AUTOMATIC MODE," all the
gear range indicator bars and both travel direction
indicators will be "ON."
10
0
5
20
30
25
15
40
30
50
20
0
10
FG006119
F/R
Figure 31
Figure 32
(D) (A)
(B)
(C)
Figure 33
HAAA3774
FORWARD
INDICATOR
GEAR RANGE
INDICATOR BARS
REVERSE
INDICATOR
