Dormakaba Saffire LX Installation Instructions

10 Saffire LX PK3704_T 02-19
4 Installation Steps
4.4. Step 4: Set up the inside trim assembly
Decide if the lever handle is a RH or LH position based on the door handing. The inside lever handle must be installed as it
does not come preinstalled.
CAUTION
WARNING
IMPORTANT
If the handing of the lock needs to be changed, please refer to annex C for changing the handing of the cassette if the lock
has a handed cassette (locks with automatic dead bolt or with inside lever switch).

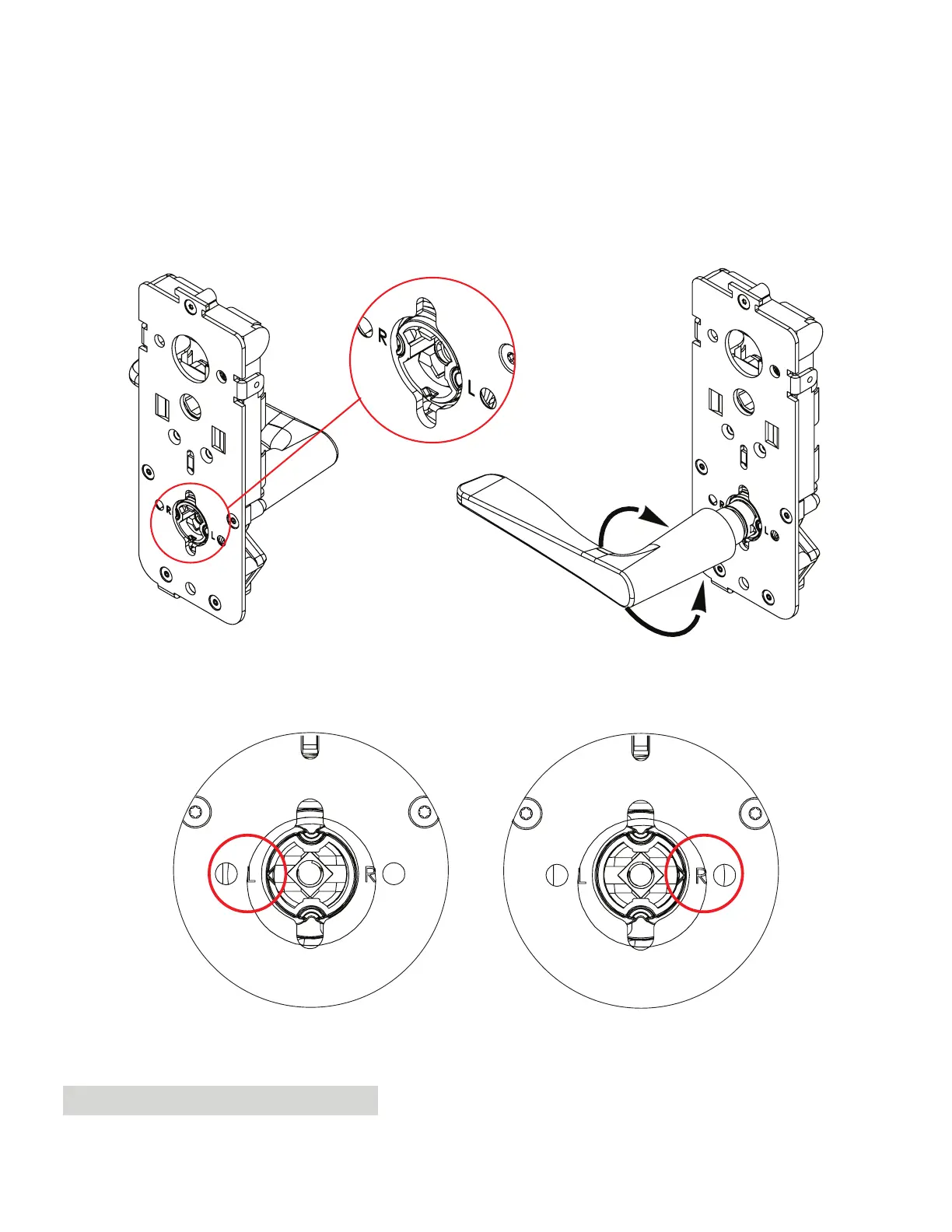

LH has arrow pointing L RH has arrow pointing R
• To set proper handing, insert the lever from the
back plate and turn in the direction required for the
handing (LH or RH).

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
