Dormakaba Saffire LX Installation Instructions

20 Saffire LX PK3704_T 02-19
4 Installation Steps

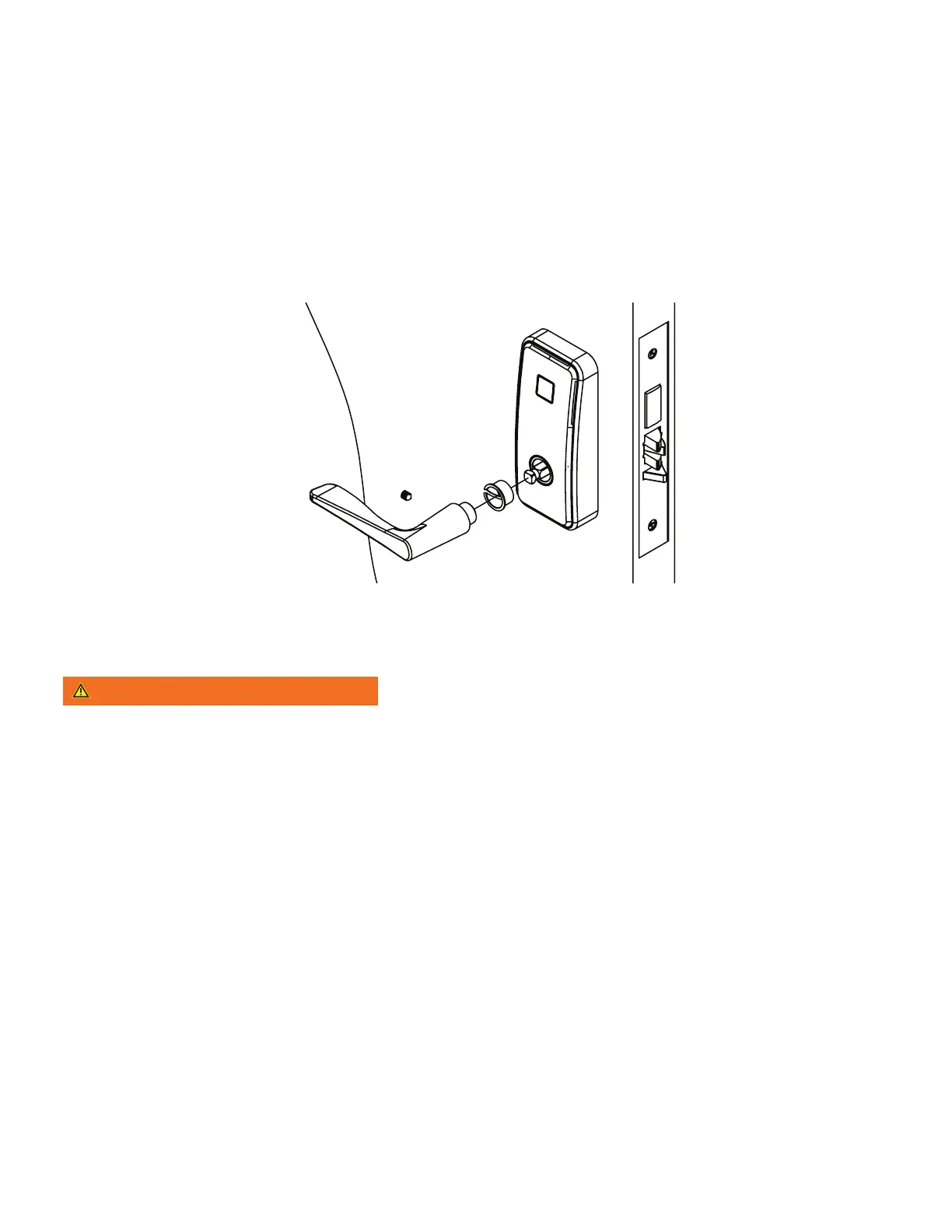

4.13. Step 10: Install the outside lever handle
• Install the outside bushing, making sure it is snug
• Install the outside lever handle according to the lock handing (LH/RH)
• Insert the set screw item 4 (refer to table 2) and tighten till snug
4.14. Step 11: Install the batteries
• Insert the batteries in the battery holder respecting the polarity indicated in the battery holder
CAUTION
WARNING
IMPORTANT
Use only Alkaline batteries
4.15. Step 12: Test lock functionality
Make sure the room door is open prior testing
A - Present test keycard
B - Check green & red lights flash
C - Rotate outside lever to check bolt retraction
D - Release outside lever, should move freely back to horizontal rest position.
E - Rotate inside lever to check bolt retraction
F - Release inside lever, should move freely back to horizontal rest position.
G - Check bolt projection from thumbturn, should be smooth.
4.16. Step 13: Program the lock
Refer to dormakaba access management system user manual for lock programming.

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
