Dormakaba Saffire LX Installation Instructions

Saffire LX PK3704_T 02-19 19
4 Installation Steps

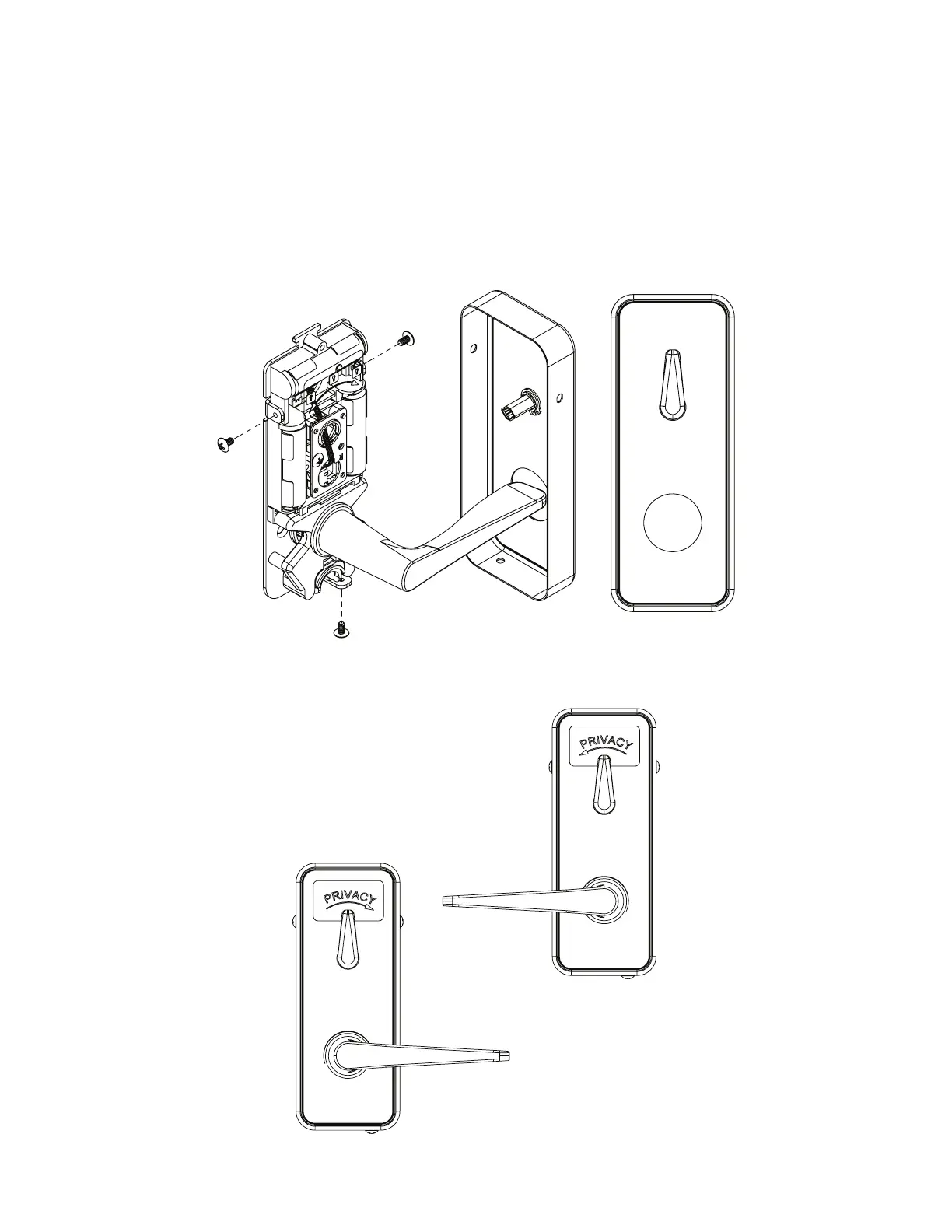

4.12. Step 9: Install the inside cover
• Set the thumb turn on the inside cover to a vertical position, pointing up.
• Slide the inside cover onto the lever handle taking care not to scratch the lever handle.
• When the cover is fully in place, secure it using the 3 screws item 5 (refer to table 1).
• For locks with an ADB mortise (automatic deadbolt mortise), apply the privacy thumbturn sticker.
L/H Locks
R/H Locks

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
