Saffire LX PK3704_T 02-19 11
4 Installation Steps

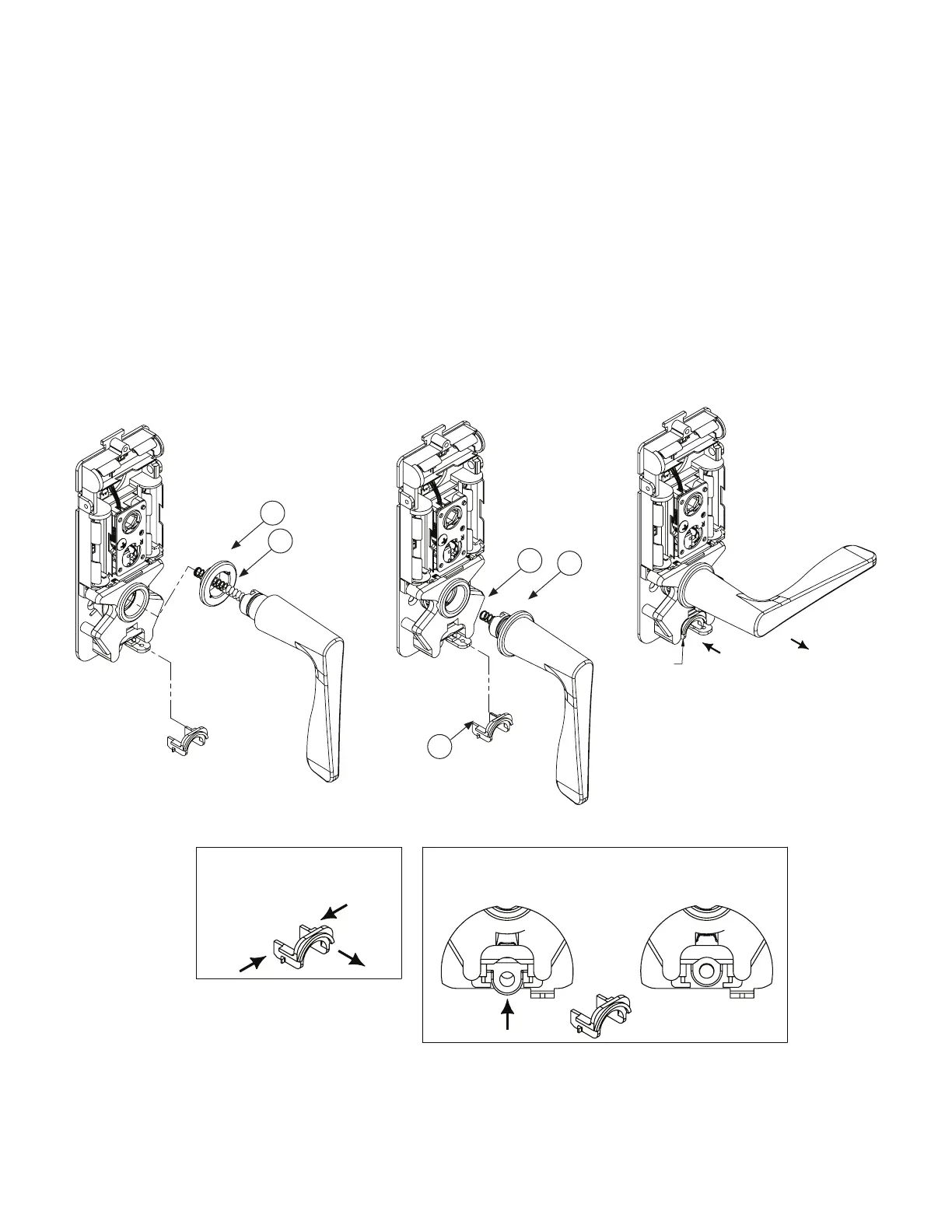

4.4. Step 4: Set up the inside trim assembly (Continued)
• Install the inside lever bushing item 7 (refer to table 2)
• Install compression spring item 13 (refer to table 1) if not already inside the lever handle.
• Install the lever vertically as shown (pointing down), making sure it is snug.
• Rotate the lever handle to horizontal position corresponding to selected handing.
• Push up the spring holder to select the handing (LH or RH). The spring holder engages between the two lever spring
legs.
• Install the snap-holder for spring stopper item 8 (refer to table 2) to lock and prevent lever from disengaging
CLICK!
TO REMOVE CLIP, SQUEEZE
IN TABS TO RELEASE
HOOKS ENGAGEMENT
1
1
2
ALIGN SPRING STOPPER AND BACKPLATE HOLES
BEFORE INSTALLING SNAP HOLDER
4.5. Step 5: Install the locking mechanism on the door
Before starting the installation of the lock on the door, please make sure the door has been prepared properly with proper
holes for the lock. Refer to corresponding drilling template for your lock model. Drilling templates are available in the cen-
terfold included in this installation manual and on the dormakaba support site (dormakabalodgingsupport.com).
To identify the item num-
bers listed below, refer to
Table 2 (numbers 7,8) and
Table 1 (number 13).
7
7
8
13
13
To Next Page
