Saffire LX PK3704_T 02-19 3
Caution: Please read and follow all directions carefully. Wear safety glasses when making the holes.
Target Audience: These instructions are designed for use by maintenance professionals or lock installers who are familiar
with common safety practices and competent to perform the steps described. dormakaba is not responsible for damage or
malfunction due to incorrect installation however arising.
Important: Carefully inspect windows, doorframe, door, etc. to ensure that the recommended procedures will not cause
damage. dormakaba standard warranty does not cover damages caused by installation.
Respect applicable building codes regarding handle height.
Definition of Terms: In these instructions, the term ASM refers to American Standard Mortise and ADB refers to Autodead-
bolt Mortise.
MKO refers to Mechanical Key Override
Technical Assistance
For technical assistance, call:
1.877.468.3555 / +1.514.735 5410
1.800.999.6213 / +1.248.837.3700

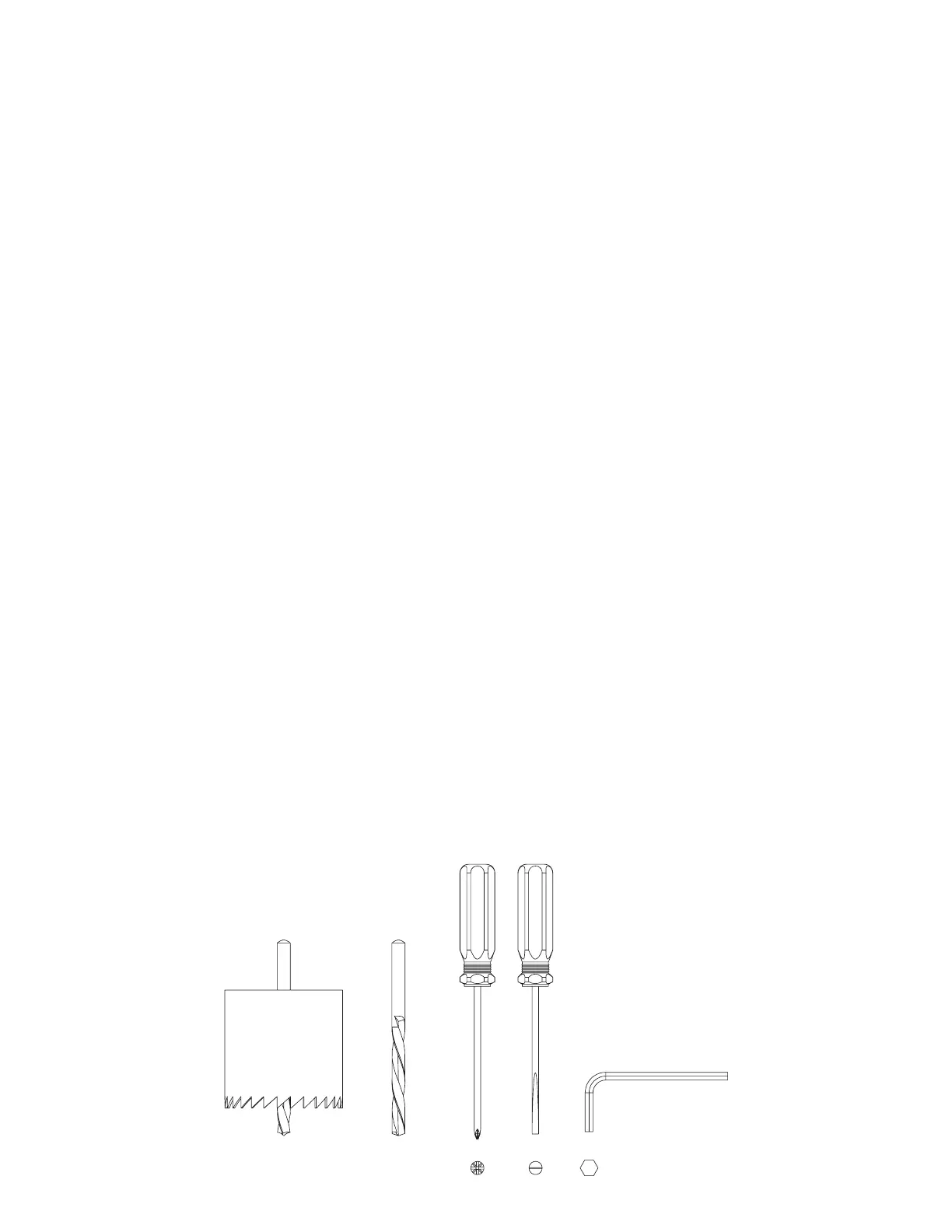

2 Recommended Tools (not included)
• Hole saw 2 ⁄ for Cylindrical latch only
• D
rill bits: ASM ⁄", ⁄", ⁄", 1⁄"
Cylindrical Latch ⁄", ⁄", ⁄", ⁄", 1"
European lock case: 3mm, 10 mm, 12,5 mm, 22 mm, 25 mm
• Phillips screwdriver (#2, #3)
• Small flat screwdriver
• Hexagonal key 3mm (Allen key)
