Dormakaba Saffire LX Installation Instructions

6 Saffire LX PK3704_T 02-19

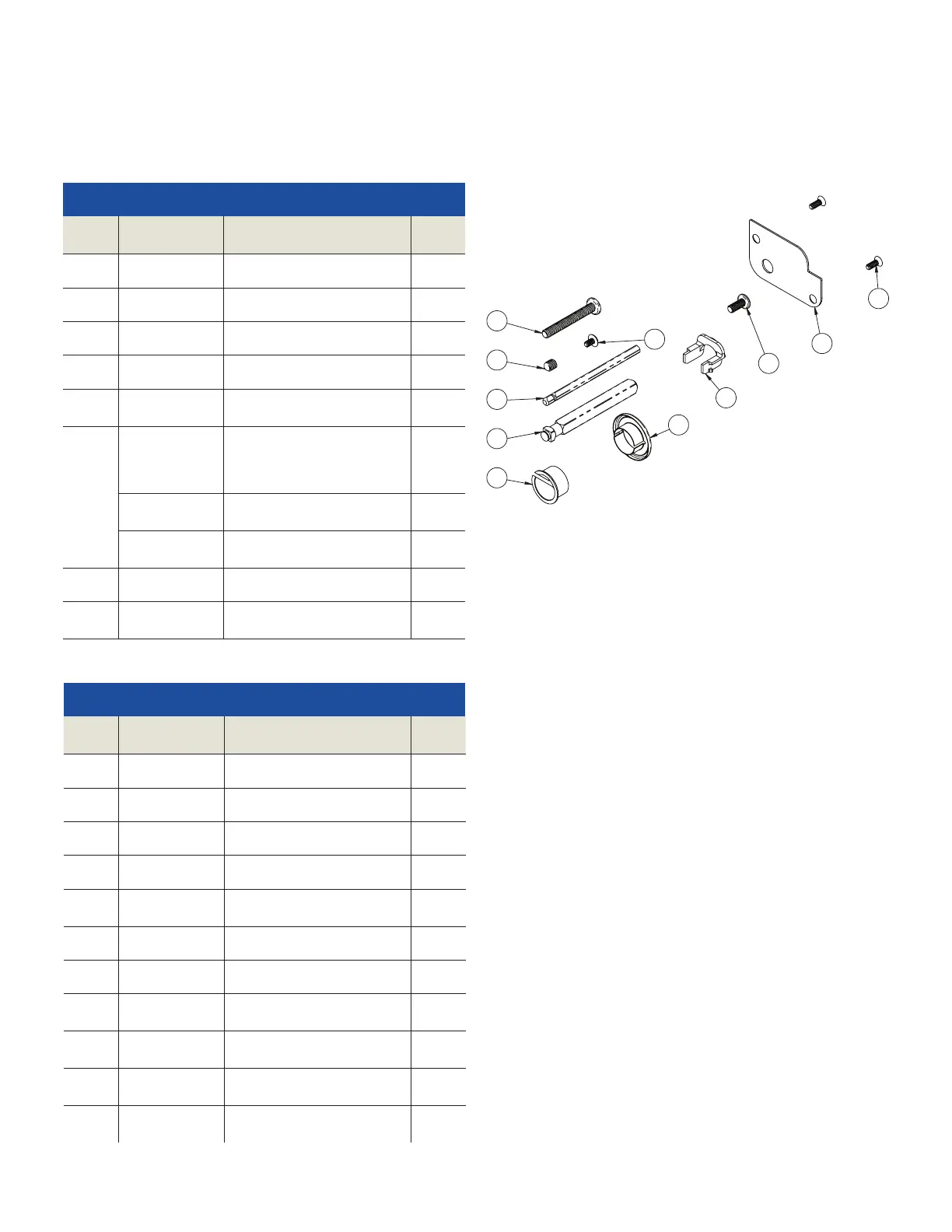

3 Components
3.3 Part numbers
For doors more than 2 1/2" thick up to 3 3/4", order the
appropriate hardware bag to receive the correct length of
spindles and mounting screws. Part# 061-516505.
For outdoor installations, order gasket 033-515996-1 for
EO lock and 033-515996-2 for MKO lock.
5
2
7
3
1
4
6
8
11
9
10
EO
ITEM
NO.
PART
NUMBER
DESCRIPTION QT Y.
1 020-515480-1 INSIDE SPINDLE 1
2 020-515481 TURN KNOB SPINDLE 1
3 017-515483 OUTSIDE BUSHING 1
4 941-514793 SET SCREW 1
5 810-511257
SCREW 6-32 X 1/4
PHILLIPS NO.2
3
6
810-515998
SCREW 12-24 X 1-5/8
IF ASM MORTISE LOCKS
OR CYLINDRICAL
LATCH LOCKS
3
810-515532-1
SCREW M4 X 30 MM IF
EURO LOCK CASE LOCKS
2
810-514739-5
SCREW M5 X 30 MM IF
EURO LOCK CASE LOCKS
2
7 017-515489 INSIDE LEVER BUSHING 1
8 025-515498
SNAP-HOLDER FOR
SPRING STOPPER
1
MKO
ITEM
NO.
PART
NUMBER
DESCRIPTION QT Y.
1 020-515480-1 INSIDE SPINDLE 1
2 020-515481 TURN KNOB SPINDLE 1
3 017-515483 OUTSIDE BUSHING 1
4 941-514793 SET SCREW 1
5 810-511257
SCREW 6-32 X 1/4
PHILLIPS NO.2
3
6 810-515998 SCREW 12-24X1-5/8 3
7 017-515489 INSIDE LEVER BUSHING 1
8 025-515498
SNAP-HOLDER FOR
SPRING STOPPER
1
9 041-515465
ACCESS PLATE KEY
CYLINDER
1
10 90273A146
SCREW 6-32 X 5/16 FLAT
HEAD PHILLIPS NO.2
2
11 90272A828
SCREW 10-32 X 7/16 PAN
HEAD PHILLIPS NO.2
1
Table 2 (a)
Table 2 (b)

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
