Dormakaba Saffire LX Installation Instructions

Saffire LX PK3704_T 02-19 7
To identify the item numbers
listed below, refer to Table 2.
2 3
1
4
CAUTION
WARNING
IMPORTANT
For MKO lock, start with step 1
For EO lock, start with step 2

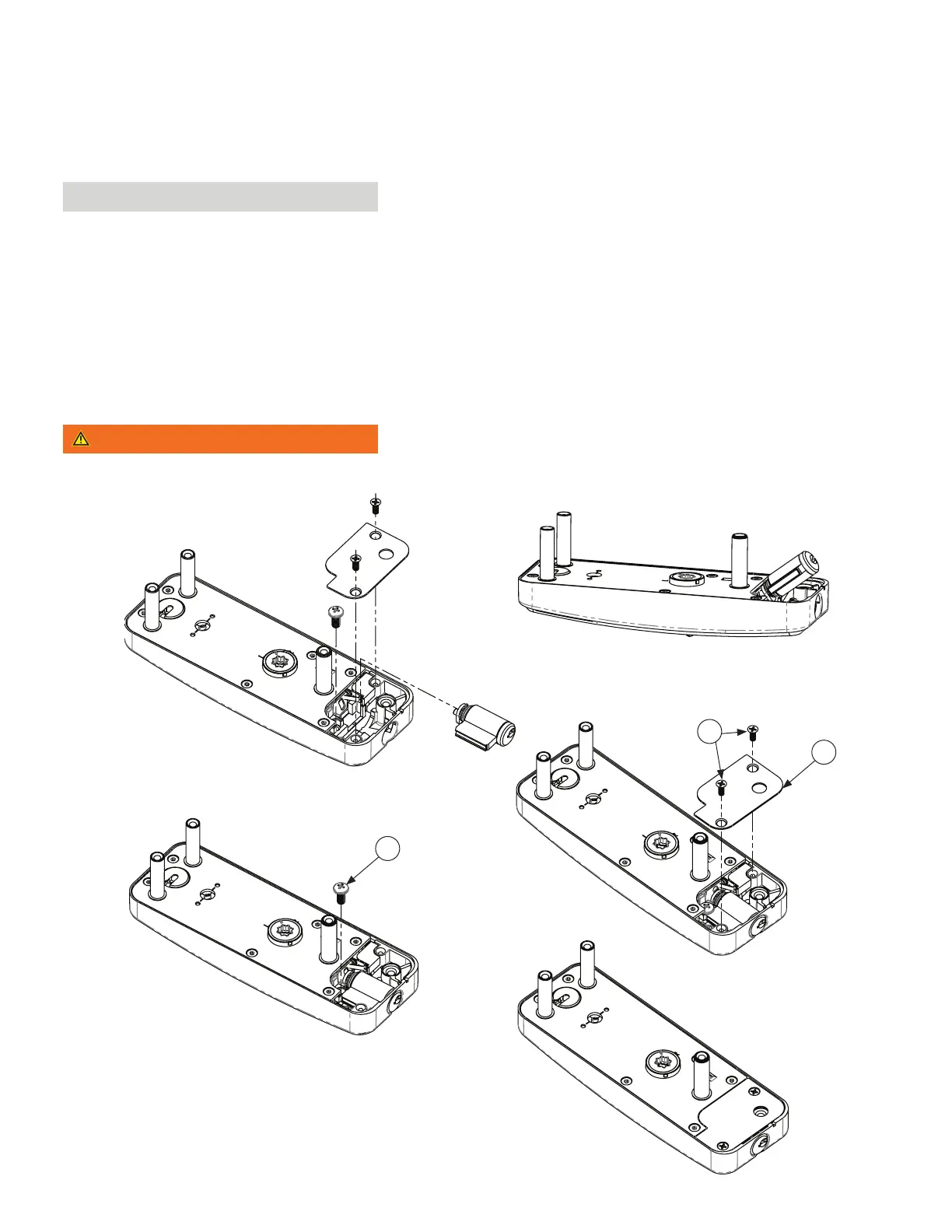

4.1. Step 1: Install key cylinder (for MKO only)
• Insert the cylinder core in the front lock housing assembly.
• Secure the cylinder core using screw item 11 (refer to table 2).
• Install the access plate key cylinder item 9 (refer to table 2) over the key override housing.
• Secure the access plate using two screws item 10 (refer to table 2)
CAUTION
WARNING
IMPORTANT
• Access plate must be installed for proper operation of the lock.
4 Installation Steps
11
9
10

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
