Dormakaba Saffire LX Installation Instructions

12 Saffire LX PK3704_T 02-19
4 Installation Steps

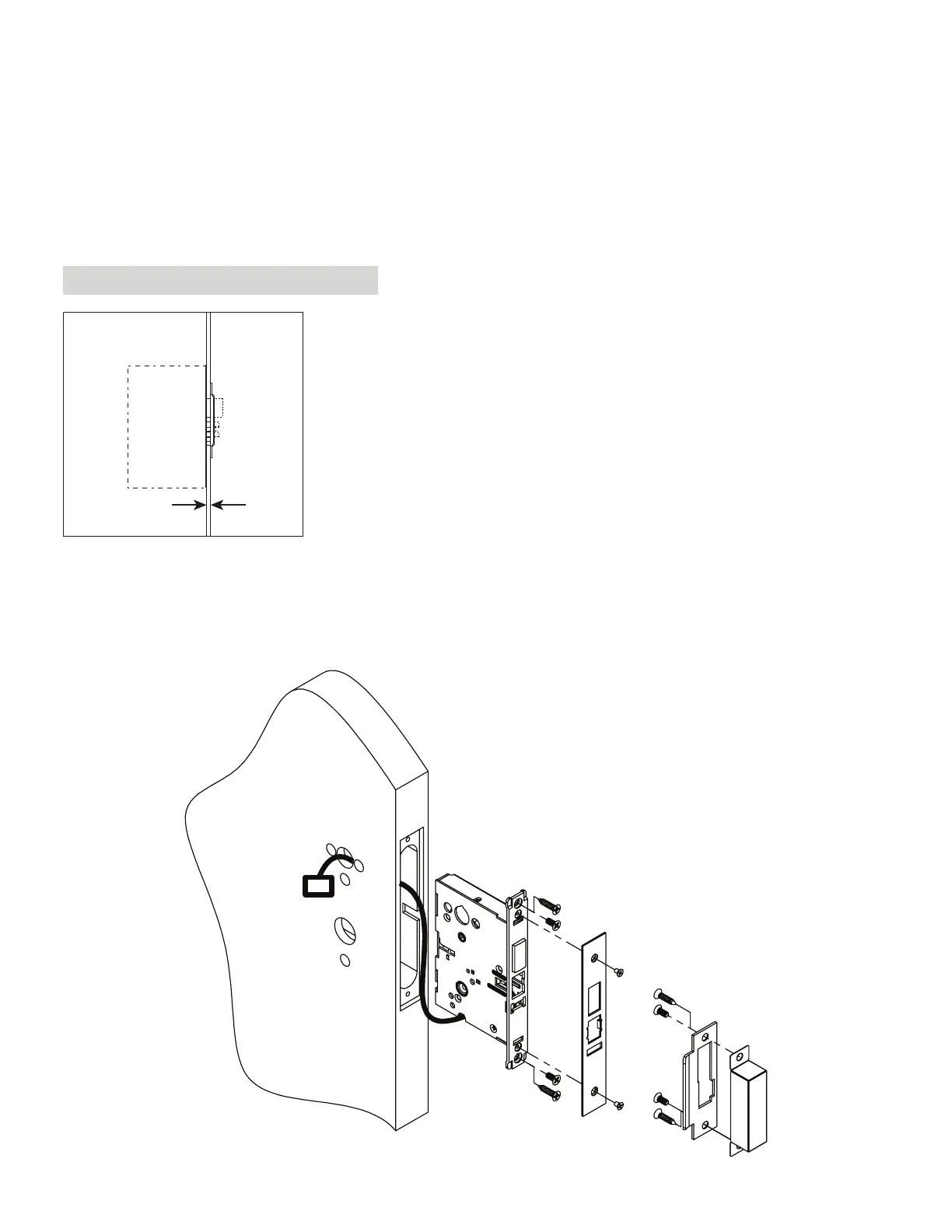

4.6. Install the mortise ASM (if lock equipped)
Before installing the mortise, verify gap between the door and the frame. The gap between the mortise face plate and the
strike must not exceed ¼” for the proper and secure operation of the mortise.
CAUTION
WARNING
IMPORTANT
Max. 1/4”
Mortise
Door
Door
Frame
• Verify the mortise handing for LH or RH. If the handing needs to be adjusted, refer to instructions in the annex A.
• Remove the faceplate by removing the two screws.
• Insert the mortise in the side of the door. If the mortise is equipped with a cable, route the cable so it comes out of
top hole on the side of the inside trim assembly.
Note: If lock is equipped with door ajar
cable, it will be neatly tucked into the
mortise though hole for housing

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
