Dormakaba Saffire LX Installation Instructions

4 Saffire LX PK3704_T 02-19

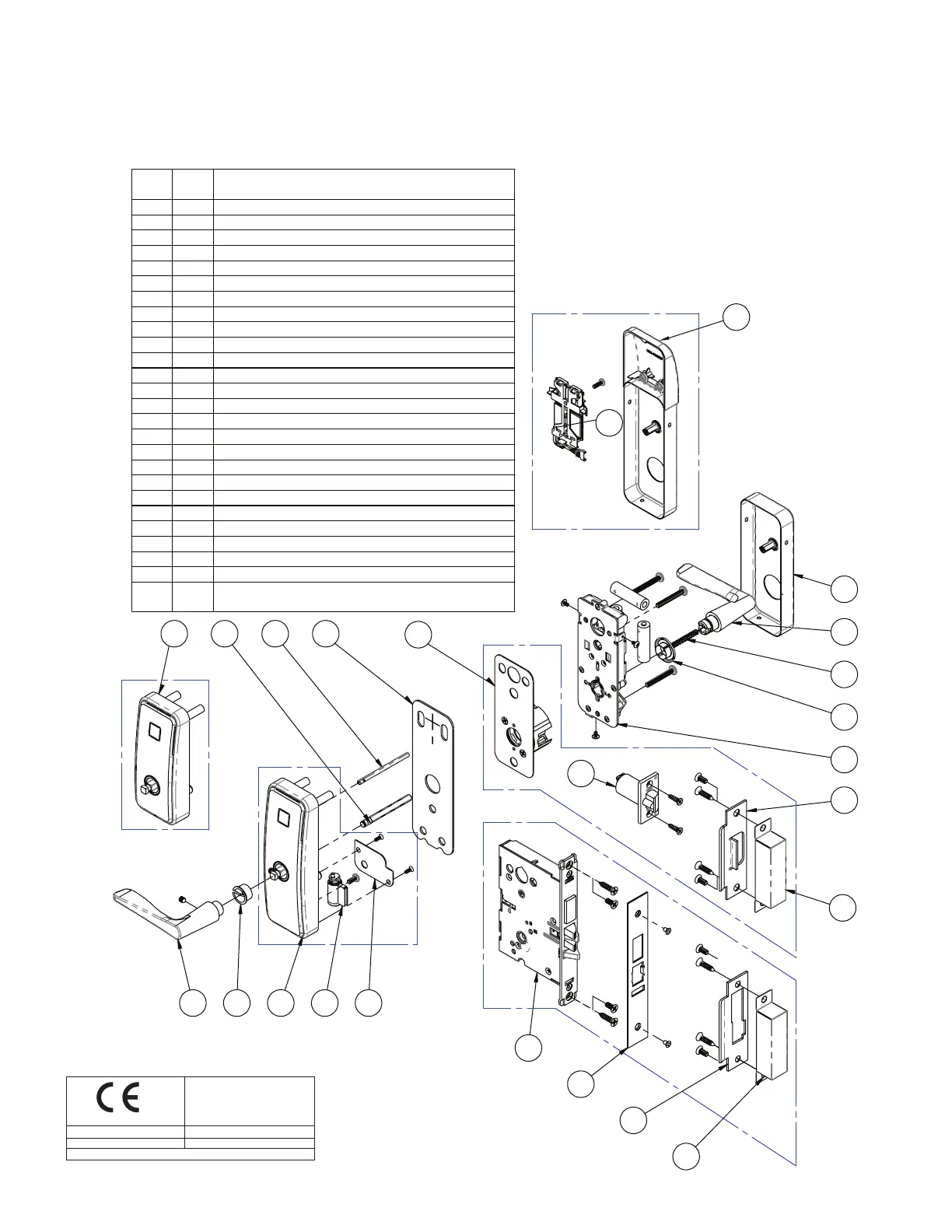

3 Components
3.1 ASM Mortise and Cylindrical latch
ASM MORTISE
MKO
CYLINDRICAL
LATCH
EO
OPTIONAL ANTENNA
31
61819
5
17
15
16
14
11
12
10
9
8
4
EO : Electronic Override
MKO : Mechanical Key Override
13
2
7
17
16
20
21
22
ALL OPTIONS SHOWN
ITEM
NO.
QTY DESCRIPTION
11 FRONT LOCK HOUSING ASSEMBLY - MKO
21 FRONT LOCK HOUSING ASSEMBLY - EO
31 OUTSIDE LEVER
41 OUTSIDE BUSHING
51 ACCESS PLATE KEY CYLINDER
61 GASKET (outoor models only)
71 INSIDE TRIM COVER
81 INSIDE TRIM - W. ANTENNA
91 ANTENNA ASSEMBLY
10 1 BACK UNIT CHASSIS ASSEMBLY
11 1INSIDE BUSHING
12 1
INSIDE LEVER BUSHING
13 1 COMPRESSION SPRING
14 1 ASM MORTISE
15 1 ASM FACE PLATE
16 1 STRIKE
17 1 DUSTBOX
18 1 TURN KNOB SPINDLE (locks with turn knob only)
19 1 INSIDE SPINDLE
20 1 LATCH
21 1 BACK PLATE CYLINDRICAL ASSEMBLY
22 1 KEY CYLINDER (PROVIDED SEPARATELY)
23 1 EUROPEAN LOCK CASE
24 1 EUROPEAN STRIKE
25 2 CYLINDER ROSE
26 1
EUROPEAN CYLINDER
(may have to purchase separately)
dormakaba Canada Inc.
7301 Decarie Blvd.
Montreal Quebec Canada
H4P 2G7
18
3S510G3HH1D
None
1309 - CPR - 0360
EN 12209:2003/AC:2005
Table 1

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
