4 Installation Steps

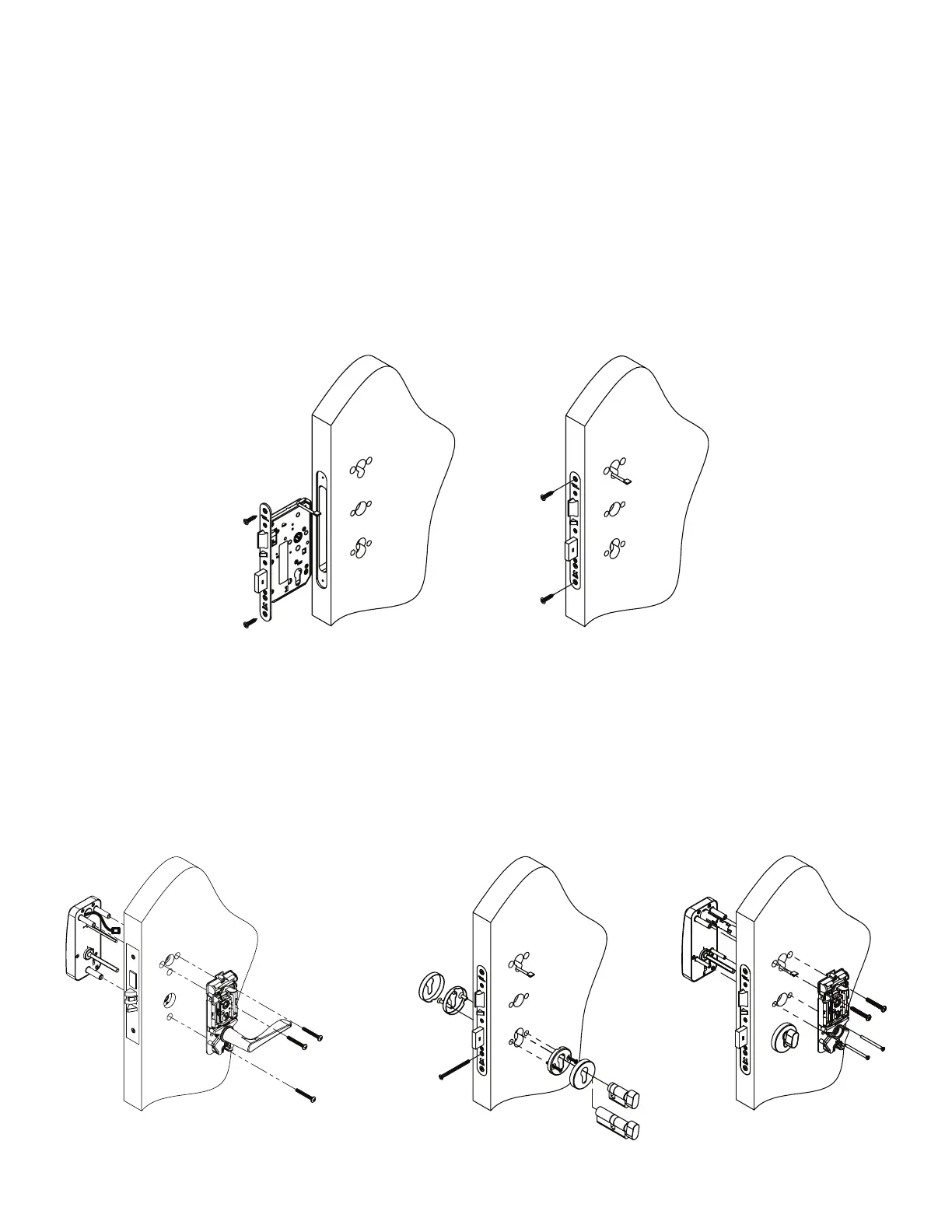

4.8 Install the European lock case
• Verify the lock case handing for LH or RH. If the handing needs to be adjusted, refer to instructions in the annex B.
• Insert the lock case in the side of the door. Route the cable so it comes out of the top hole on the side of the inside
trim assembly.
• Secure the lock case using the screws provided.
• Install rose and key cylinder (if this option selected)
• Install the strike and the dust boxes on the frame of the door.
4.9. Step 6 Install the lock housing on the door
• Install the front lock housing, routing the wire cable(s) by the center hole at the top
• Install the inside housing
• Install the screws item 6 (refer to table 2) provided and tighten. Verify that the lever of the inside housing can retract
the latch. If not, it means the lock handing is wrong; then fix the handing correctly and verify again.
• Verify the inside lever handle comes freely to horizontal rest position after being activated. If not, re-align lock on the
door.
ASM and cylindrical latch European lock case

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
