Dormakaba Saffire LX Installation Instructions

Saffire LX PK3704_T 02-19 15
4 Installation Steps

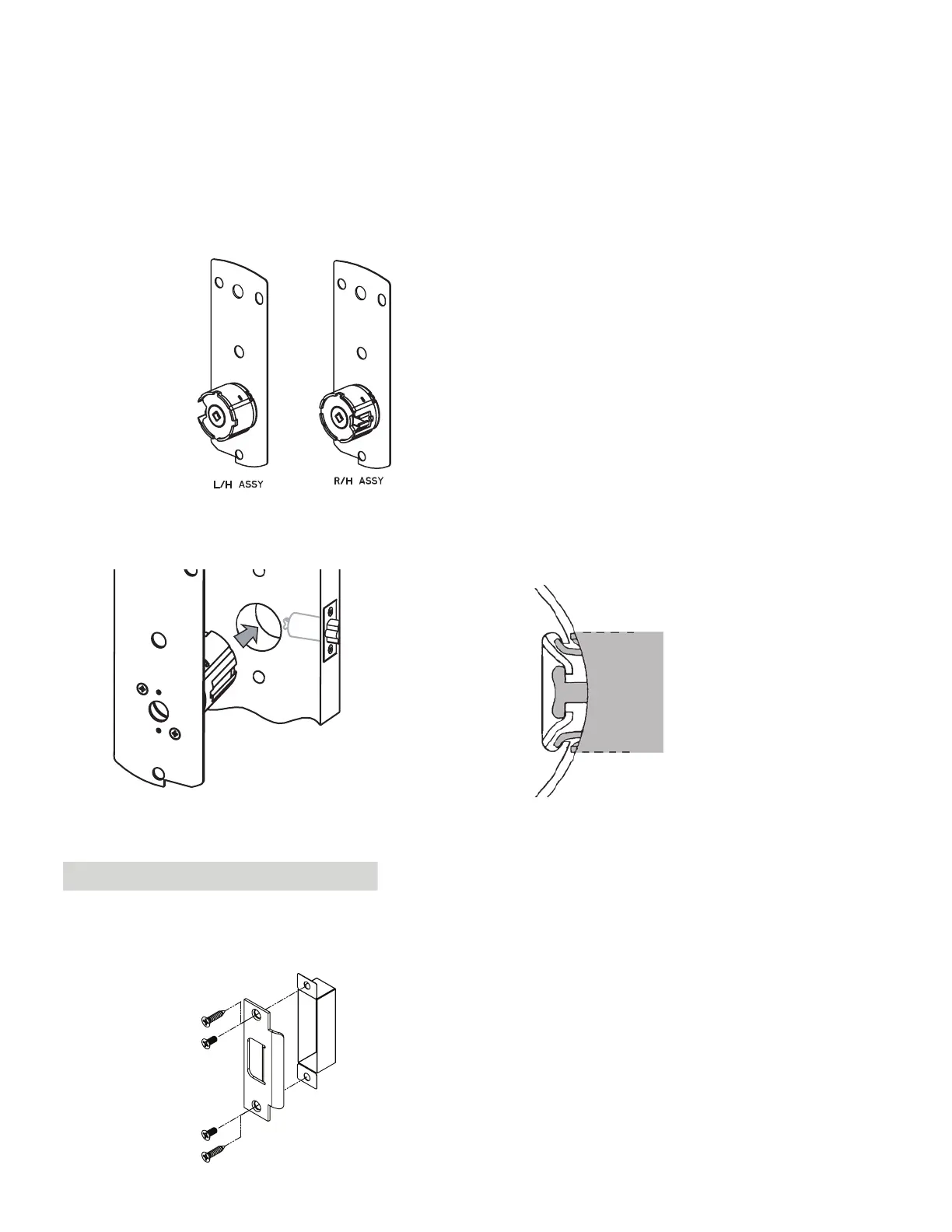

4.7. Install the cylindrical latch models (if applicable) (Continued)
• Make sure the handing is correct. If not, reinstall the cylindrical unit for proper handing.
• Install the cylindrical unit from the outside of the door toward the inside, in order to engage the latch as illustrated
below.
(outside)
Cylindrical unit
Latch
• Install the strike and the dust box on the door frame.
CAUTION
WARNING
IMPORTANT
Use only the strike and strike box supplied. The use of non-approved parts will result in a functionality problem and may void
the product warranty.
ASA Strike

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
