Dormakaba Saffire LX Installation Instructions

Saffire LX PK3704_T 02-19 13
4 Installation Steps

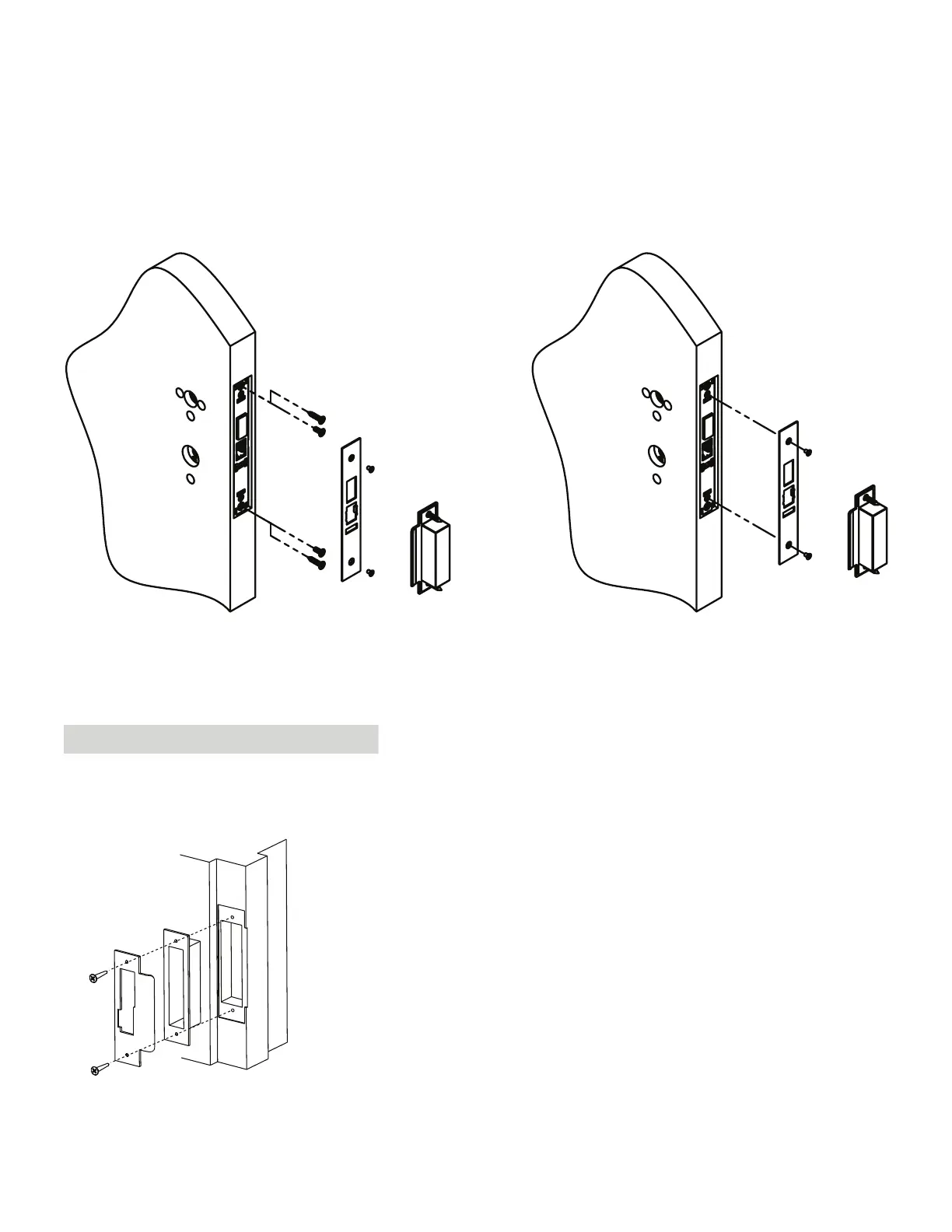

• Use metal or wood screws depending on door material to secure the mortise.
• Re-install the face plate with its two screws.
• Install the strike and the dust box on the door frame.
CAUTION
WARNING
IMPORTANT
When strike is installed on wood frames under one inch (1”) thick, wood screws supplied are not adequate. Use screws of
appropriate length to engage the structural stud behind the frame. Use only the strike and dust box supplied. Use of non-
approved parts may void the product warranty.

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
