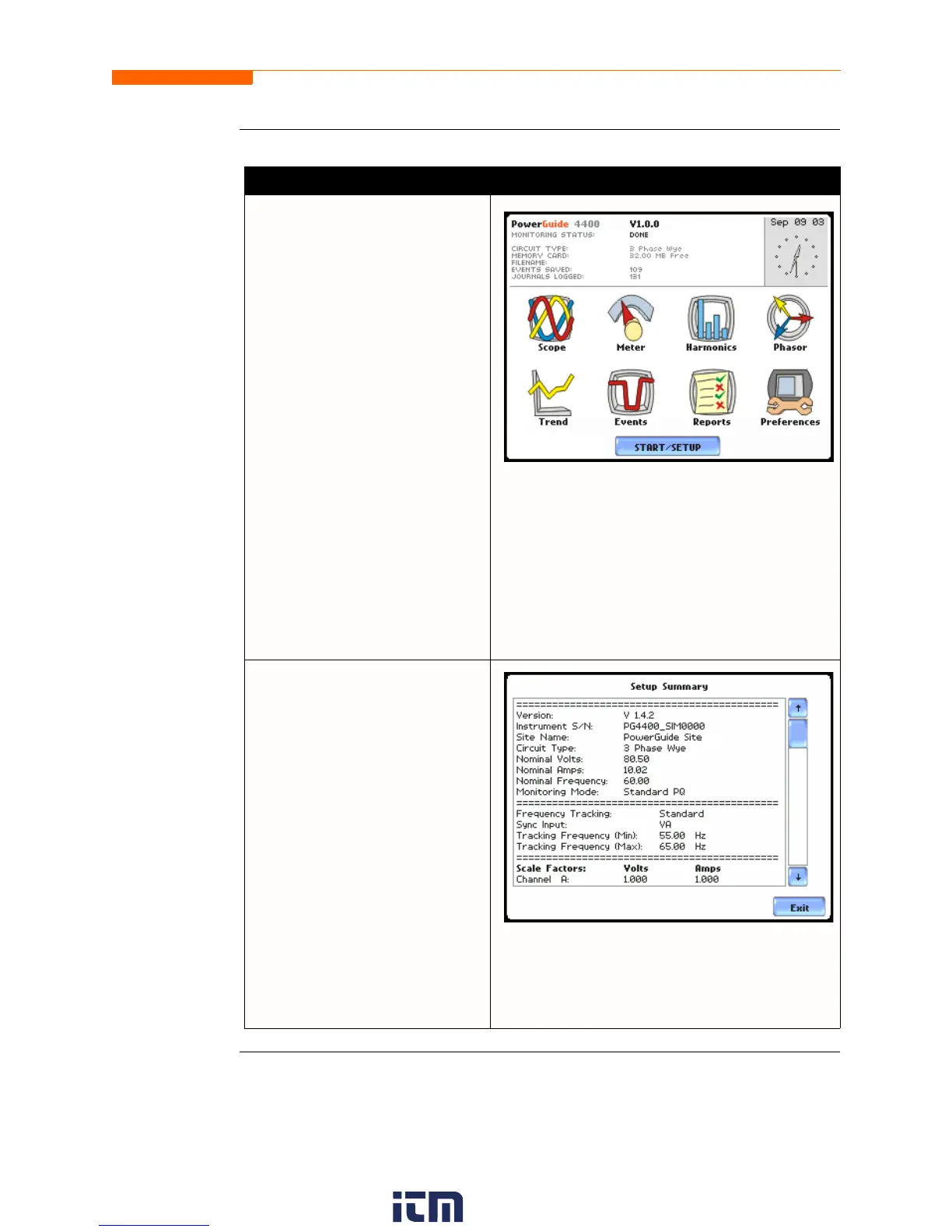

5-27
CH 5/ Start Menu
Start/Stop
monitoring
(continued)
Action... Result...
STEP 4: When monitoring ends,
the message MONITORING
STATUS: DONE appears on
screen (see NOTES).
To capture a new set of data or
to edit threshold settings, press
Start. The Start Menu screen
will be displayed. Go to page
5-2.
To view recorded data, press
Trend, Events, or Reports. Go
to Chapter 7 View Event Data.
MARK124bpg
NOTE 1: The message MONITORING
STATUS: DONE appears to indicate that
monitoring is completed and active recording is
disabled.
NOTE 2: The Events button will display data if
periodic measurements at regular intervals are
available or if thresholds have been crossed. See
Chapter 7 View Event Data.
STEP 5: Press View present setup
to dislay the parameter settings in
effect. Setup summary is
available for review before,
during, and after monitoring.
•Press Up/Down arrow keys to
scroll the page up or down by
one line.
Press and drag the scroll bar to
move the page up or down.
When done reviewing the
Setup Summary, press Exit.
The screen will return to the
Stop Monitoring Menu options
on page 5-26.
MARK123bpg
