8-1
CHAPTER 8
Reports
Overview
Report types

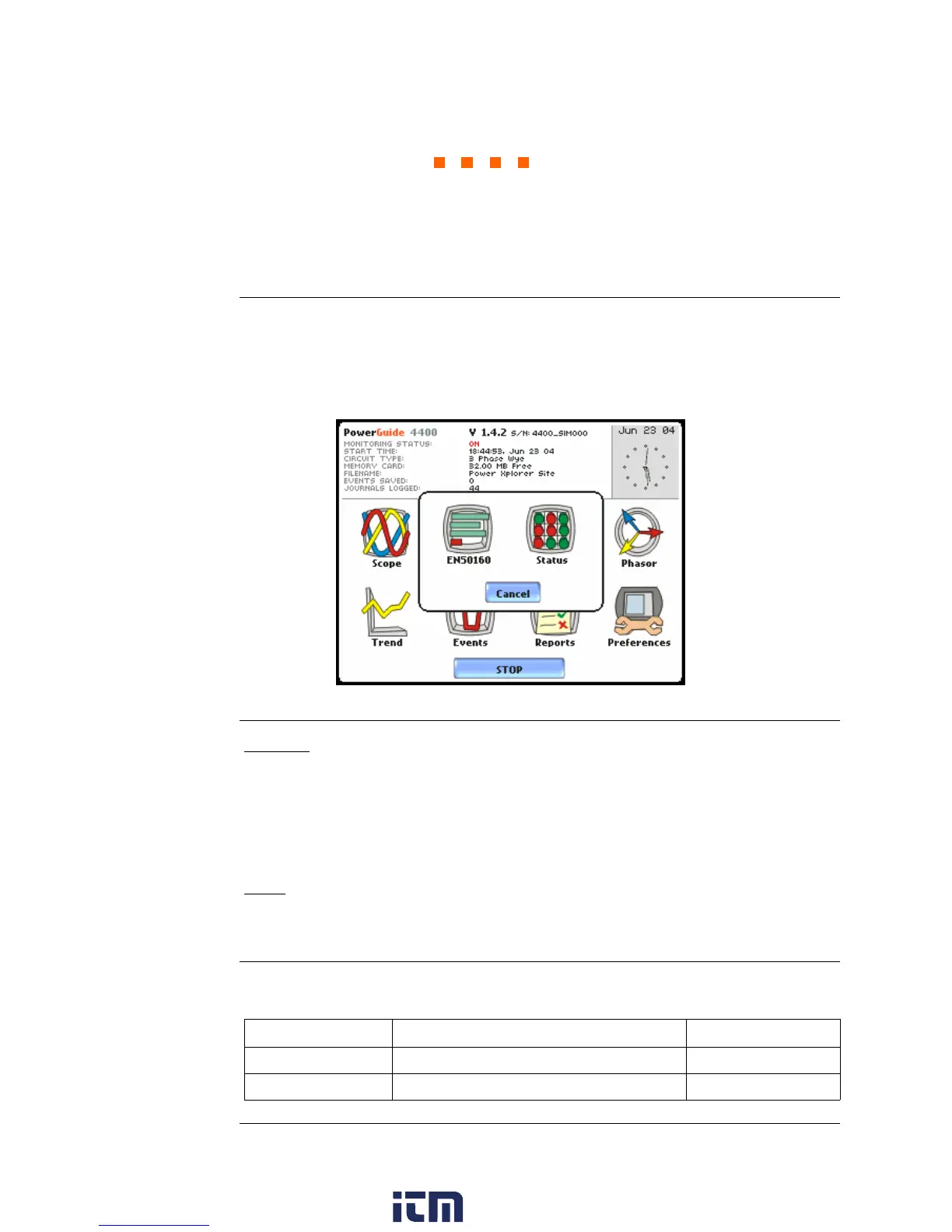

Users have the option to view QOS compliance reports in two ways: via EN50160 or
Status. Each report has their own method of presenting compliance data. Each also
differs on the length of evaluation period to monitor compliance. From the Home
screen, press Reports.
View Reports
options
EN50160
displays statistical reports on QOS compliance. Statistical data is calculated
on the required parameters specified in EN50160 over a one week interval to produce a
PASS/FAIL decision of compliance. The standard monitoring period is one complete
week, beginning Sunday 00:00 (midnight). Monitoring periods of less than one week
will render an evaluation status that is Incomplete and compliance marked as
Undetermined. Press EN50160 to access the EN50160 statistical reports.
Status
displays meter data (or event count) in a 2x2, 3x3, or 4x4 matrix. The
annunciator panel is also color coded to indicate whether the parameter is within limits.
The elements of the matrix are linked to the journal plot screen.
In this chapter
This chapter covers the following topics.
Section
Topic See Page
A EN50160 8-2
B Status Report in Annunciator Panel 8-16
