3-2
Overview
Section A
Scope Mode
Overview
Introduction
Scope mode allows you to view real-time voltage and current waveforms for up to
eight channels simultaneously.

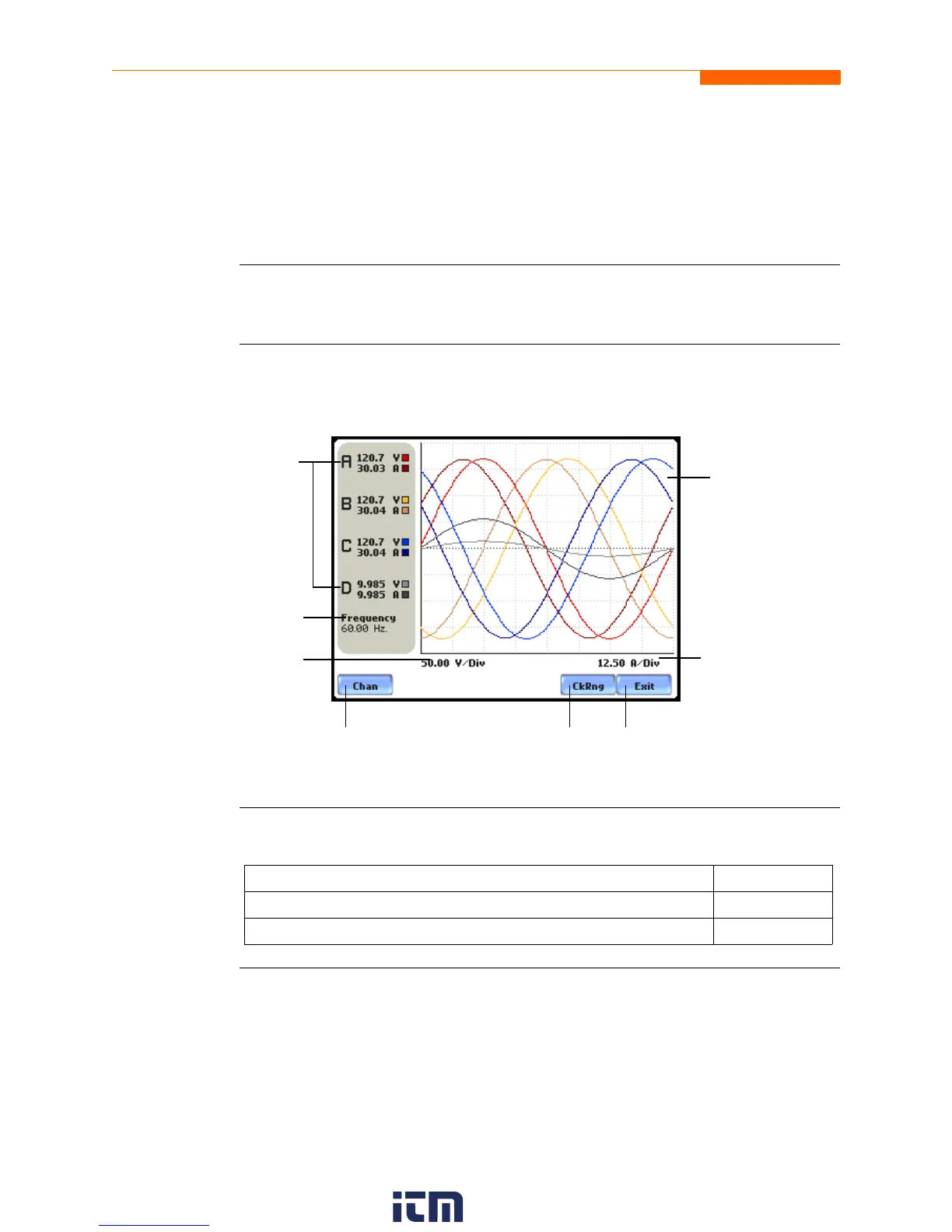

Scope mode
screen
The Scope mode screen can be displayed by pressing the Scope key on the Home
screen.
In this section
The following topics are covered in this section.
Topic See Page
Turning Channels On/Off 3-3
Checking Input Range 3-4
Volts/Amps
channel labels
and RMS values
for displayed
waveforms
Voltage scale
Current scale
Frequency
Display one cycle
of selected
waveforms which
are scaled relative
to the largest peak
value. V & I are
scaled separately.
Turn channels on/off
(p. 3-3)
Show channels input
range (p. 3-4)
MARK201
Return to Home screen
