Dranetz PowerGuide 4400 User Manual

6-13
CH 6/ Advanced Setup Options

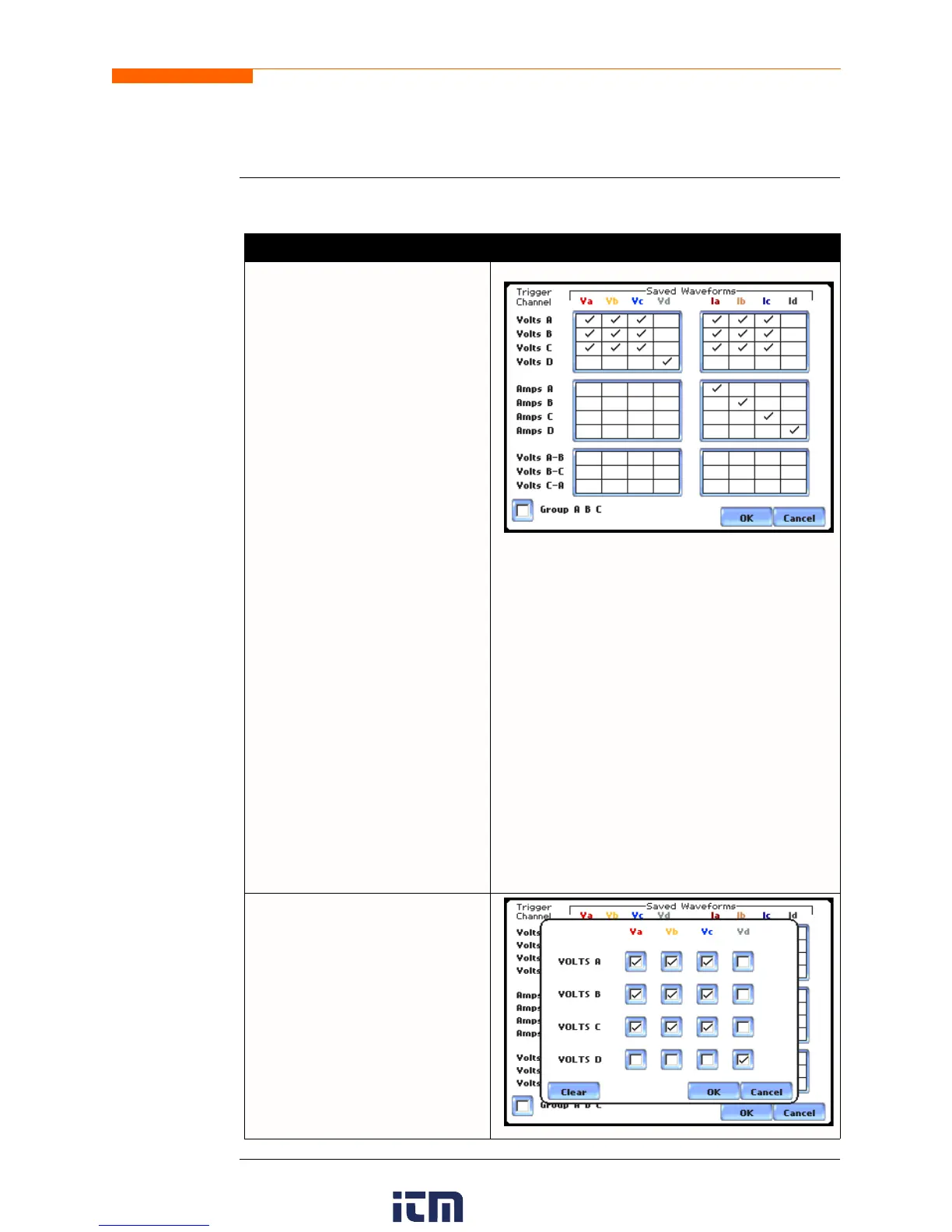

Waveform Capture
Trigger channel
setup
The 4400 allows users to set the trigger channels/parameters for waveform capture.
Action... Result...
STEP 1: The checked fields show
the channels that will have
waveforms recorded should a
trigger occur. This cross-trigger
function prevents recording of
meaningless data from unused
(disabled) channels.
• Press to select the Volts or
Amps channel matrix. The
channels selected for the matrix
will be displayed. Each matrix
assigns a different group to
trigger and save. See NOTE
describing the characteristics of
each channel matrix.
Check/Uncheck a channel field
to enable/disable channel for
waveform capture. Proceed to
Step 2.
•Press OK to accept new trigger
channel settings and return to
Advanced Options menu.
•Press Cancel to retain previous
trigger channel settings and
return to Advanced Options
menu.
•Press Group A B C to set
identical matrix for Channels
A, B and C.
MARK112_207
NOTE:
First row channel selection: When individual
Vo l t s ( V
A
, V
B
, V
C
, V
D
) trigger, save waveform
data for the checked channels under “Saved
Waveforms”.
Second row channel selection: When Amps (I
A
,
I
B
, I
C
, I
D
) trigger, save waveform data for the
checked channels under “Saved Waveforms”.
Third row channel selection: When Volts phase-
to-phase settings (V
A-B
, V
B-C
, V
C-A
) trigger,
save waveform data for the checked channels
under “Saved Waveforms”.
STEP 2: Depending on the matrix
selected, press to check/uncheck
the trigger channel for waveform
capture.
•Press Clear to reset channel
matrix. The previous channel
settings will be cleared.
MARK112_208
