6-21
CH 6/ Advanced Setup Options
EN50160
optional settings
(continued)
Refer to Chapter 8 Reports for a detailed discussion of the EN50160 compliance bar
charts and statistical reports.
Action... Result...

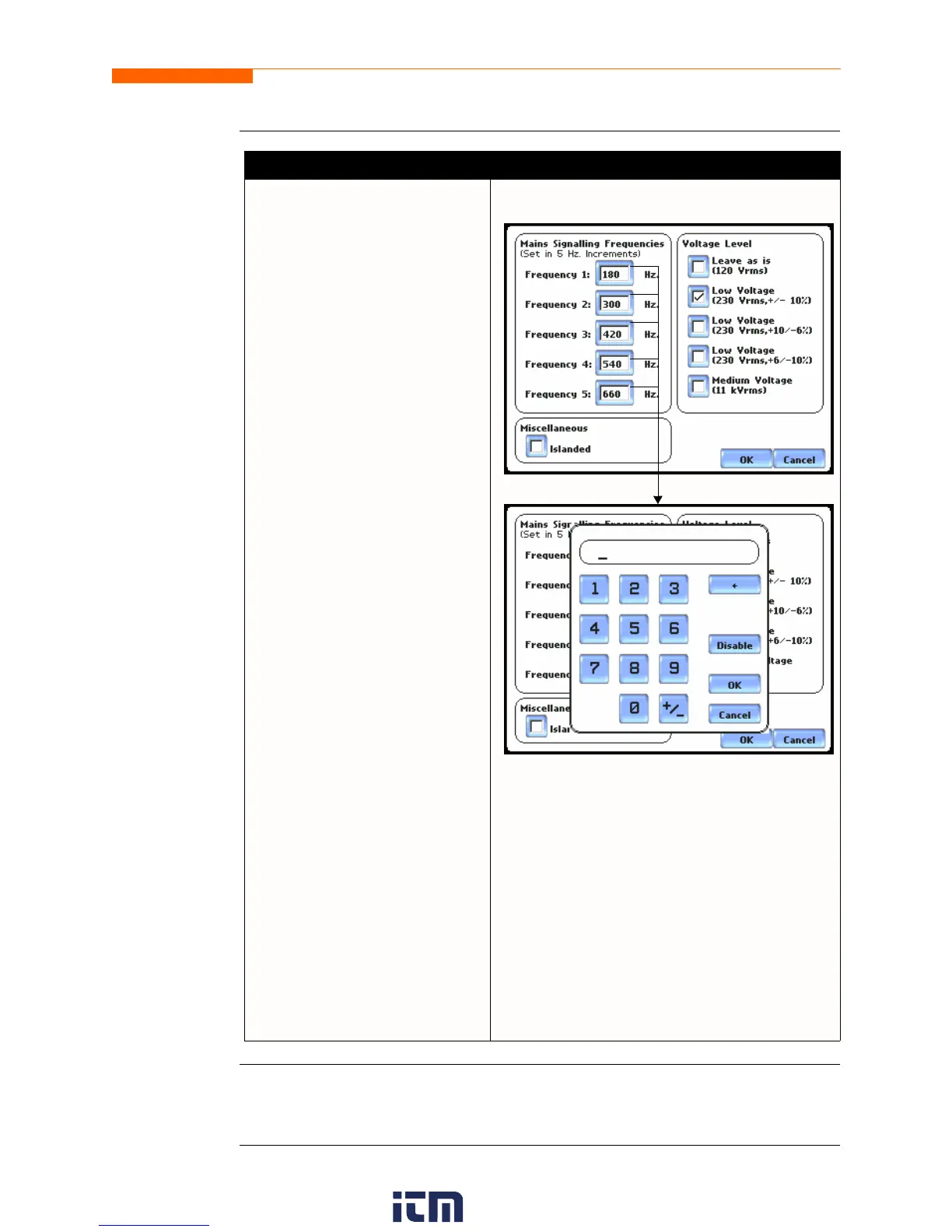

STEP 2: EN50160 Options allow
you to define up to five frequency
signals set in 5 Hz resolution.
Mains signalling compliance or
non-compliance is determined by
calculating/adding the status of
each of the defined frequencies.
• To modify frequency settings
for EN50160 monitoring, press
the desired frequency field. Use
the numeric keypad to enter
new frequency values.
• Press to select from the
following EN50160 monitoring
voltage levels: Leave as is (120
Vrms); Low Voltage (230
Vrms, +/-10%); Low Voltage
(230 Vrms, +10/-6%); Low
Voltage (230 Vrms, +6/
-
10%); Medium Voltage (11
kVrms)
. LV is defined as
<1kV nominal. MV is 1kV to
35kV nominal.
• Press to enable/disable
miscellaneous option Islanded.
Islanded means isolated from
the power grid. Islanded is
disabled by default, indicating
that the system being
monitored is synchronized to
grid.
•Press Next to accept changes in
EN50160 setup and return to
the EN50160 Advanced
Options screen.
•Press Cancel to discard
changes in EN50160 setup and
return to the EN50160
Advanced Options screen.
MARK112c
MARK112d
