Packets passing through the WAN interface might be tagged or untagged with VLAN ID
number. It depends on the setting configured in this page for VLAN ID configured in WAN
>>General Setup>>Profile relates to the VLAN ID setting configured here.

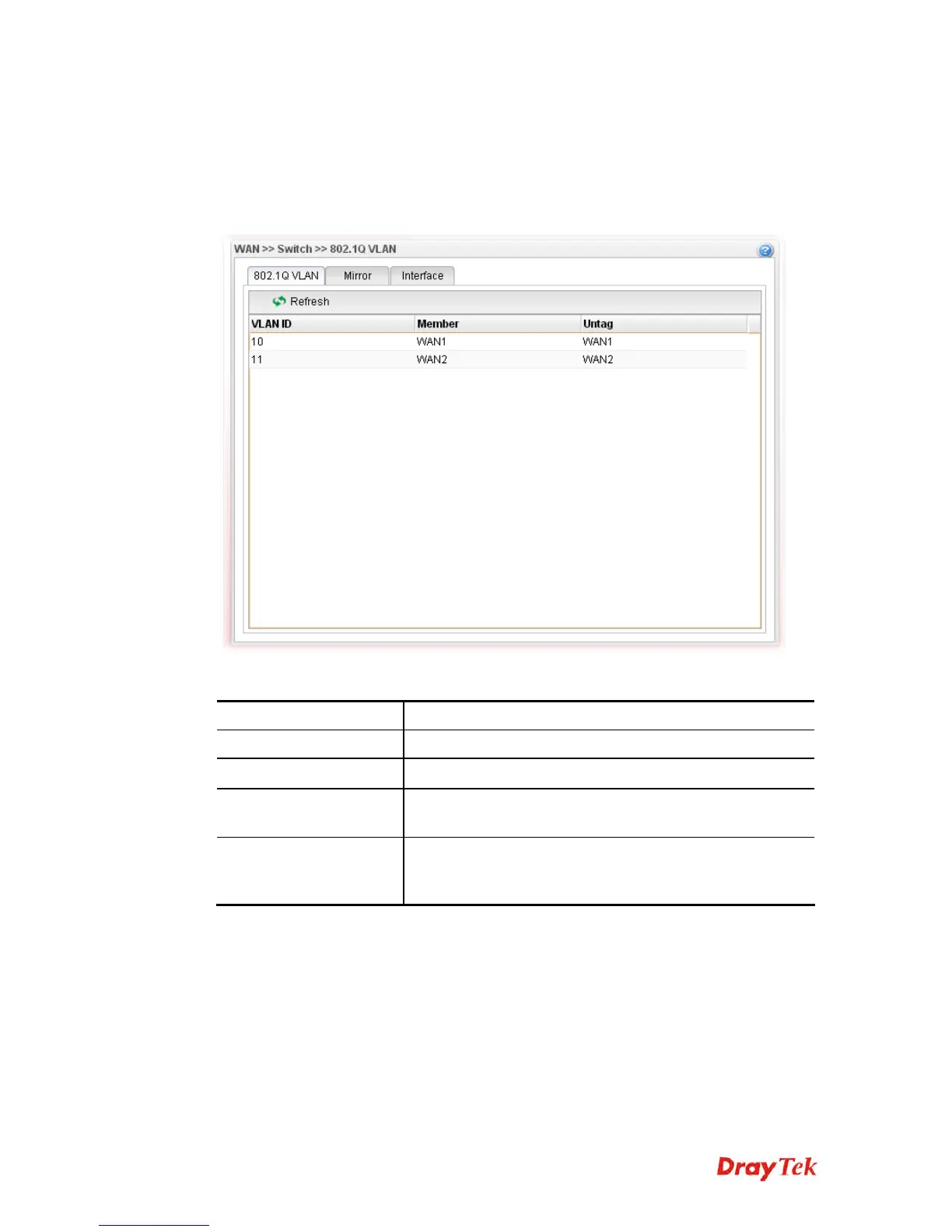

This page simply displays current status of 802.1Q VALN setting profiles.
Each item will be explained as follows:
Item Description
Refresh
Click it to reload this page.
VLAN ID
Display the VLAN ID number.
Member
Display number of the WAN interface for the packets
tagged with such VLAN ID number to pass through.
Untag
Display number of the WAN interface for the VLAN ID
will be untagged for packets passing through the WAN
interface selected.
