)VNJEJGJDBUJPOTZTUFNPWFSWJFX

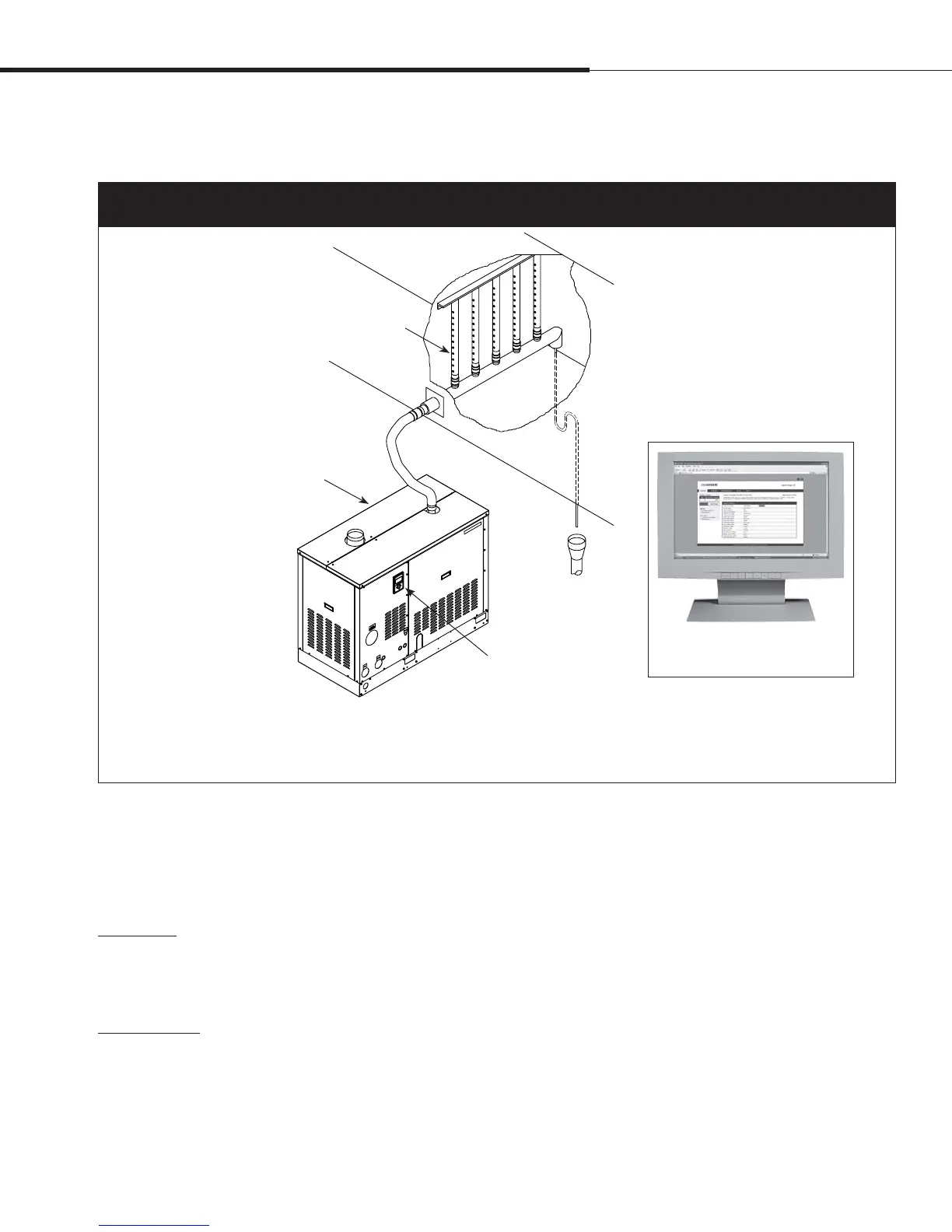

Figure 3-1:
Typical humidification system layout (GTS humidifier shown)
Vapor-logic4
keypad/display
Humidifier
OM-1220
Dispersion assembly
Every humidification system with a Vapor-logic4 controller has a keypad/display connection and an Ethernet connection for
connecting to a Web interface on a computer. A GTS humidifier is shown here, with keypad/display mounted on the cabinet.
Other types of DRI-STEEM humidifiers can have the keypad/display contained within a control cabinet or mounted remotely.
Connect a computer directly to the
Vapor-logic4 board, or through a
network, to use the Web interface
Operating conditions
The Vapor-logic4 main board and keypad/display must be operated
and stored within the limits listed below. Exceeding these limits
can result in poor display performance and/or damage to the unit.
Main board
Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)
Storage temperate: -40 °F to 185 °F (-40 °C to 85 °C)
Operating humidity range: <95% noncondensing
Keypad/display
Operating temperature: 32 °F to 158 °F (0 °C to 70 °C)
Storage temperate: -22 °F to 176 °F (-30 °C to 80 °C)
Operating humidity range: <95% noncondensing
