DSE Model 4110 AutoStart Operators Manual
16 057-022 4110 OPERATING MANUAL ISSUE 5.1 18/06/2007 JR
8.2 COOLING
The module has been designed to operate over a wide temperature range -30 to +70º C. Allowances should be
made for the temperature rise within the control panel enclosure. Care should be taken NOT
to mount possible
heat sources near the module unless adequate ventilation is provided. The relative humidity inside the control
panel enclosure should not exceed 95%.

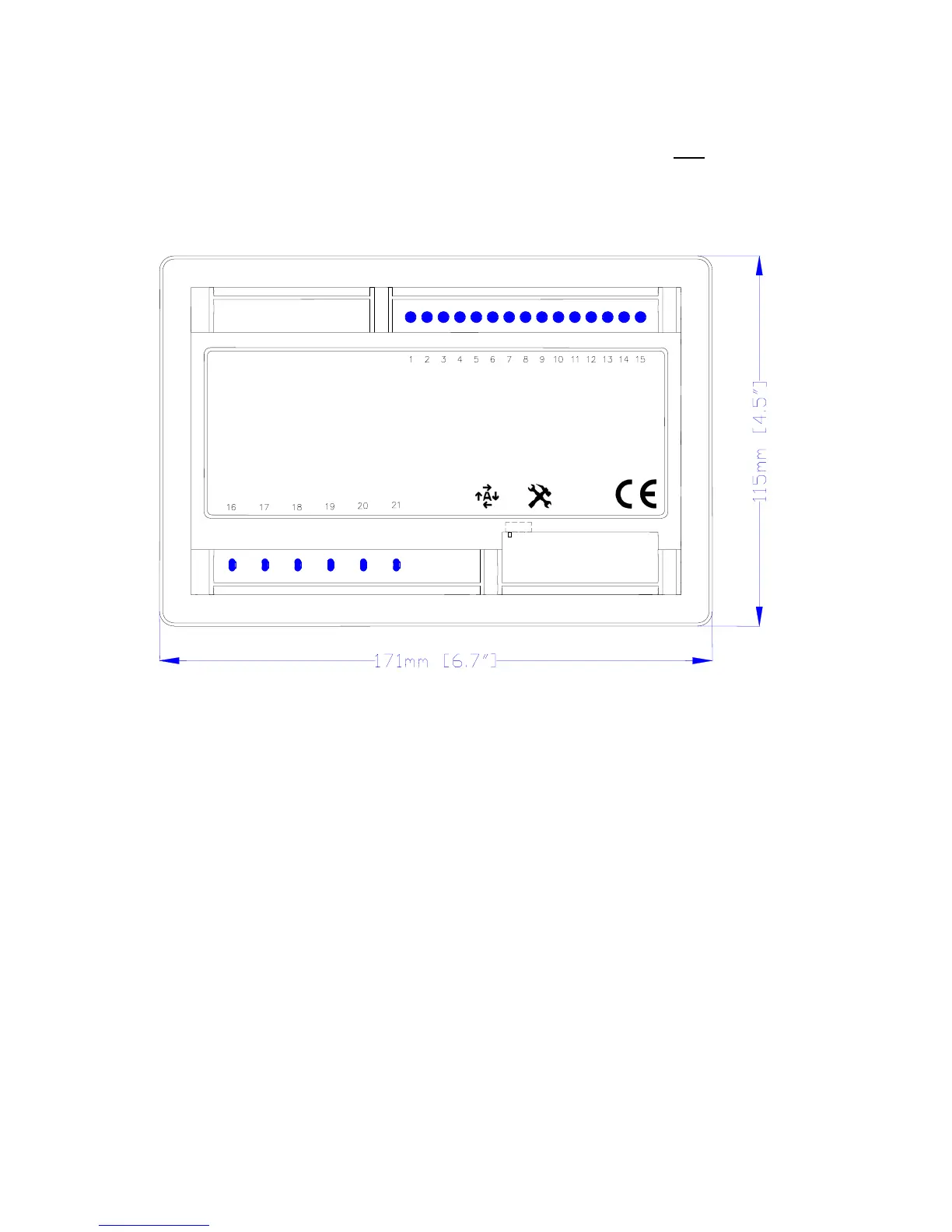

8.3 UNIT DIMENSIONS
FIG 4A
