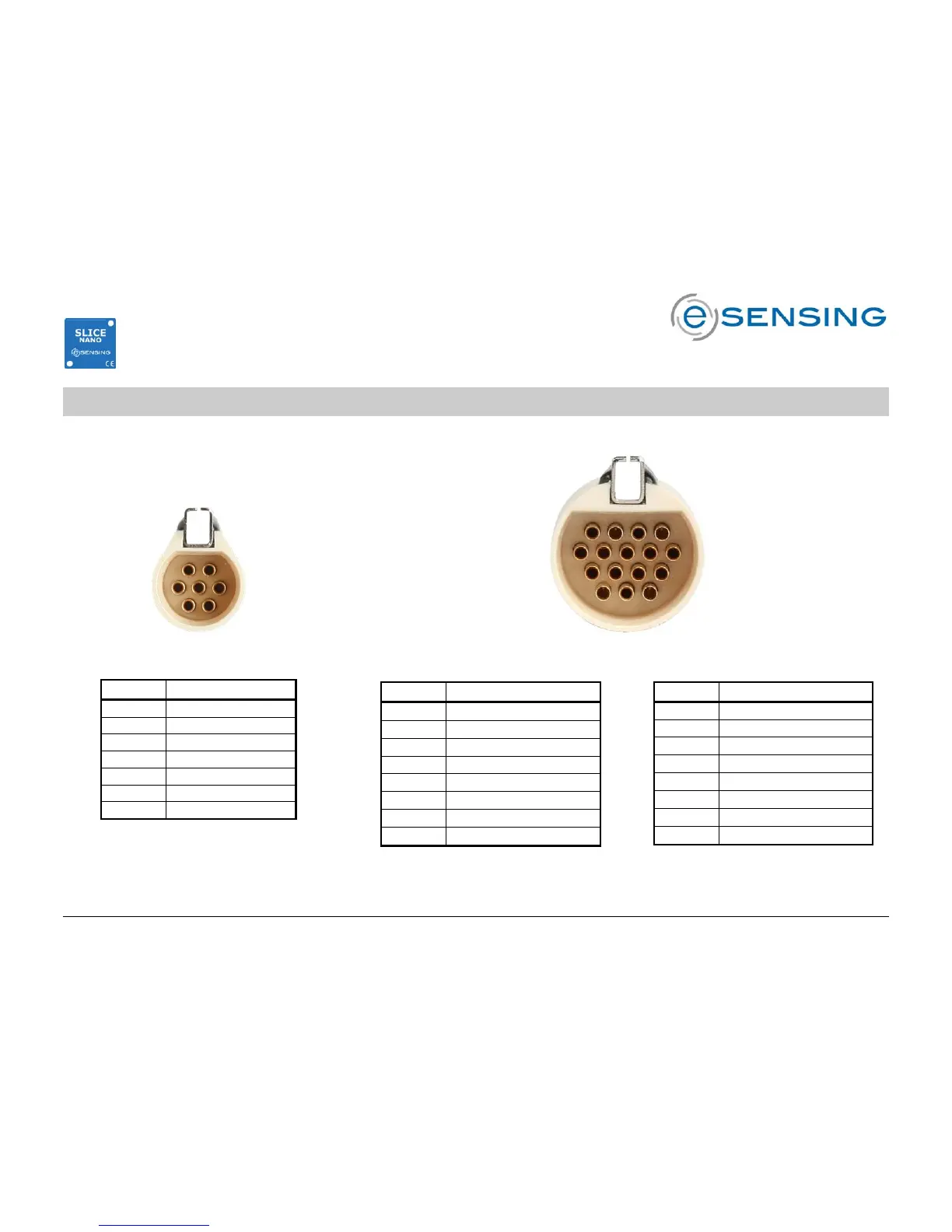

SLICE NANO Bridge Pin Assignments support@dtsweb.com
July 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved
Channels 1, 2 and 3*
(looking into the connector)
Mating connector: DTS P/N S-MCP-07
Pin Function
1 + Sig
2 - Sig
3 + Ex
4 + ID
5** - Ex
6** - ID
7** Shield
* Three connectors; cables 6, 10
and 14 cm in length
** Pins 5, 6 and 7 are common
Pin Function
1
+ Sig (Ch 1)
2
+ ID (Ch 1)
3
- Sig (Ch 2)
4
+ Sig (Ch 2)
5
- Sig (Ch 1)
6
+ Ex (Ch 1)
7
- Ex (Ch 1)
8
+ Ex (Ch 2)
*** One connector; cable 10 cm in length
Pin Function
9
+ ID (Ch 2)
10
+ Sig (Ch 3)
11
+ Ex (Ch 3)
12
- Ex (Ch 3)
13
- Ex (Ch 2)
14
- Sig (Ch 3)
15
+ ID (Ch 3)
16
- ID (Ch 1, 2, 3)/Shield
1
2
3
5
6
7
Channels 1-3***
(looking into the connector)
Mating connector: DTS P/N S-MCP-16
1
4
5
9
10
13
14
16
