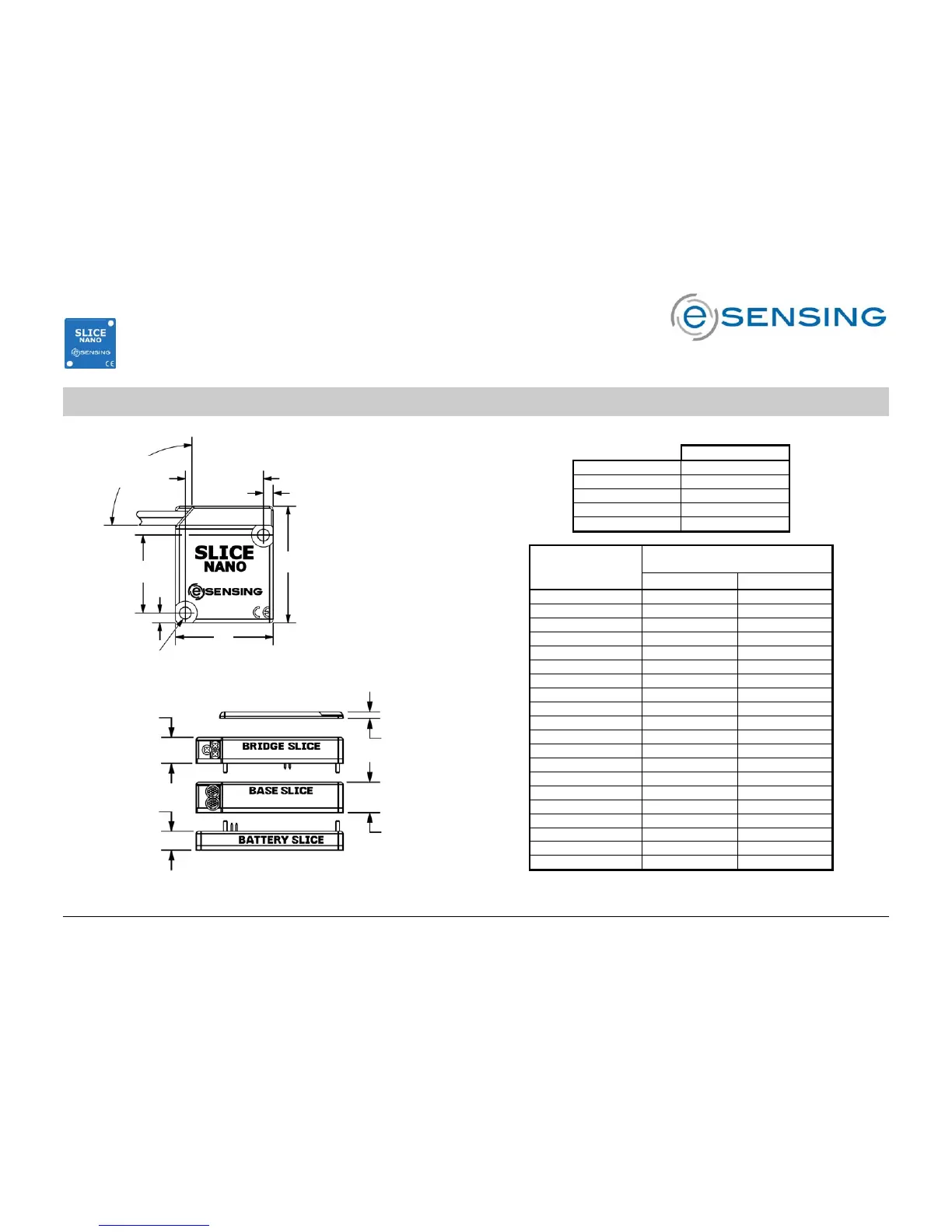

SLICE NANO Mechanical Specifications support@dtsweb.com
June 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved
Ø3.2 mm (0.125 in) mounting thru holes x2
Accepts M2.5 (loose fit); 4-40 (free fit); M3 (tight fit)
Weight
Lid ~2.6 grams
Bridge (1 conn) ~12.6 grams
Bridge (3 conn) ~13.8 grams
Base ~14.2 grams
Battery ~7 grams
Mounting Screw Length (min)
BH or SHC
Total Stack Height
mm (inch)
M2.5*/M3** 4-40**
13.5 (0.531) 18 mm 3/4"
17.5 (0.689) 22 mm 7/8"
19 (0.748) 25 mm 1"
23 (0.906) 30 mm 1-1/8"
24.5 (0.965) 30 mm 1-1/8"
28.5 (1.122) 35 mm 1-1/4"
30 (1.181) 35 mm 1-3/8"
34 (1.339) 40 mm 1-1/2"
35.5 (1.398) 40 mm 1-3/4"
39.5 (1.555) 45 mm 1-3/4"
41 (1.614) 45 mm 1-3/4"
45 (1.772) 50 mm 2"
46.5 (1.831) 60 mm 2"
50.5 (1.988) 60 mm 2-1/2"
52 (2.047) 60 mm 2-1/2"
56 (2.205) 60 mm 2-1/2"
57.5 (2.264) 70 mm 2-1/2"
61.5 (2.421) 70 mm 3"
63 (2.480) 70 mm 3"
67 (2.638) 70 mm 3"
Specifications may be revised without notice. Torque specs: * 3.9 in-lb (0.44 Nm); ** 5.2 in-lb (0.59 Nm)
