SLICE MICRO Pin Assignments support@dtsweb.com
July 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved

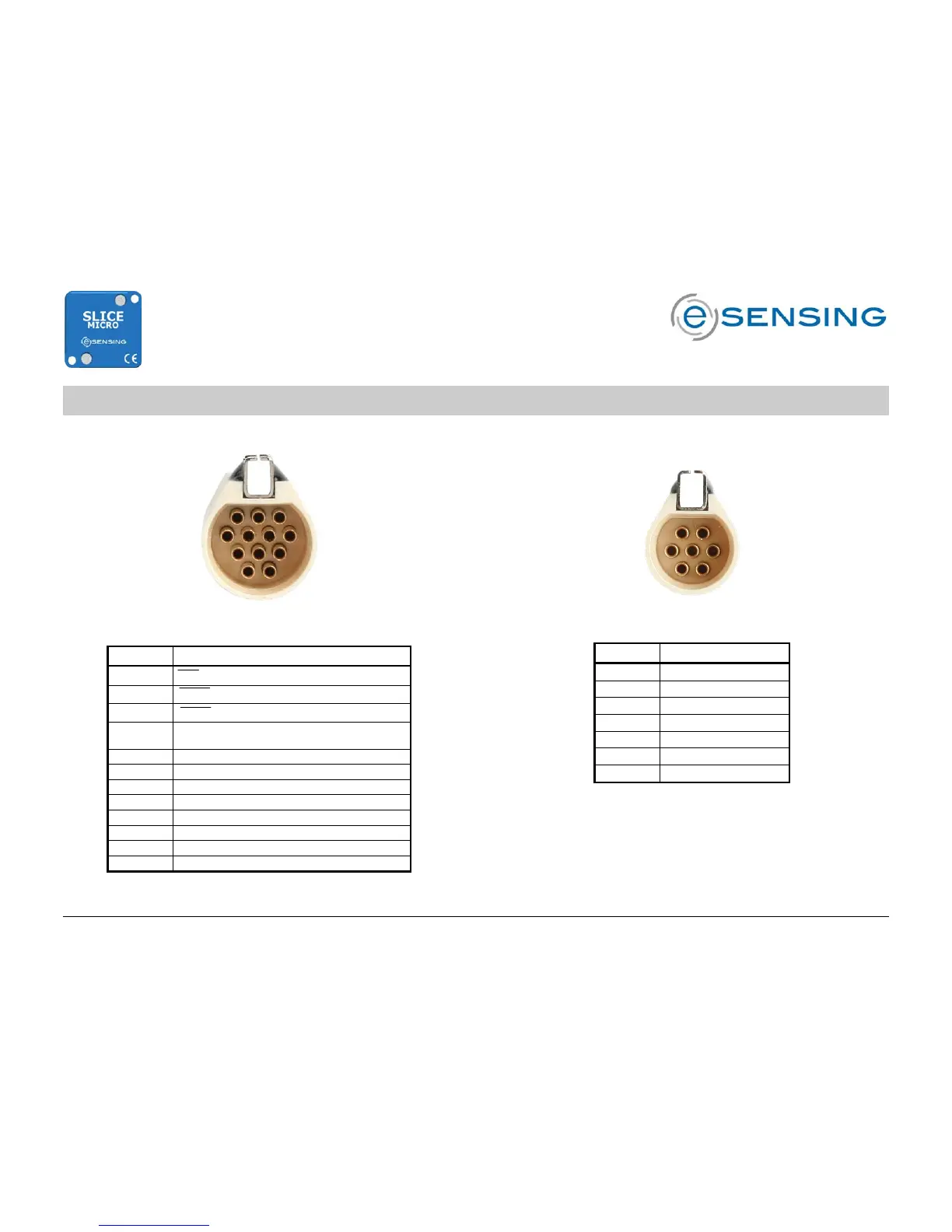

DOWN and UP* connectors for SLICE
MICRO Base
(looking into the connector)
Mating connector: DTS P/N S-MCP-12
Pin Function
1
On (contact closure input to ground)
2
Start (contact closure input to ground)
3
Event (contact closure input to ground)
4
Status output (5 V via 10K with respect
to ground)
5
7–15 VDC
6
7–15 VDC
7
Ground
8
Ground
9
USB_PWR
10
USB_DP
11
USB_DM
12
Ground
Channels 1, 2 and 3 for SLICE
MICRO Bridge
(looking into the connector)
Mating connector: DTS P/N S-MCP-07
Pin Function
1 + Sig
2 - Sig
3 + Ex
4 + ID
5* - Ex
6* - ID
7* Shield
* Pins 5, 6 and 7 are common
* to PC
