SLICE Distributor Pin Assignments support@dtsweb.com
December 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved
Pin Function
1
/PWR_ON
2
- Event
3
+ Event
4
RECORD_STATUS
5
CHARGE (2 A max)
6
Ground
7
Ground
8
+ID
Pin Function
9
START_RECORD
10
+ BAT
11
Ground
12
No connection
13
CHARGE_STATUS
14
+ BAT
15
EN_BAT_PWR
16
Start (contact closure input to ground)
9-20 VDC in; 10 A max

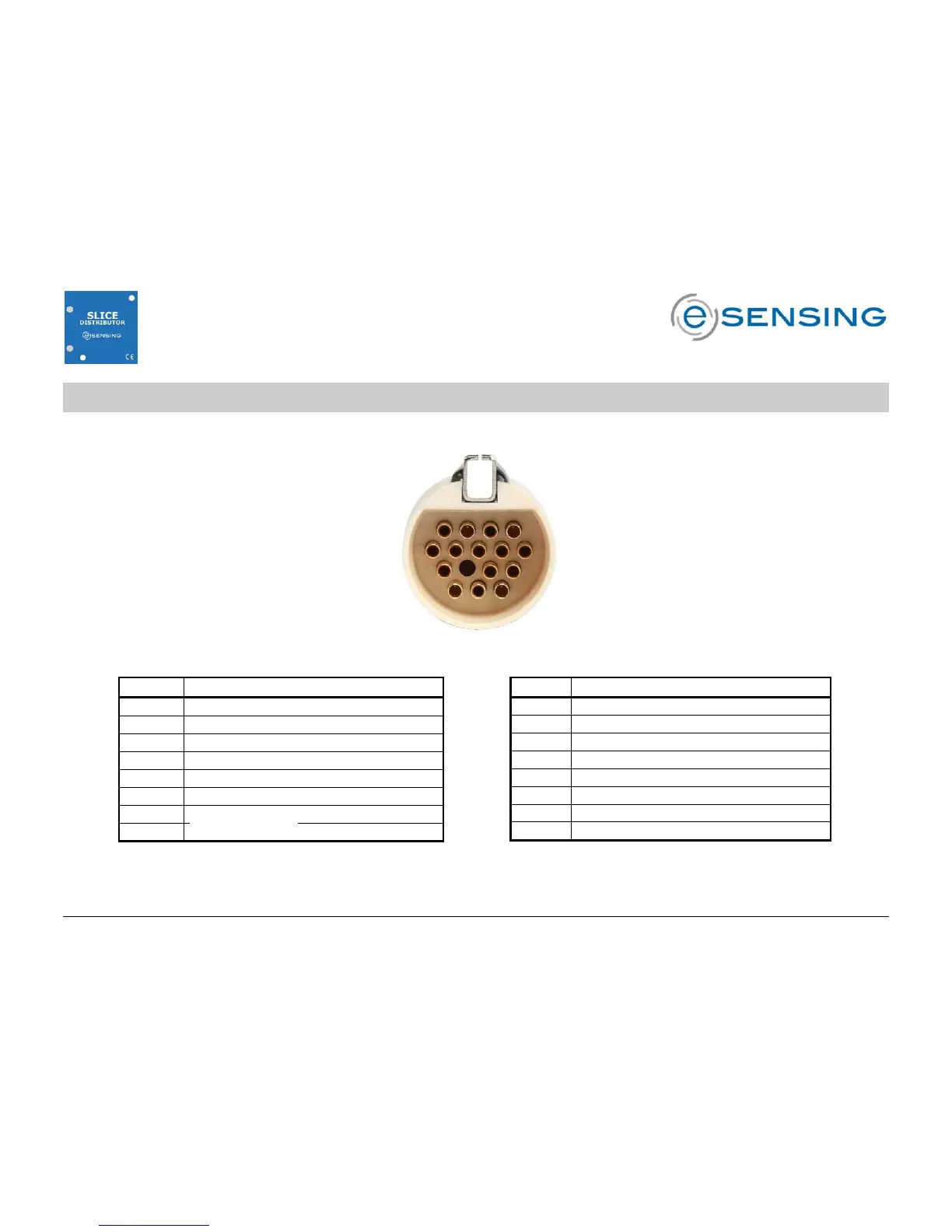

AUX connector
(looking into the connector)
Mating connector: DTS P/N S-MCP-16-SDA
1
4
5
9
10
13
14
16
