SLICE Distributor Pin Assignments (cont.) support@dtsweb.com
December 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved
Pin Function
1
/PWR_ON
2
- Event
3
+ Event
4
RECORD_STATUS
5
ON_STATUS
6
Ground
7
Ground
8
No connection
Pin Function
9
START_RECORD
10
+ V1
11
Ground
12
Tx+
13
Rx+
14
+ V1
15
Tx-
16
Rx-

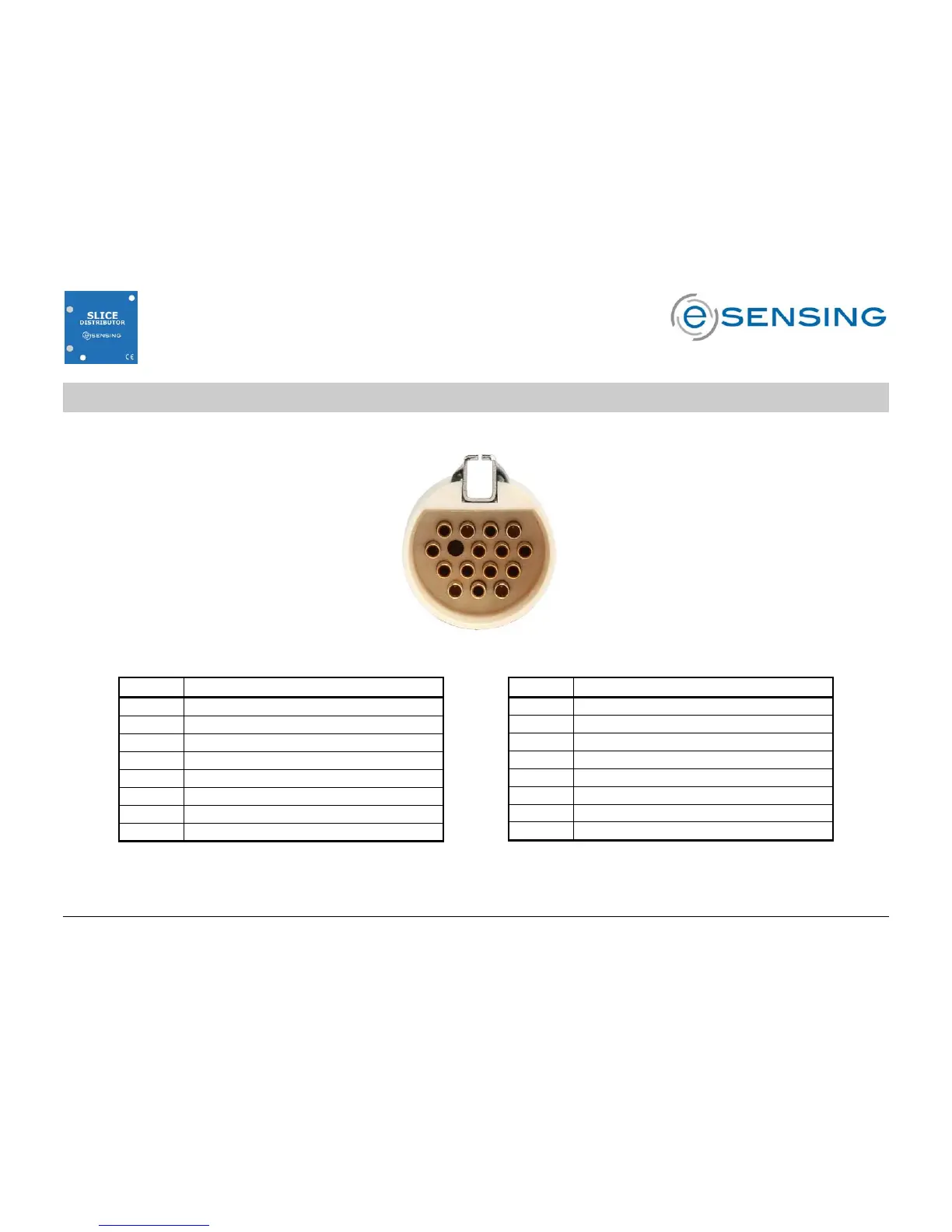

SYS connector
(looking into the connector)
Mating connector: DTS P/N S-MCP-16-SDX
1
4
5
9
10
13
14
16
