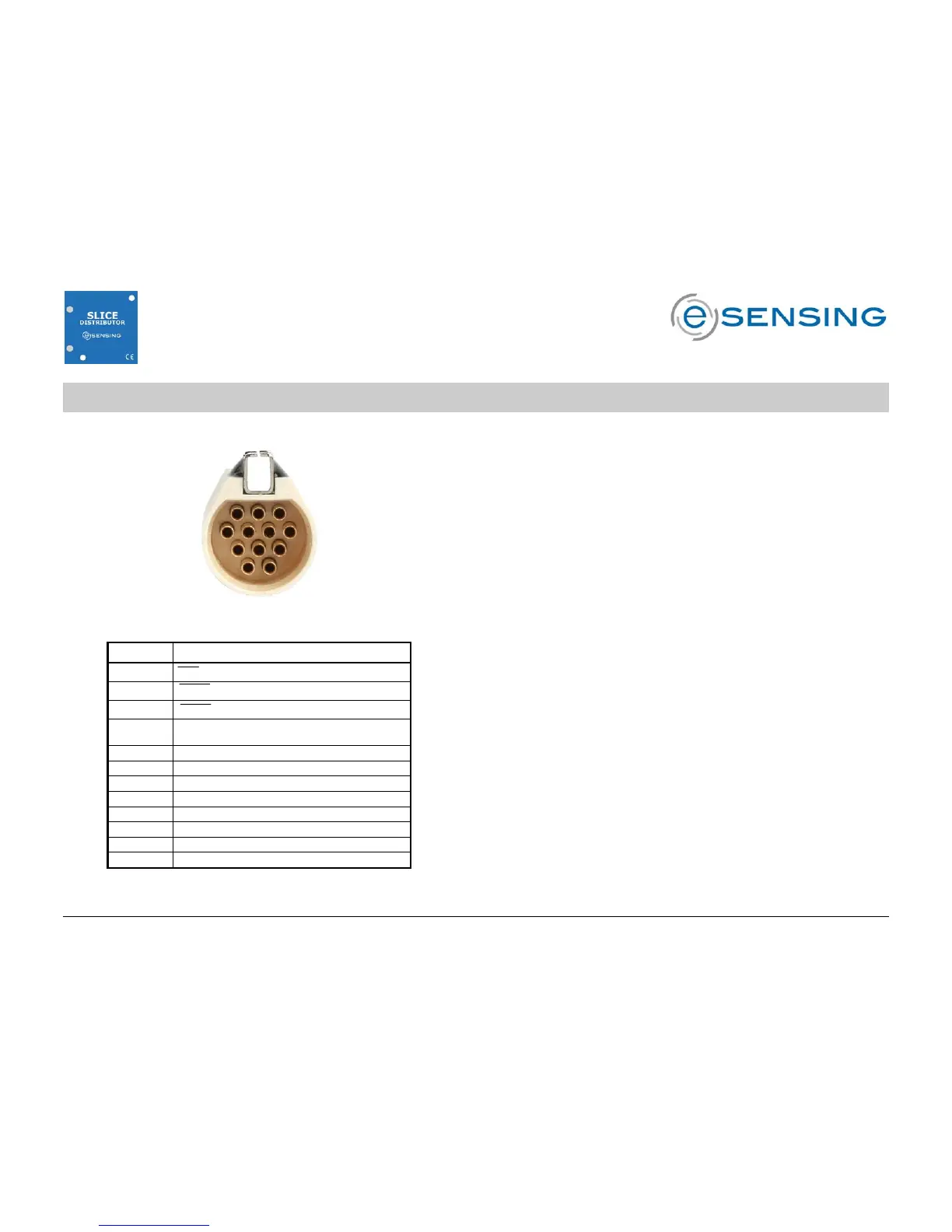

SLICE Distributor Pin Assignments (cont.) support@dtsweb.com
December 2009 ©Diversified Technical Systems, Inc. - All Rights Reserved
SLICE system connectors (1, 2, 3 and 4)
(looking into the connector)
Mating connector: DTS P/N S-MCP-12
Pin Function
1
On (contact closure input to ground)
2
Start (contact closure input to ground)
3
Event (contact closure input to ground)
4
Status output (5 V via 10K with respect
to ground)
5
7–15 VDC
6
7–15 VDC
7
Ground
8
Ground
9
USB_PWR
10
USB_DP
11
USB_DM
12
Ground
1
3
4
7
8
10
12
11
