DTS Z8 User Manual

Z8 LED Controller
15

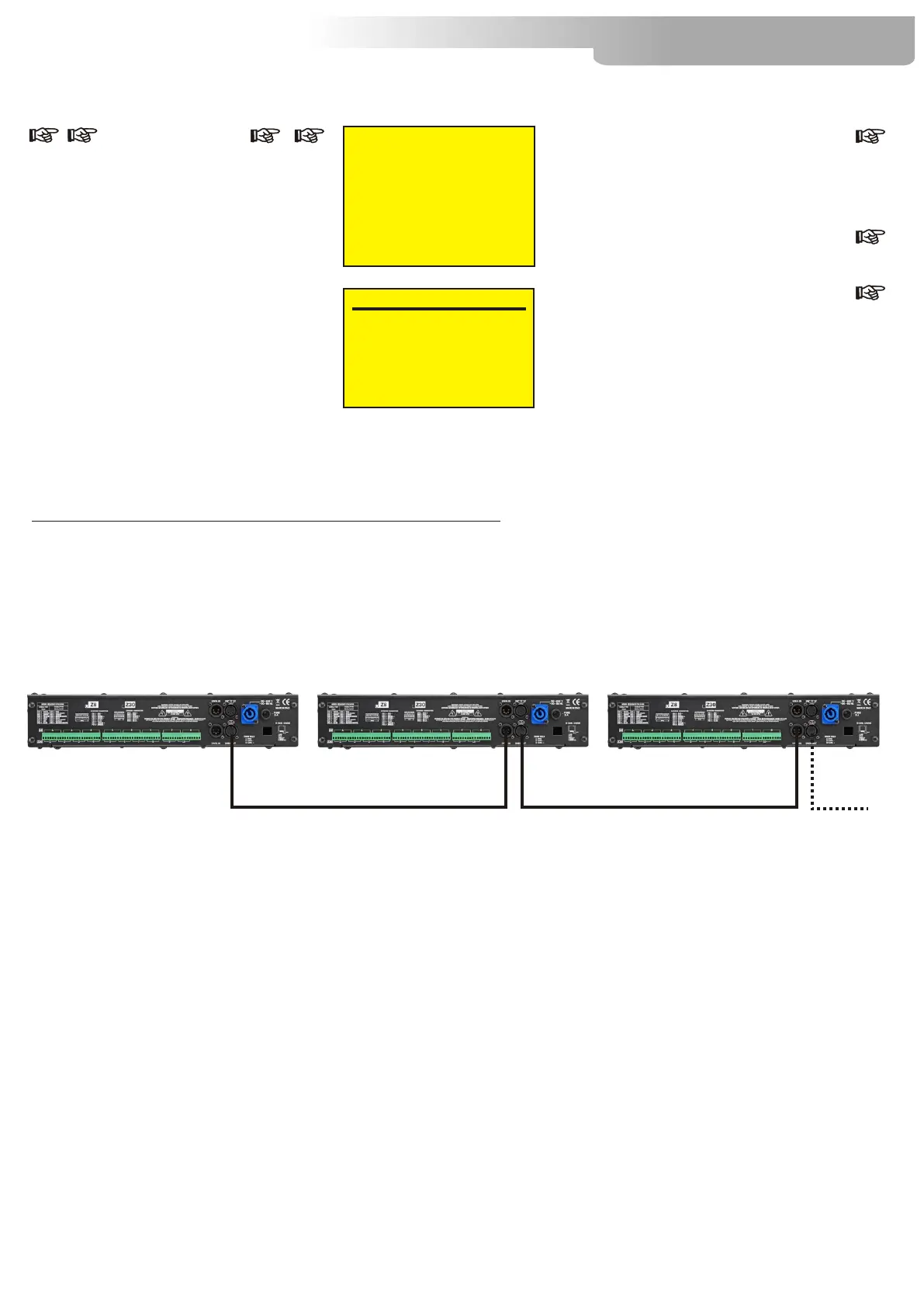

AUTOMATIC OPERATION (MASTER MODE):
Z8 can work in automatic mode without a DMX controller. First of all connect the projectors with a DMX
cable (picture below). A maximum quantity of 32 slave units can be connected to the same Master unit.
To activate Automatic mode on the first unit, use the menu to run through the different menus until
MODE SETTING appear, press ENTER, select Master mode Setup, press ENTER, than select Master
selection.
Now it is possible to choose between the different pre-programmed games (Master Chase, Master CUE,
Master White RGB). To confirm game activation press ENTER on the selected GAME.
The first unit that will work as a Master should be set in MASTER mode, the other units have to be set
in 10 channels DMX mode (MODE 10 CH) and the DMX address should be set at A001.
On the master unit it is possible to vary the Speed time for the colour changhing and the Wait time
between the steps ( Master Chase).
OUT
IN OUT
MASTER
IN
SLAVE1 SLAVE2
OUT
MEASURE
Measure
LIFETIME
Unit lifetime
LED Lifetime
Menu
Up-Down
ENTER Up-Down
ENTER
Lifetime\ voltage level \
temperature
LIFETIME
This menu show the total
UNIT LIFE TIME (reset not
possible) and the RGB life
TIME (reset possible)
VOLTAGE LEVEL
Internal voltage measure
TEMPERATURE
Internnal / External
temperature measure
5. MEASURE
1. Lifetime
2. Voltage level
3. Temperature
VOLTAGE LEVEL
Internal voltage measure
ENTER
TEMPERATURE
External temperature measure
ENTER
