DTS Z8 User Manual

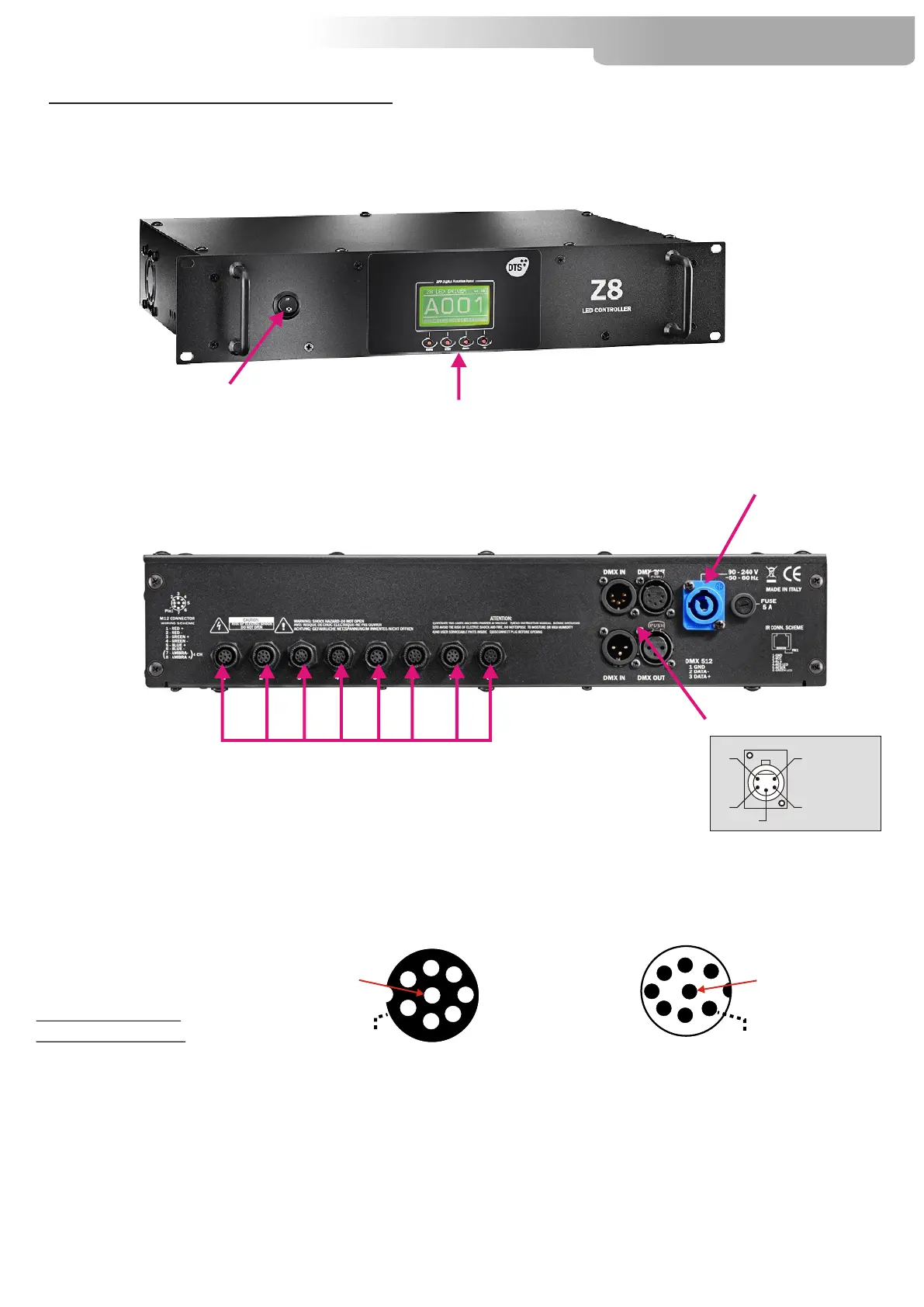

INPUT/OUTPUT CONNECTIONS
5
3
4 2
1
1=GND
2=DATA-
3=DATA+
DMX IN-OUT connectors
Mains 90-260 Vac
50-60 Hz
Powercon female panel
connector
Z8 LED Controller
8 x LEDs output
M12 Female panel connector
03.LA.075.V2 (M12 OUTPUT)
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -
Pin 7 = AMBER -
Pin 8 = AMBER +
8
M12 LED output
Female panel connector
M12 LED input
Male cable connector
Pin1
2
3
4
5
6
7
Pin1
2
3
4
5
6
7
8
8
Displays
Mains Switch
For application where IP65 rating is not necessary, Z8 LEDs cabling connection can be done with a
standard UTP B2 category 5E cable.
For IP65 rating application, D.T.S. reccomed the use of a IP65/68 cable as the
multipolar black outdoor cable (D.T.S. Code: 0509C062).
The Maximum distance between the Z8 and the last LED unit in the line should not exceed
meters FOS 100 RGBA / WHITE, FOS 33 RGBA / WHITE (3pcs on the same line).
The Maximum distance between the Z8 and the last LED unit in the line should not exceed 50 meters
TITAN all models, FOS 100 FULL COLOUR, FOS 33 FULL COLOUR (3pcs on the same line)
TIA/EIA 568-
4X2XAWG24
100
for:
for:
