DTS Z8 User Manual

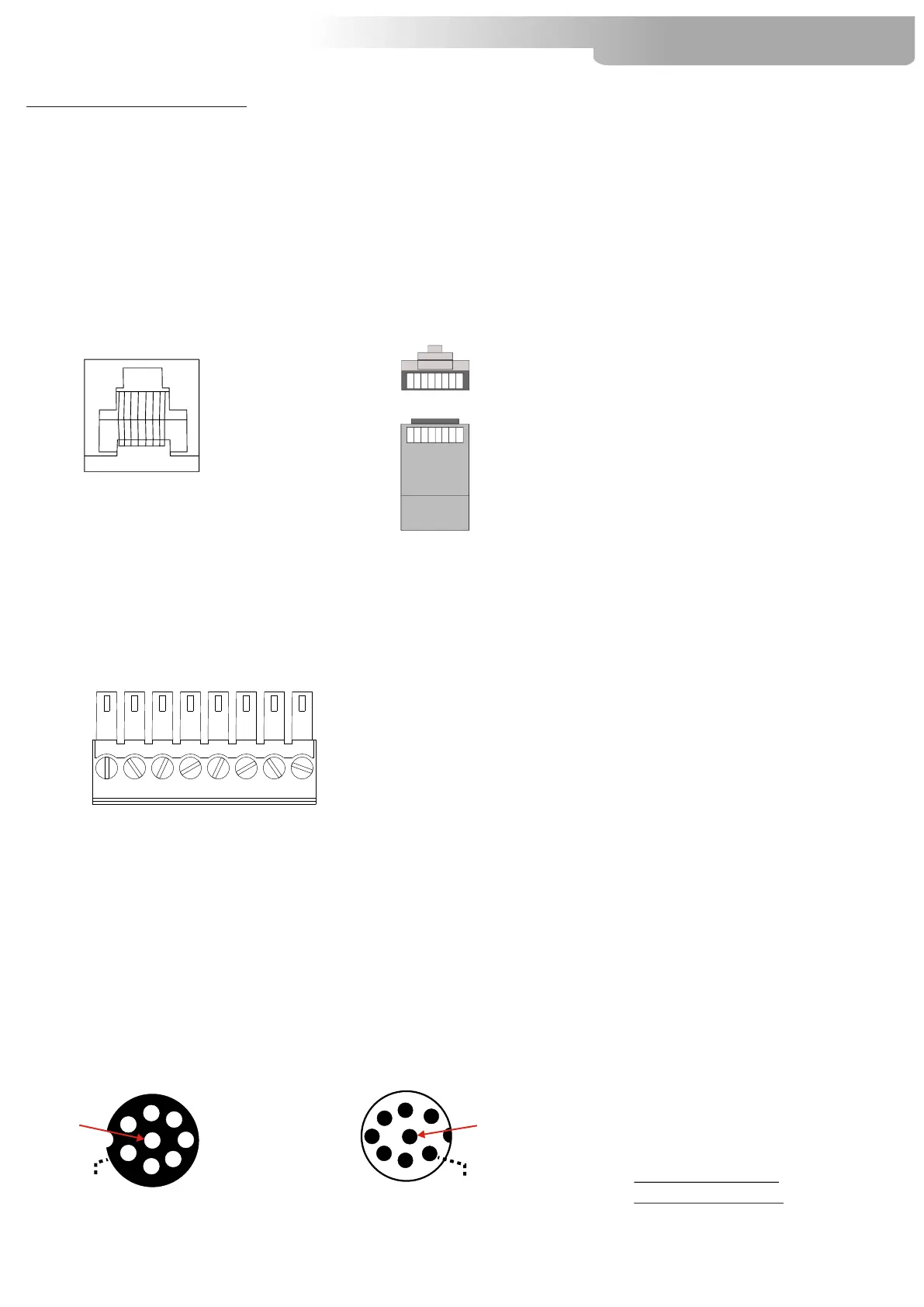

WIRING DIAGRAMS
Z8 is available in three versions with different LED output connectors:
RJ45 female connector (03.LA.074.V2), 8 poles plug-in screw connector (03.LA.080.V2)
and M12 connector (03.LA.075.V2).
Pin1
2
3
4
5
6
7
M12 LED input
Male cable connector
on board:
FOS 100 - FOS 33
TITAN
8
Pin1
2
3
4
5
6
7
M12 LED output
Female panel connector
on board :
Z8 LED
CONTROLLER
(03.LA.075.V2)
8
RJ45 LED input
male cable connector
on board:
HELIOS R / RA7 HEAD
LEDS
CONNECTOR PINOUT (Rj45)
LEDS
CONNECTOR PINOUT (M12)
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -
Pin 7 = AMBER -
Pin 8 = AMBER +
Z8 LED Controller
RJ45 Female
panel connector
on board :
Z8 LED
CONTROLLER
(03.LA.074.V2)
8 poles plug-in
screw connector
on board :
Z8 LED
CONTROLLER
(03.LA.080.V2)
LEDS
CONNECTOR PINOUT
8 poles plug-in
screw connector
24
8-pin Female (RJ45)
1
8
1
8
1
8
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -
Pin 7 = AMBER +
Pin 8 = AMBER -
8 poles plug-in screw connector
1---------PIN---------8
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -
Pin 7 = AMBER +
Pin 8 = AMBER -
