Z8 LED Controller

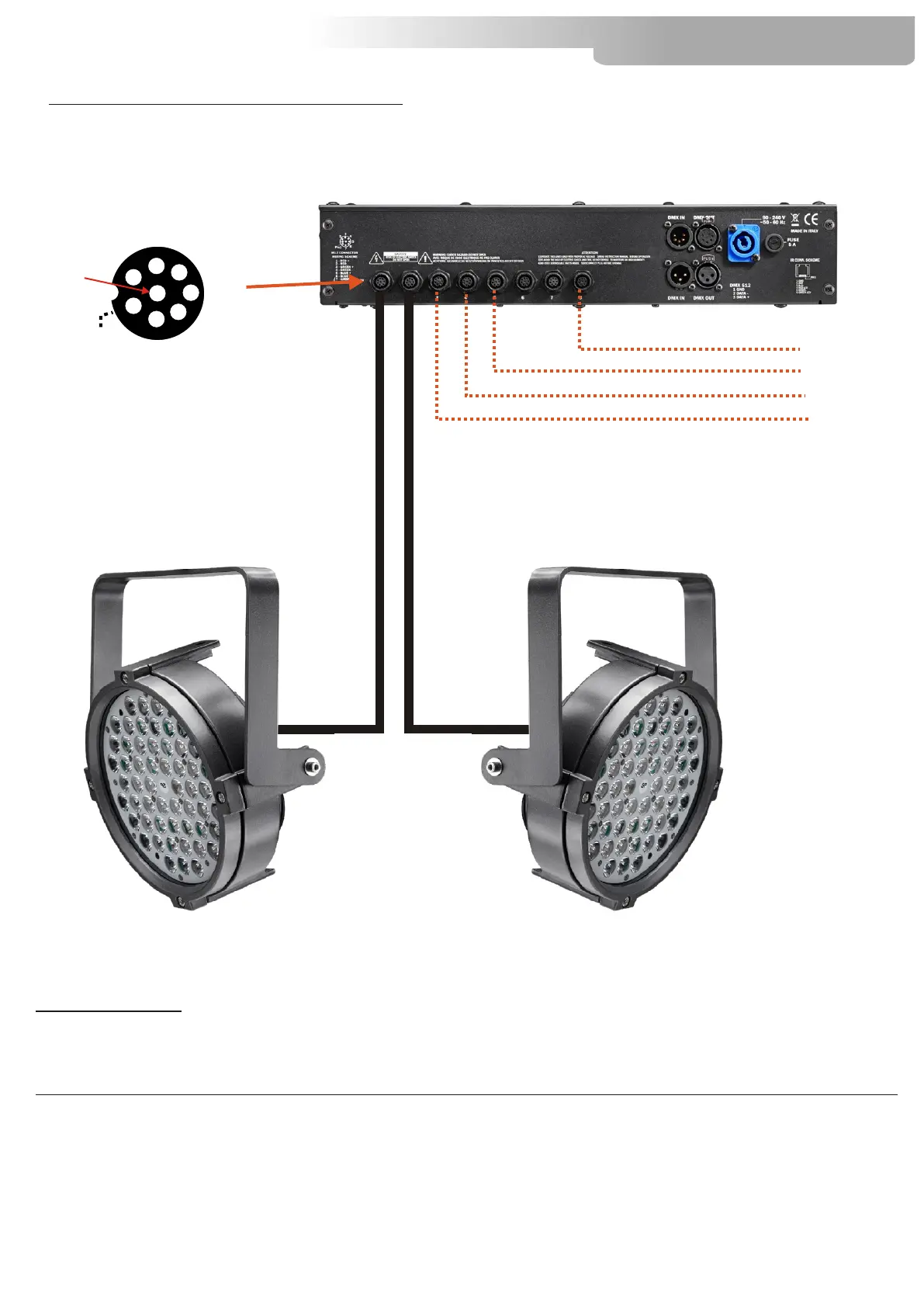

LED UNITS WIRING CONNECTION
03.LA.075.V2 (M12 OUTPUT)
IMPORTANT:
The maximum number of TITAN LED projector connectable to each Z8 LEDs output is 1 pc.
NEVER CONNECT NOR DISCONNECT A TITAN UNIT WHEN THE POWER SUPPLY IS TURNED ON.
The Maximum distance between the Z8 and the TITAN FULL COLOUR / RGBA / WHITE+AMBER unit
should not exceed 5 meter 0 s.
LEDs OUT 3
LEDs OUT 4
LEDs OUT 5
LEDs OUT 8
Pin1
2
3
4
5
6
7
8
M12 LED output
Female panel connector
28
TITAN RGBA
TITAN FULL COLOUR
TITAN WHITE+AMBER
