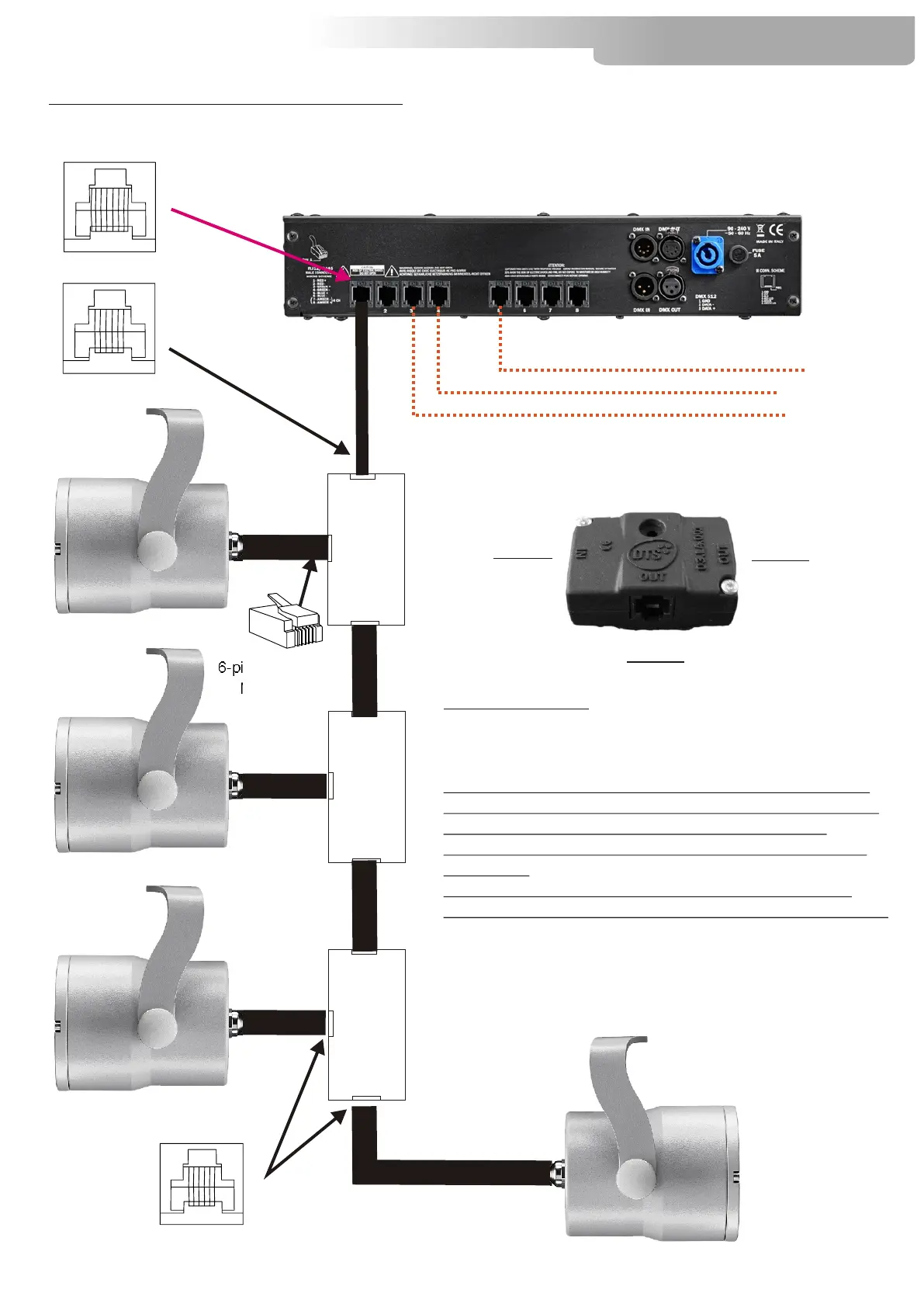

LED UNITS WIRING CONNECTION
D.T.S. T-BOX
CODE 03.LA.001
INPUT
OUT 1
OUT 2
IMPORTANT:
The maximum number of MR16 / FOCUS FULL
COLOUR LED projectors connectable to each Z8
LEDs output is 4 pcs.
Never plug the cable coming from the Power supply
into OUT 1 or OUT 2 of the T-BOX when other MR16
/ FOCUS FULL COLOUR units are connected,
because a wrong connection can seriously damage
the lamps.
NEVER CONNECT NOR DISCONNECT A MR16
UNIT WHEN THE POWER SUPPLY IS TURNED ON.
The Maximum distance between the Z8 and the last
MR16 unit in the line should not exceed meters 100
1
6
LEDs OUT 3
LEDs OUT 4
LEDs OUT 5
Z8 LED Controller
03.LA.074.V2 (RJ45 OUTPUT)
8-pin Female (RJ45)
1
8
26
4
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
2
INPUT
OUT 1
OUT 2
T BOX
6-pin Female (RJ12)
1
6
1
6-pin Male (RJ12)
Modular Plug
FOCUS FULL COLOUR
FOCUS FULL COLOUR
FOCUS FULL COLOUR
FOCUS FULL COLOUR
3
6-pin Female (RJ12)
