DTS Z8 User Manual

R+ R-
G+
G-
B+
B-
1
2
3
4
5
6
A+
7
A-
8
Z8 LED Controller

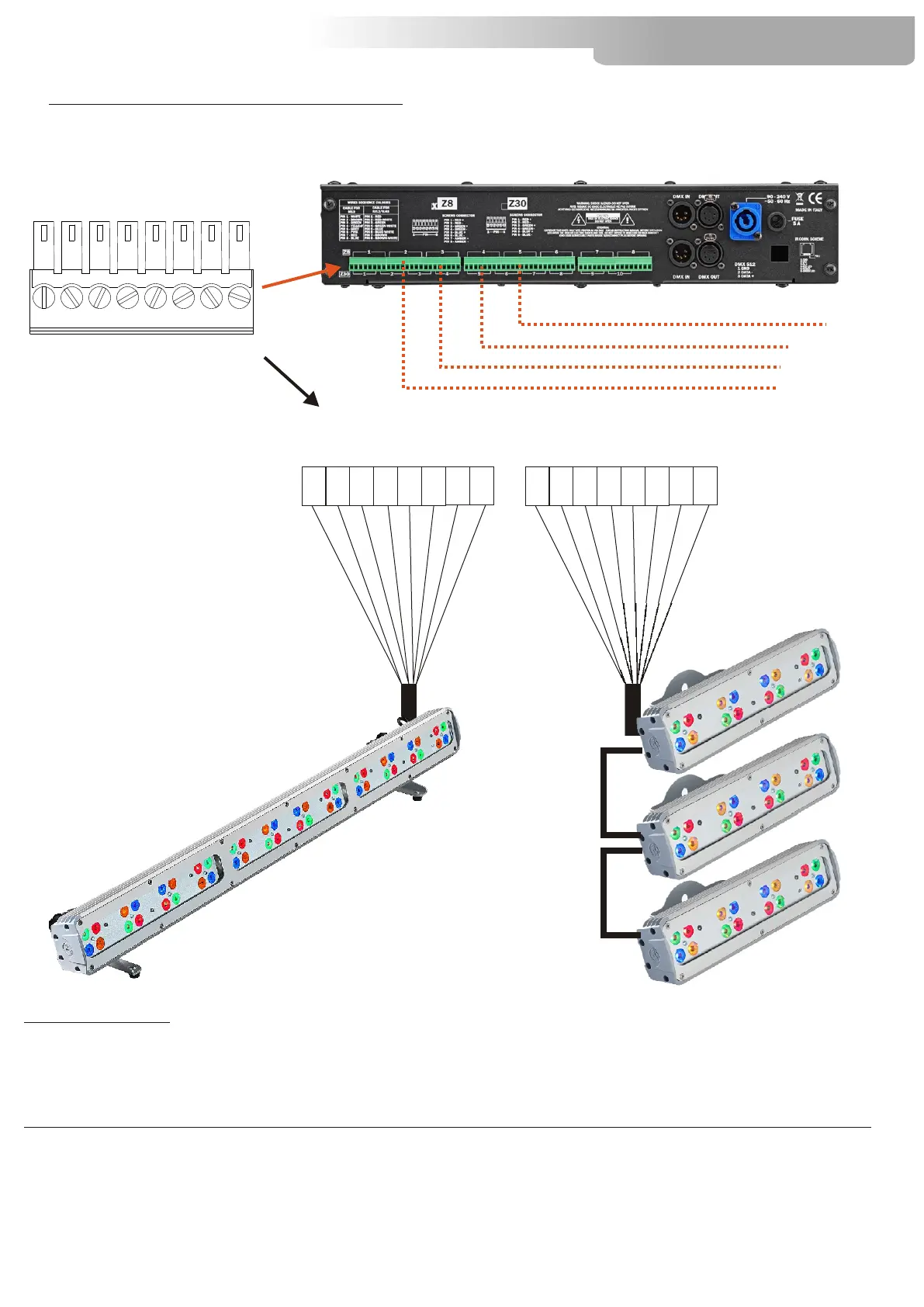

LED UNITS WIRING CONNECTION
03.LA.080.V2 (8 POLES PLUG-IN OUTPUT)
R+ R-
G+
G-
B+
B-
LEDS OUTPUT
1
2
3
4
5
6
8 poles plug-in screw connector
1---------PIN---------8
A+
7
A-
8
IMPORTANT:
The maximum number of FOS 100 LED bar connectable to each Z8 LEDs output is 1 pc.
The maximum number of FOS 33 LED bars connectable to each Z8 LEDs output is 3 pc.
NEVER CONNECT NOR DISCONNECT A FOS UNIT WHEN THE POWER SUPPLY IS TURNED ON.
The Maximum distance between the Z8 and the FOS 100 FULL COLOUR unit should not exceed 5
meter
The Maximum distance between the Z8 and the last FOS 33 FULL COLOUR unit in the line (3 pcs) should
not exceed 5 meters
The Maximum distance between the Z8 and the FOS 100 RGBA / WHITE unit should not exceed 10
meter
The Maximum distance between the Z8 and the last FOS 33 RGBA / WHITE unit in the line (3 pcs) should
not exceed 100 meters
0
s.
0
0
s.
LEDs OUT 2
LEDs OUT 3
LEDs OUT 4
LEDs OUT 5
LEDS OUTPUT
27
FOS 100 FULL COLOUR
FOS 100 RGBA
FOS 100 WHITE+AMBER
FOS 33 FULL COLOUR
FOS 33 RGBA
FOS 33 WHITE+AMBER
