DTS Z8 User Manual

INPUT/OUTPUT CONNECTIONS
5
3
4 2
1
1=GND
2=DATA-
3=DATA+
DMX IN-OUT connectors
For application where IP65 rating is not necessary, Z8 LEDs cabling connection can be done with a
standard UTP B2 category 5E cable.
For IP65 rating application, D.T.S. reccomed the use of a IP65/68 cable as the
multipolar black outdoor cable (D.T.S. Code: 0509C062).
The Maximum distance between the Z8 and the last LED unit in the line should not exceed
meters FOS 100 RGBA / WHITE, FOS 33 RGBA / WHITE (3pcs on the same line).
The Maximum distance between the Z8 and the last LED unit in the line should not exceed 50 meters
TITAN all models, FOS 100 FULL COLOUR, FOS 33 FULL COLOUR (3pcs on the same line)
TIA/EIA 568-
4X2XAWG24
100
for:
for:

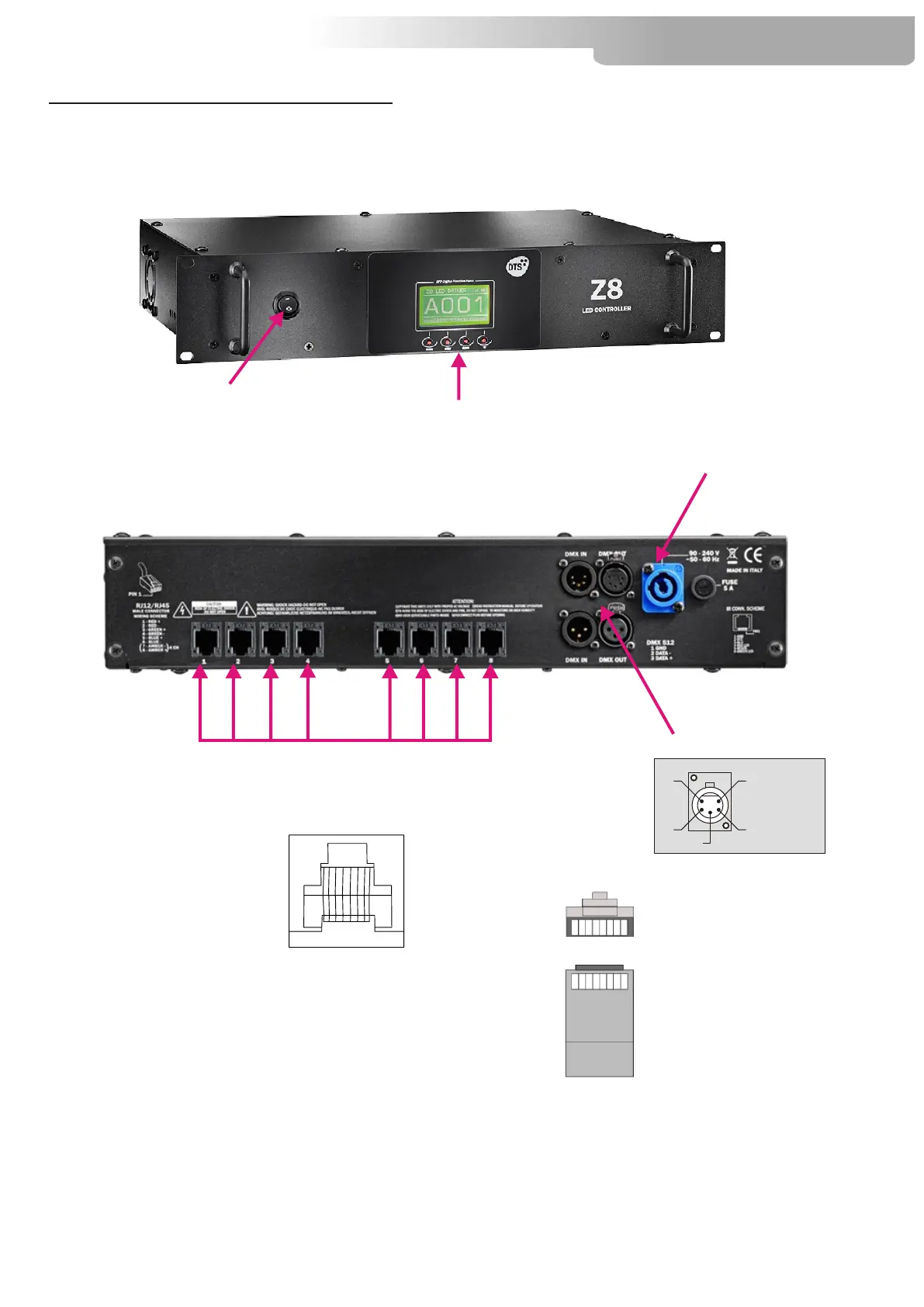

Z8 LED Controller
8 x LEDs output
RJ45 Female panel connector
03.LA.074.V2 (RJ45 OUTPUT)
8-pin Female (RJ45)
RJ45 : 8P8C
8P8C indicates 8 positions 8 cables
1
8
8-pin Male (RJ45)
Modular Plug
1
8
1
8
Mains 90-260 Vac
50-60 Hz
Powercon female panel
connector
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -
Pin 7 = AMBER +
Pin 8 = AMBER -
Displays
Mains Switch
6
