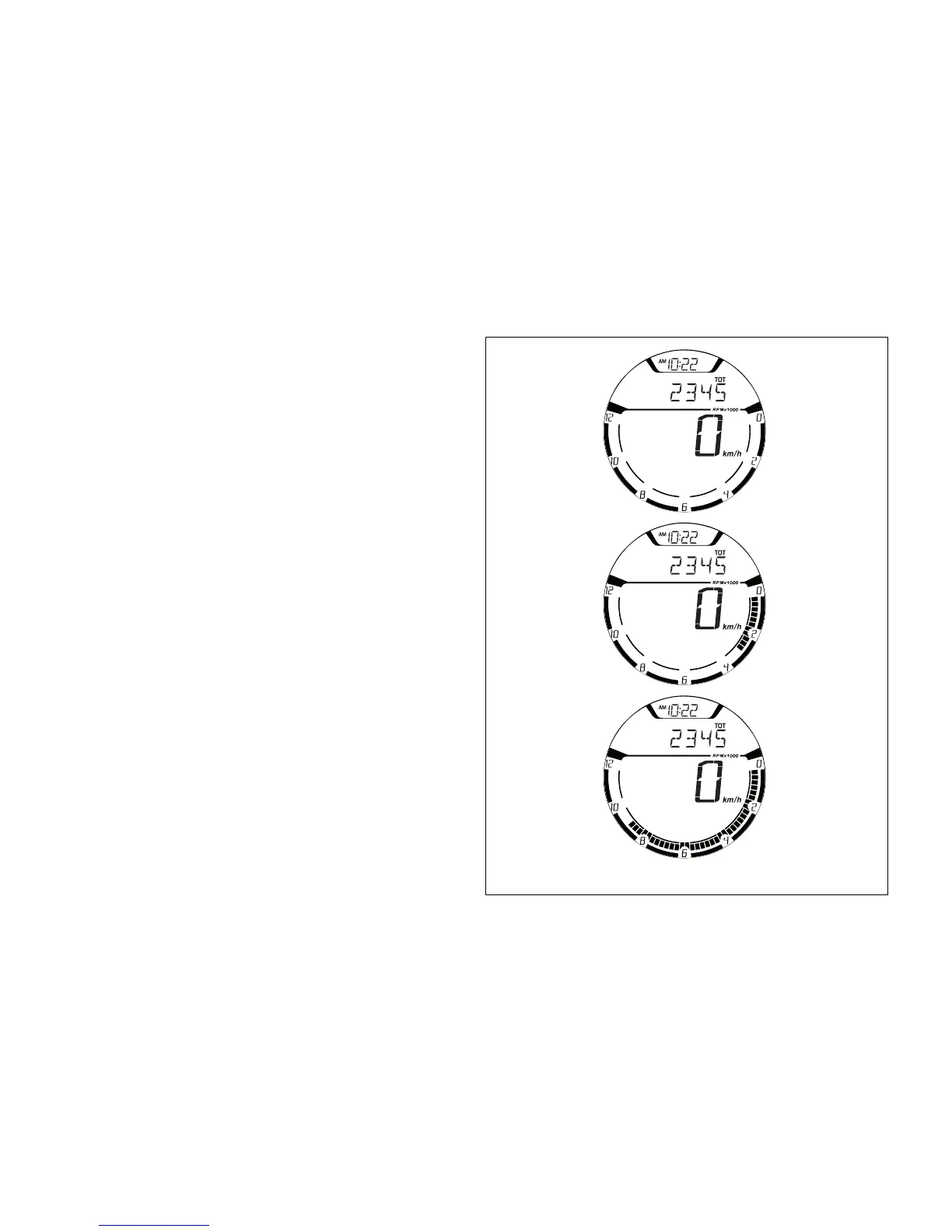

Engine rpm indication (RPM)
This Function allows displaying engine rpm.
Instrument panel receives rpm value and displays it.
The information is displayed by the bargraph filling
from the right to the left according to the engine rpm.
Fig 22
53
