Ducati Scrambler Owner's Manual

Odometer (TOT)
The odometer counts and displays the total distance
covered by the vehicle with the set unit of
measurement (mi or km).
The odometer number of mi or km is displayed with
the TOT indication and unit of measurement. When
the maximum value is reached (199999 mi or 199999
km) the instrument panel will permanently display
said value.
The odometer value is saved permanently and cannot
be reset under any circumstances.
The reading is not lost in case of a power off (Battery
Off).

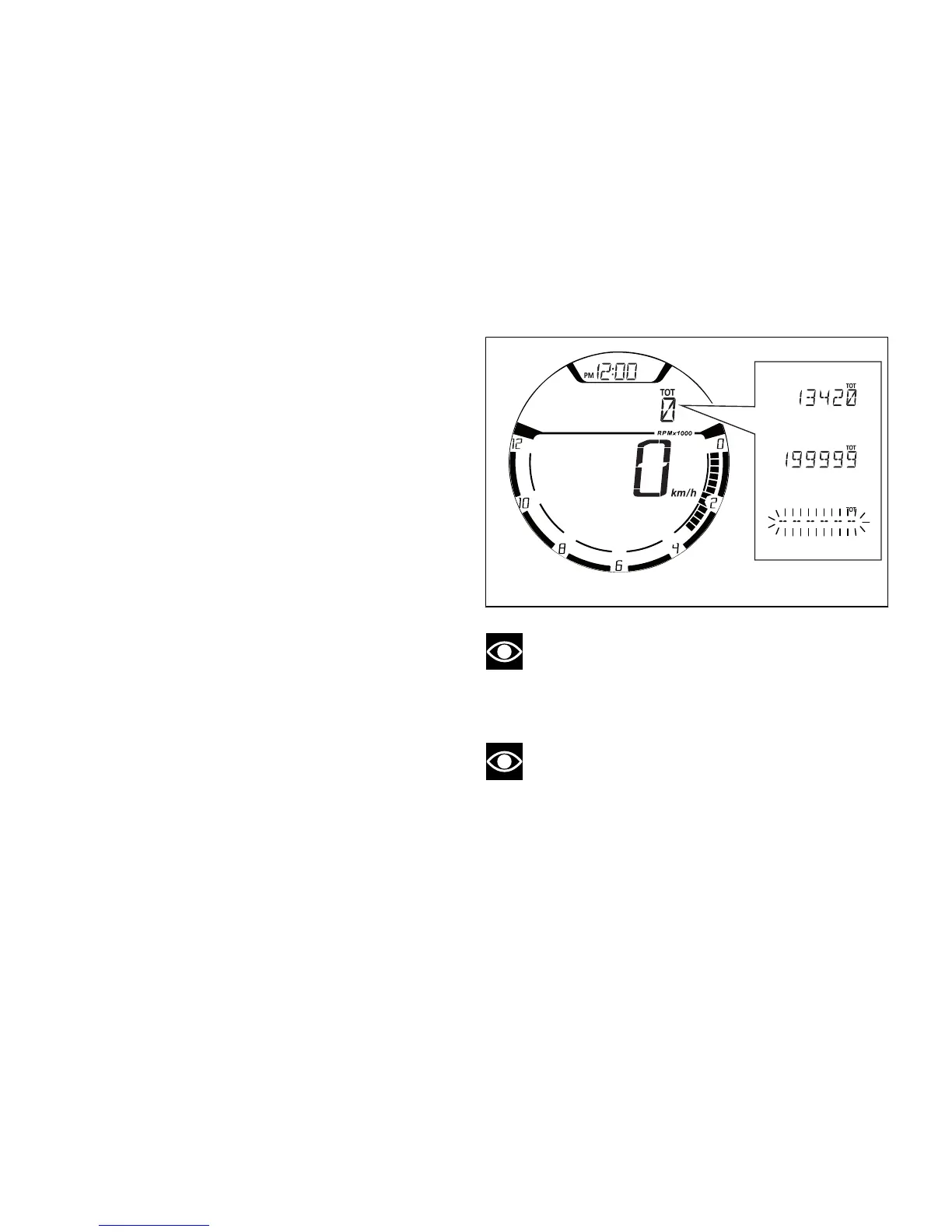

Fig 25
Note
Upon Key-On, the instrument panel always
shows the Odometer indication for 10 seconds, then
shows the user's settings page.
Note
If a string of flashing dashes " ----- " is displayed
within odometer function, please contact a Ducati
Dealer or Authorised Service Centre.
56

Ducati Scrambler Specifications

General

Power	73 hp (54 kW) @ 8, 250 rpm
Transmission	6-speed
Frame	Tubular steel trellis frame
Torque	49 lb-ft (67 Nm) @ 5, 750 rpm
Front Suspension	USD Kayaba 41 mm fork
Rear Suspension	Kayaba rear shock, preload adjustable
Rear Brake	245 mm disc, single-piston caliper
Fuel Tank Capacity	13.5 l (3.6 US gal)
Front Brake	330mm disc, radial 4-piston caliper, ABS
