Installation and Operation of Flexible Batch Broiler – Electric
16
C-2. Daily Cleaning (cont’d.)
1
2
2
1
1
3
2
1
2
1
3
2

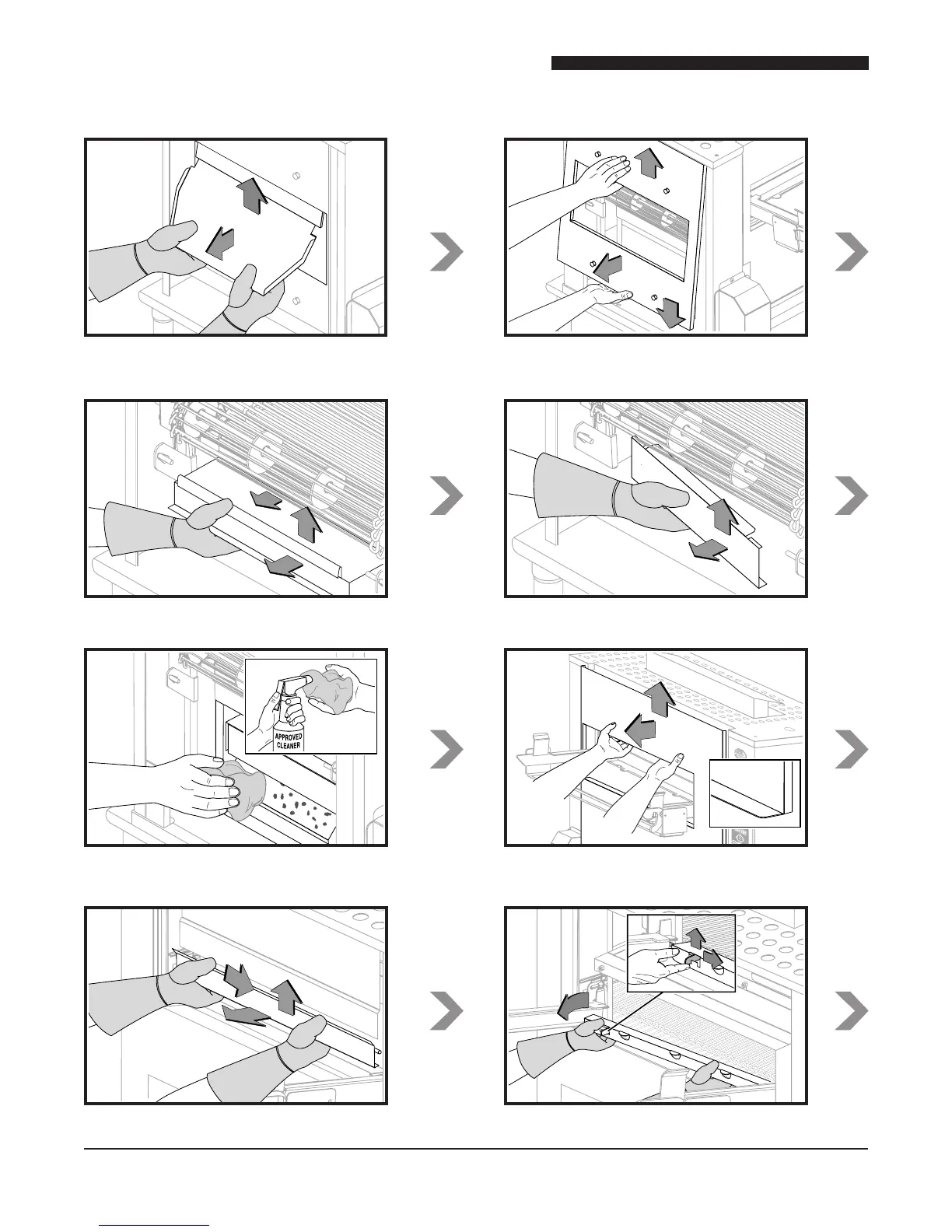

DISCHARGE CHUTE – Lift up and out SIDE PANEL – Lift up, slightly pull out panel
bottom, pull panel down to remove.
ASH SCRAPER – Pull forward, up and out GREASE DEFLECTOR – Lift up and pull out
INTERIOR SIDE COMPARTMENT – Spray wipe
cloth with degreaser or approved oven cleaner
BODY FRONT & BACK PANELS –
Lift up and away
LOADER RAMP – Unlock pin, angle forward
and pull out
LOADER DOOR – Tilt in, unhook and pull out
To Next Page
