Definition of Programming Terms

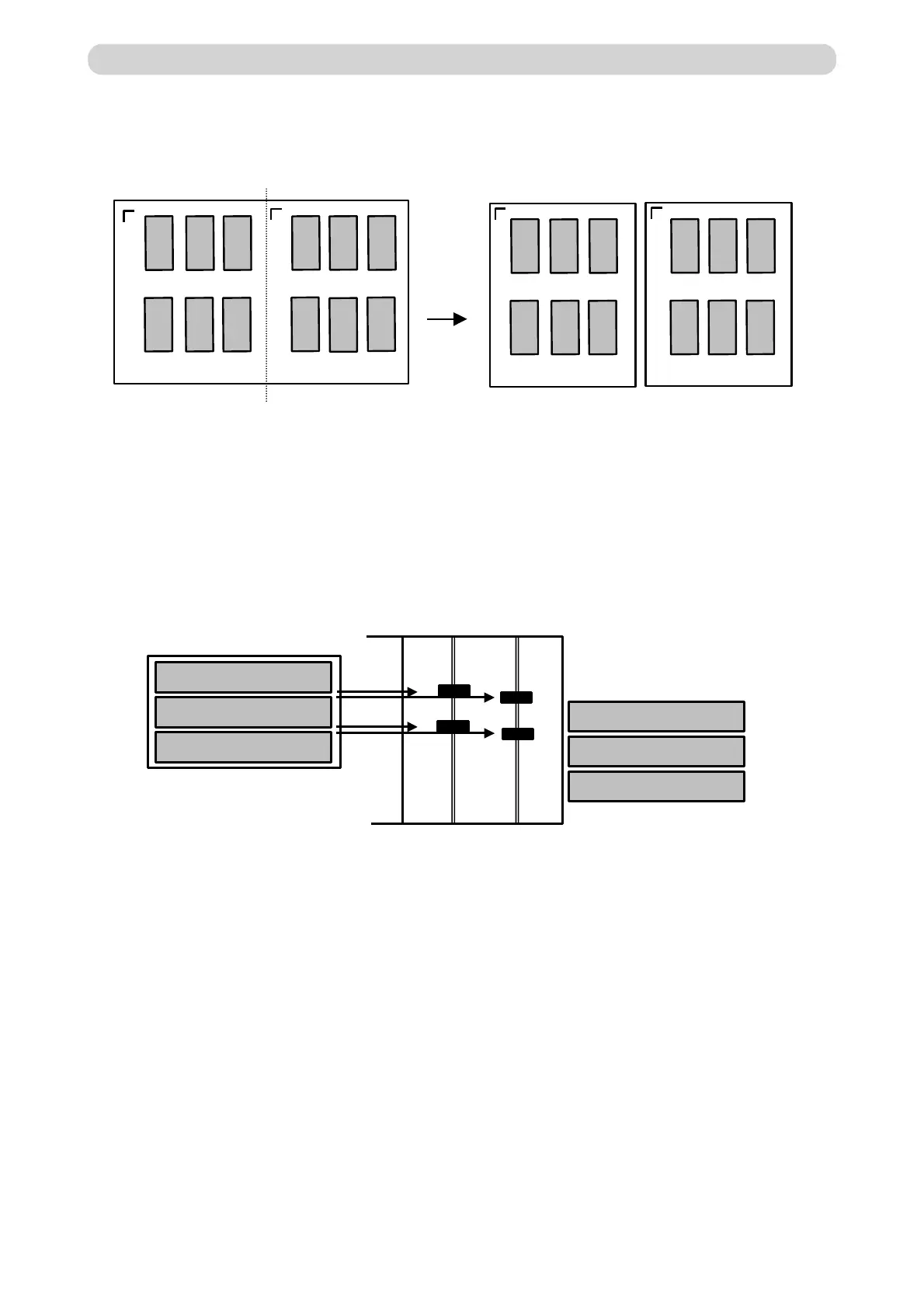

3) Cutting gutters
The slitters cannot be positioned closer together than 50 mm. To perform a gutter cut of a few mm, use slitters on two
adjacent shafts, not those on the same shaft. The waste between gutters will exit onto the delivery tray.
4) Location of right margin trim for A4 paper
Unlike the center slitters, both margin slitters share common axis lead screws. Due to the need to support the margin
slitters lead screws in the mid-area of the machine, a support was positioned approximately in the middle of the device.
This means that the right trimmer cannot trim below the dimension of 200 mm from the reference (datum or non-
operator side) edge.
In the worst case the image can drift up to 2 mm so the trim position should not be located less than 202 mm from the
reference edge.
