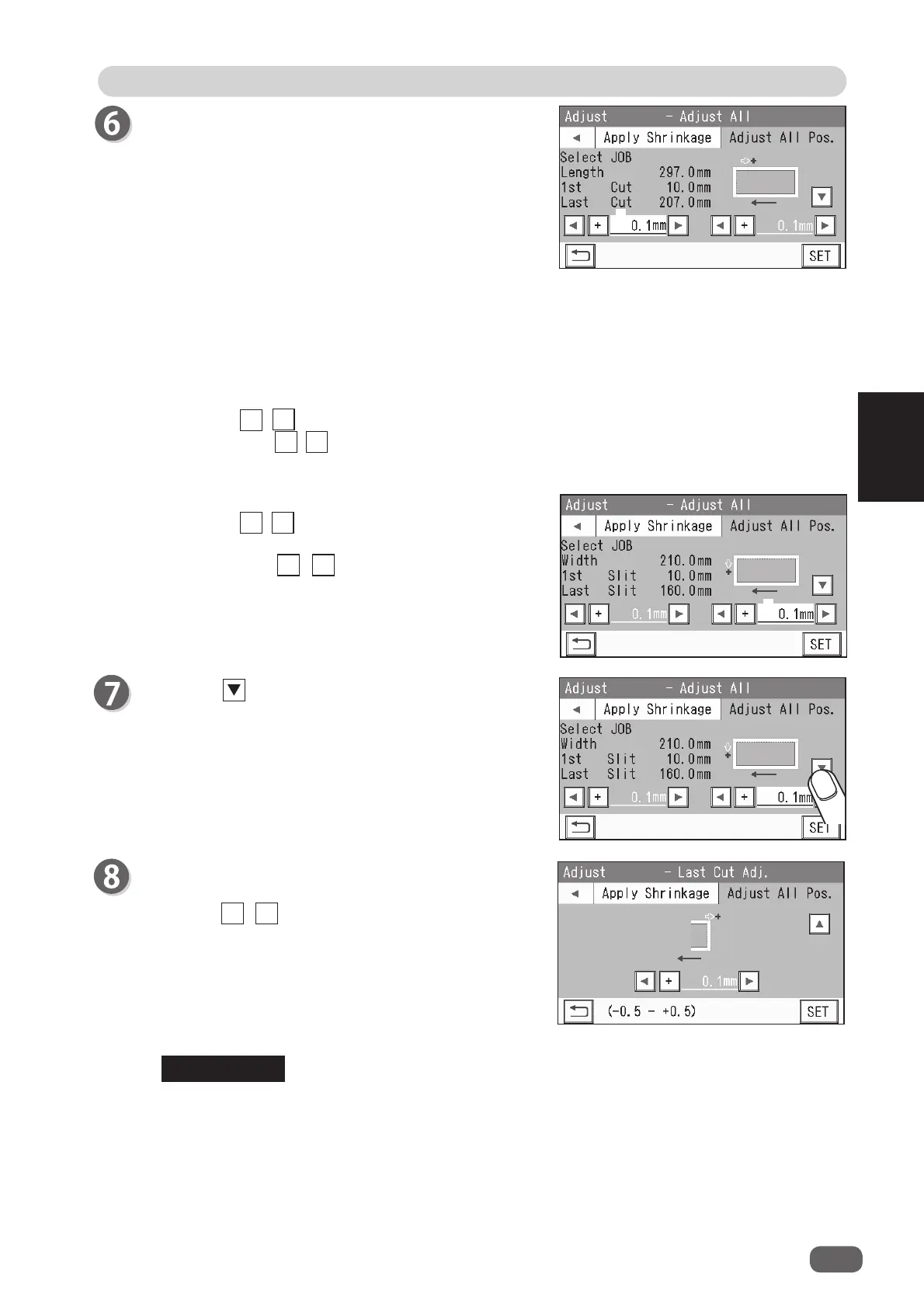

Adjust
3
Basic Operations
REFERENCE
Touch the icon.
1
2
Adjust All
This compensates a document position in a vertical
and horizontal direction against the JOB set.
The values of the following items of the JOB selected
are displayed as reference values.
• When
1
is being selected:
Length
1st Cut
(fi rst cut/fi rst crease)
Last Cut
(last cut/last crease)
• When
2
is being selected:
Width
1st Slit
Last Slit
2. Touch
2
.
Touch the / to adjust the value in a width
direction.
Every time the / icon is touched, a value
increases/decreases by 0.1.
You can enter up to ±20.0 mm.
1. Touch
1
.
Touch the / icon to adjust the value in a length direction.
Every time the / icon is touched, a value increases/decreases by 0.1.
You can enter up to ±20.0 mm.
Last Cut Adj.
This corrects the last cut position.
Touch the / icon to adjust the value.
You can make an adjustment in the range of -0.5 to
+0.5 mm.
+ direction: Moves the last cut position toward the
trail edge of the fi nished product.
- direction: Moves the last cut position toward the
lead edge of the fi nished product.
Last Cut Adj.
is displayed only when the
cutter module
is used for the JOB.
◄
►
◄ ►
◄ ►
◄
►
◄ ►
