Chapter 1 Before Operation
Copyright © 2019 Duplo Corporation All Rights Reserved

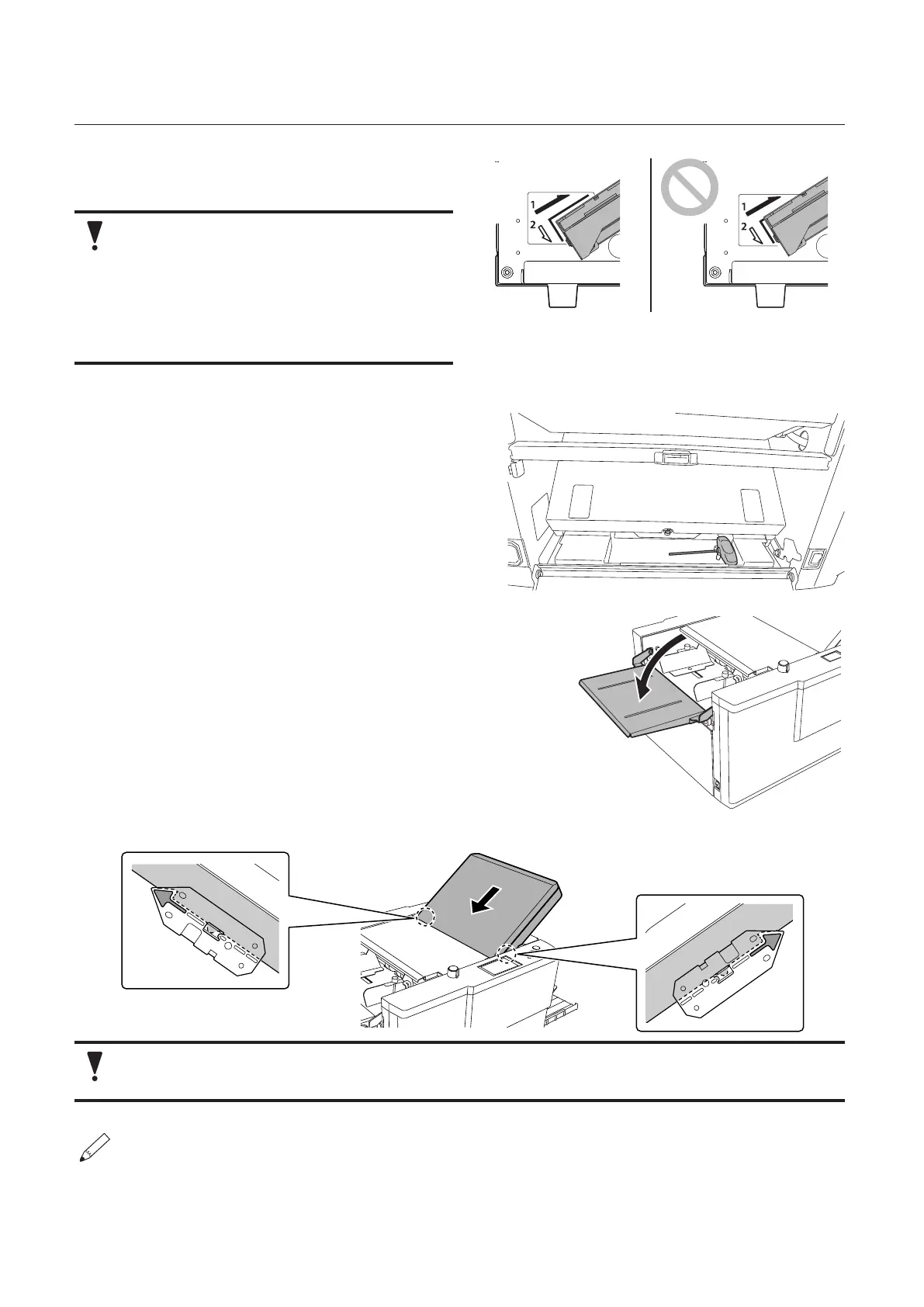

Be sure to check that the folding plate 2
is attached properly as shown in the right
gure.
• Attachthefoldingplate2holdingwith
both hands.
• Thesidecoverwillnotbeclosed,ifthe
folding plate 2 is not attached correctly.
Do not close the side cover forcedly,
when the side cover is not closed.
Breakage may be caused by doing so.
5
Store the T-shape hexagonal wrench,
accessory part, at the position inside
the machine as shown in the figure.
6
Close the side cover.
7
Open the support paper feed tray to the
left side from the operator’s view point.
8
Insert the folding plate 1 into the main body of the machine along with the set guide.
Attach the folding plate 1 holding with both hands.
Checkthatthegearonthereversesideofthefoldingplate1rotatesinthefront-backdirection,ifitis
not easy to attach the folding plate 1.
Attachthefoldingplate1tothismachineafterrotatingthegearby360degreeinarotatingdirection,
when it does not rotate either in the front direction or in the back direction.
