DURKOPP ADLER 767 Service Manual

Correction
–

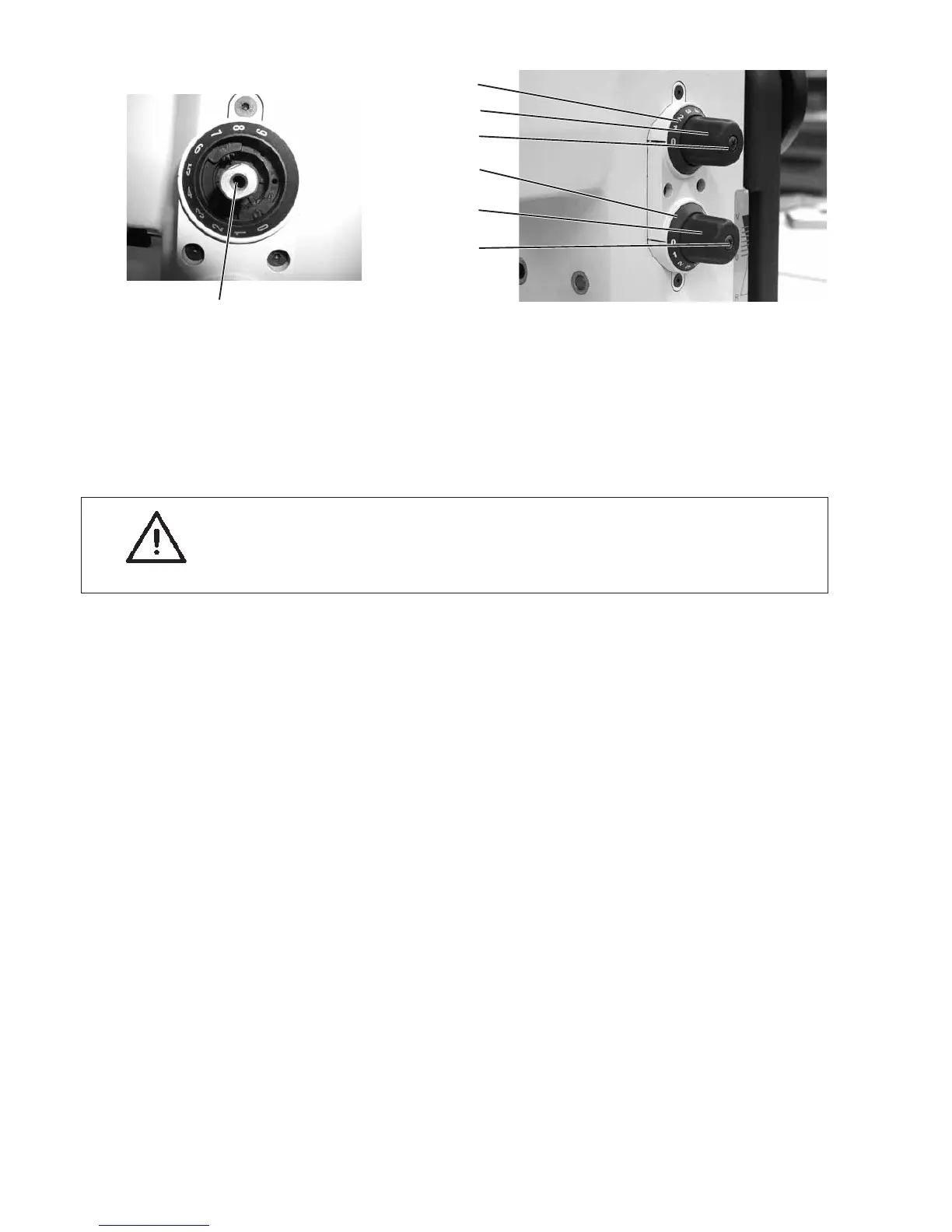

Unhook the spring at the stitch regulator lever.
–
Screw off screw 3 and pull setting wheel 2 off.
–
Turn the s pindle 7 to the right with a 10 mm open-end wrench until
block 10 has the least possible clearance (see item 3.1).
ATTENTION !
Do not turn the spindle 7 to the right too far. The stitch regulator
parts might jam, and the maximum stitch length of 9 mm or
6 mm is no longer reached.
–
Set scale 1 at “0".
–
Put the setting wheel 2 on again and tighten with screw 3.
–
Put spring in again.
–
Loosen screw 5 at the second setting wheel.
–
Pull off setting wheel 6.
–
Tu rn the spindle of the second setting wheel to the right with a
10 mm open-end wrench until a resistance can be felt.
–
Setthescale4at“0".
–
Put the setting wheel 6 on again and tighten with screw 5.
22
7
1
2
3
4
6
5
