1. General notes
ATTENTION !
The operations described in the service instructions must only be
executed by qualified s taff or correspondingly instructed persons
respectively!
Caution: Danger of injury !
In case of repair, alteration or maintenance work s witch off main
switch and disconnect the machine from the pneumatic supply
system.
Carry out adjusting operations and functional tests of the running
machine only under observation of all safety measures and with
utmost caution.
The instruction manual on hand describes the adjustment of the sewing
machine in an appropriate sequence.
Please observe in this connection that various setting positions are
interdependent. Therefore it is absolutely necessary to do the
adjustment following the described order.
For all setting operations of parts involved in the stitch formation a new
needle without any damage has to be inserted.

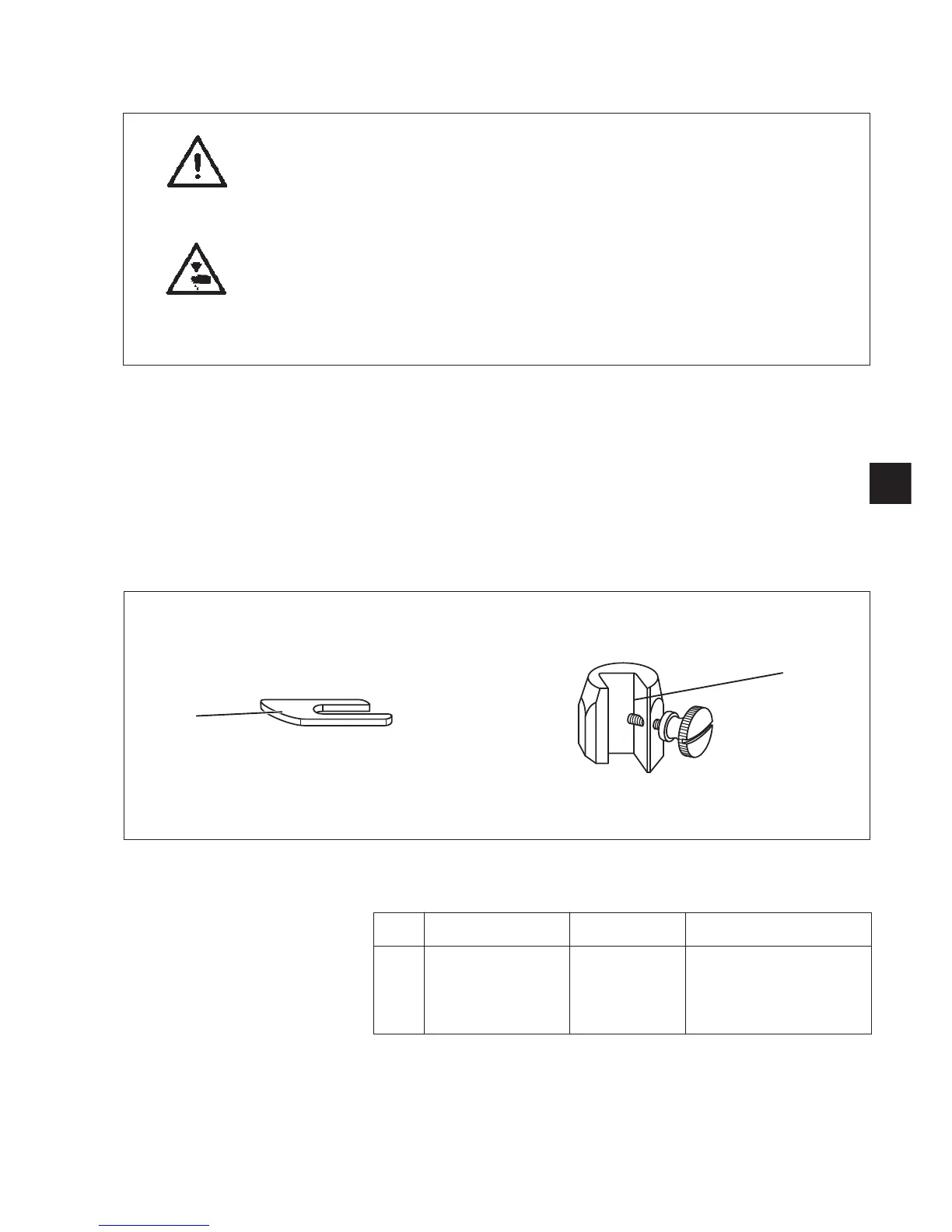

1.1 Gauge kit
The setting gauges mentioned below allow a precise setting and testing
of the sewing machine.
Pos. Setting gauge Order No. Use
1 Gauge 0981 150003 looping stroke (2mm)
2 Adjusting block 0981 150002 looping stroke
3 Gauge 0767 250020 sewing foot stroke adj.
(lever position)
3
GB
1
2
