19.9 Connecting the controls and the solenoid valve for the remaining thread monitor
ATTENTION !
The electrical installation may only be conducted by
electricians or apropriately instructed persons !
The mains plug must be pulled !
–

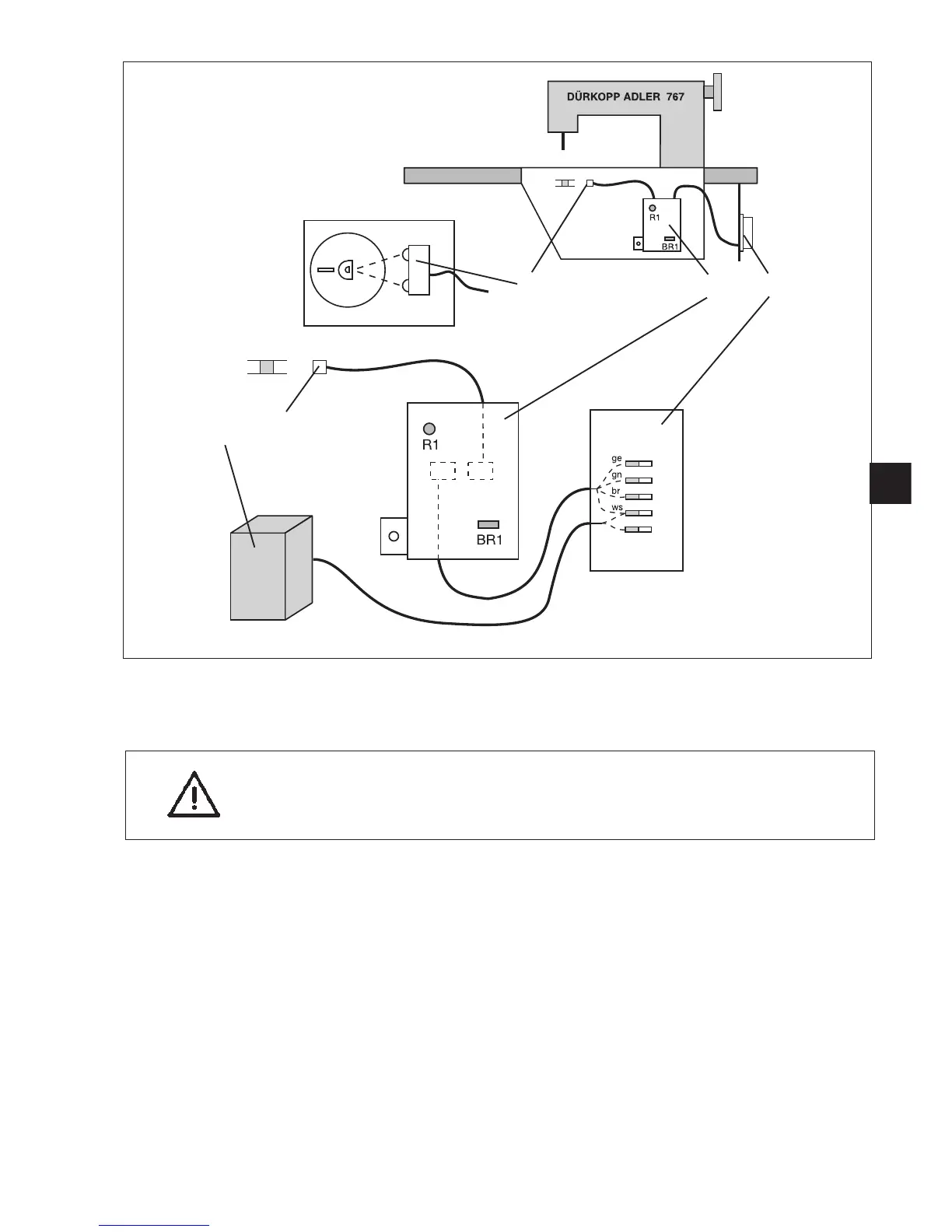

Screw the controls 3 onto the base plate of the sewing machine and
valve2ontothevalvestrip.
–
Connect the hose from the light barrier 1 with the valve 2.
Pull the hose and connection cable of the light barrier through the
slit in the light barrier holder, lay behind the hook drive shaft and
there tie together with a hose clamp.
Fasten the hose and cable to the oil return pipe and onto the knee
lever shaft with a hose clamp.
–
Check the Interconnection-diagram 9890 767008 B for the electrical
connection of the valve 2 and the c ontrols 3
