12.5 Mounting of the head cover
During operation of the sewing machine, oil is also spun off against the
inside of the head cover. In order to prevent this oil from running out of
the head, the felt pad 2 is glued onto the head cover to conduct the oil
to the recirculation felt 4.
Caution Risk of Injury !
Turnthemainswitchoff.
Attach or detach the head cover only w ith the sewing machine
turned off.
–

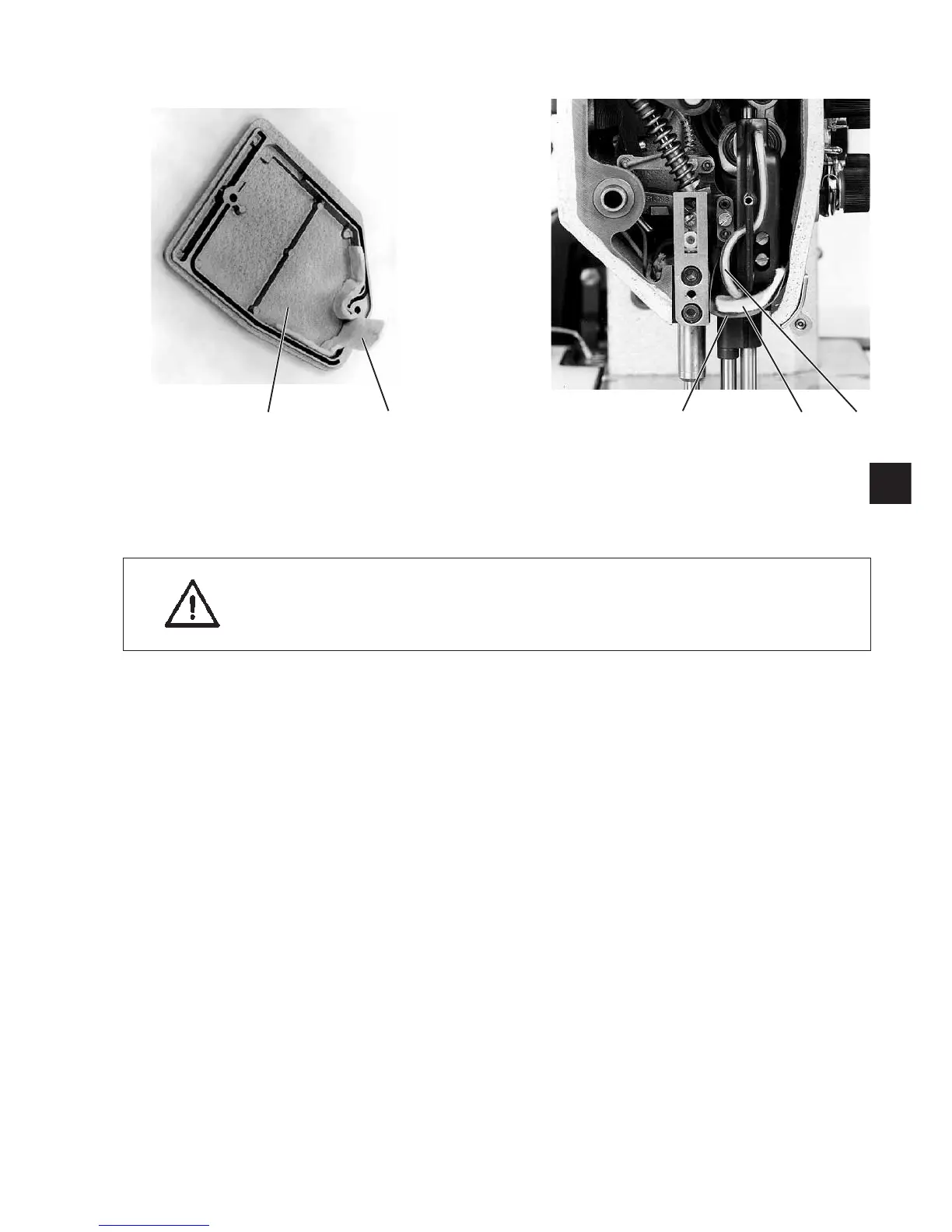

Place the head cover and screw fast.
The felt tongue 2 of the head cover 1 must be clamped
between the recirculation felt 4 and the nipple of the wick 5.
The foil 3 must touch on the inside of the head cover.
