6.12 Lifting the sewing foot
Subclasses
867-190020, 867-190020-M, 867-190040, 867-290020, 867-290040,
867-190020-70, 867-190040-70, 867-290020-70, 867-290040-70
The sewing feet can be lifted mechanically by actuating the knee
lever 1.
Subclasses
867-160152, 867-190122, 867-190125, 867-190142, 867-190142-M,
867-190145, 867-190146, 867-190322, 867-190342, 867-190425,
867-190445, 867-260152, 867-290122, 867-290142, 867-290322,
867-290342, 867-290445, 867-392342, 867-393342, 867-394342,
867-490322, 867-190122-70, 867-190322-70, 867-190342-70,
867-290122-70, 867-290322-70, 867-290342-70, 867-290342-100

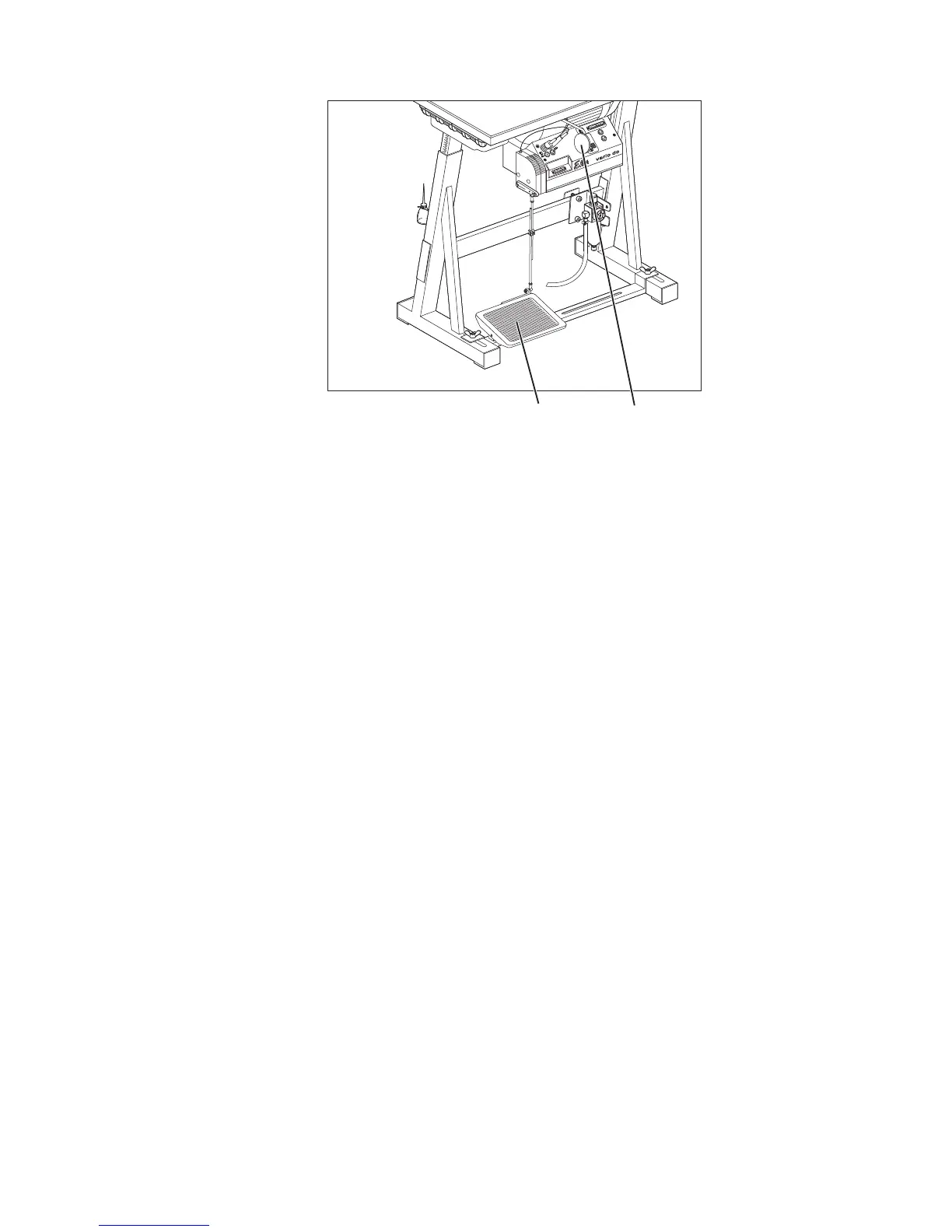

The sewing feet can be lifted electro-pneumatically by actuating the
pedal 2 or the k nee lever 1.
Raising the sewing foot mechanically (knee lever)
–
To adjust the position of the material (e.g. for corrective purposes),
push the knee lever 1 to the right.
The sewing foot stays in the up position as long as pressure is
maintained on the knee lever 1.
Raising the sewing foot electro-pneumatically (pedal)
–
Press the pedal 2 half-way back.
The sewing feet are raised with the machine at a halt.
–
Press the pedal 2 all the way back.
The thread is severed and the sewing foot raised.
