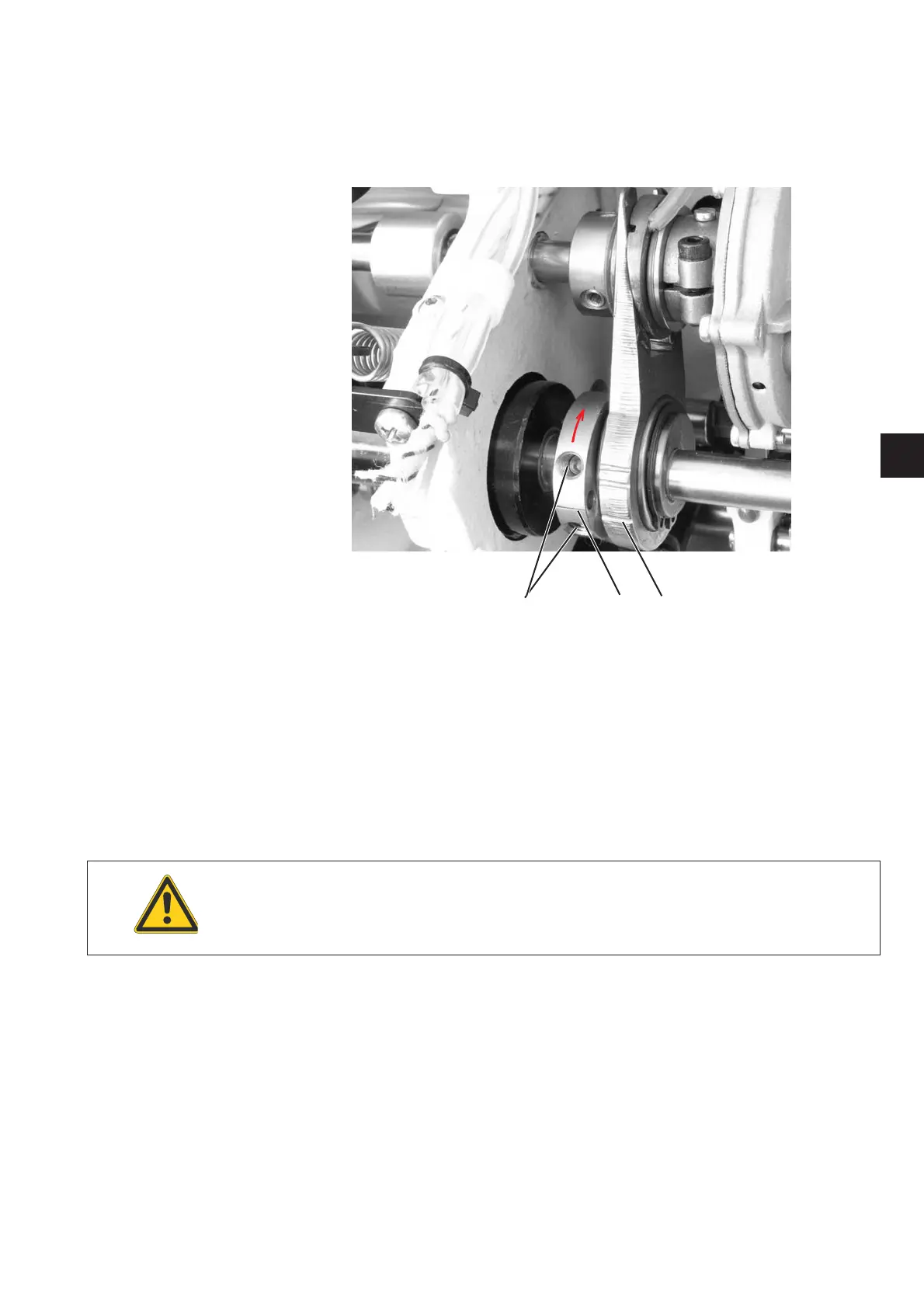

2.6 Position of the eccentric tappet for the switch over of the feed clutch
Rule:
When the handwheel pointer indicates “313” on the scale, the dash (1)
on the eccentric tappet should be lined up with the lower dash (2) on
the V-shaped push rod.
Loosen screws (3).
Turn the handwheel to position 313”.
Turn the eccentric tappet in the direction of arrow so that dash (1)
is lined up with dash (2).
Turn back the eccentric tappet about and move axially on the
shaft until the middle is between the limit settings.
Align the two dashes (1) and (2) again. Tighten the screws (3).
Caution: Risk of injury!
Turnthemainswitchoff.
Only carry out this adjustment when the machine is turned off.
