1.2.2 Sewing machine with direct drive
–

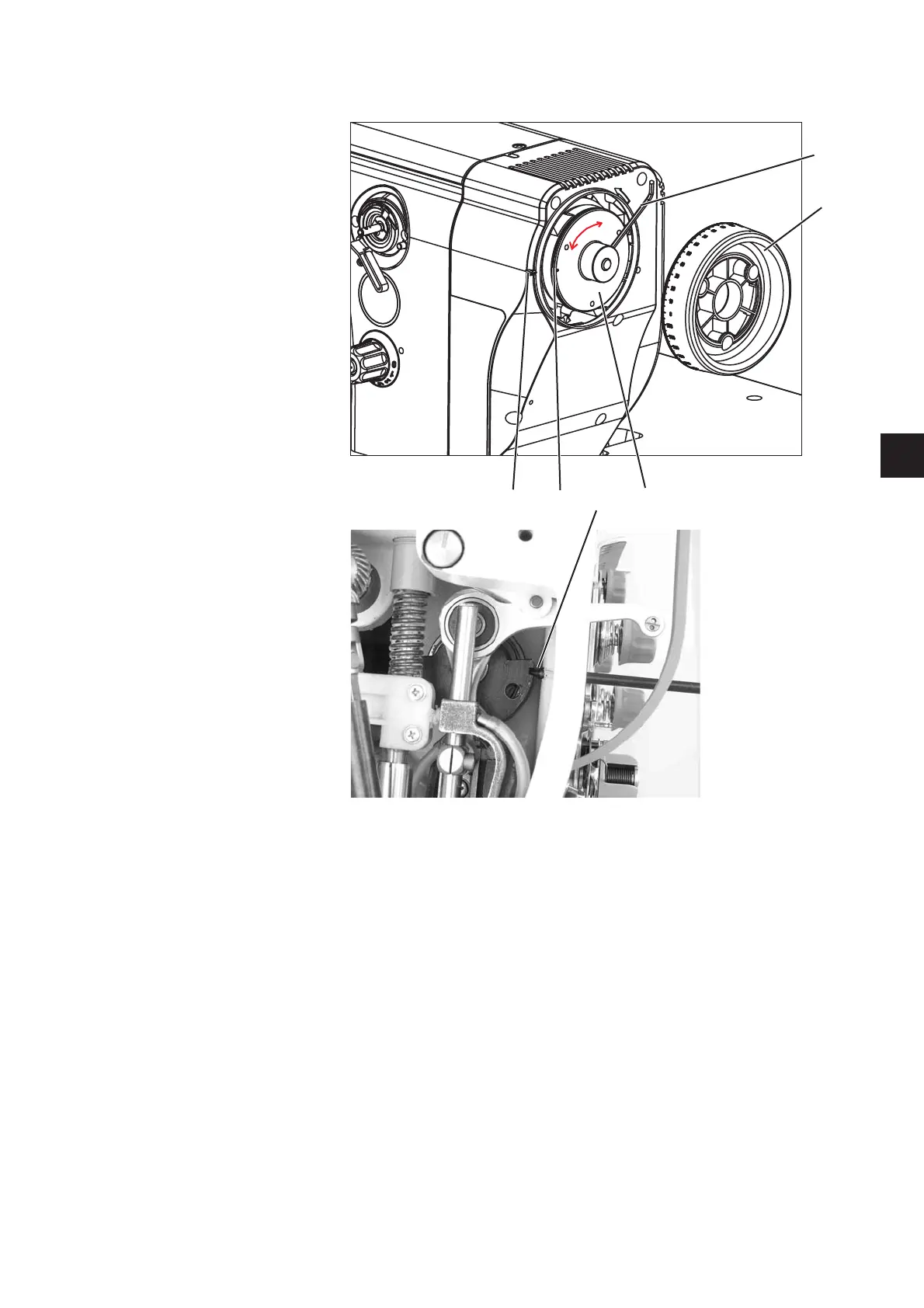

Unscrew three fixing screws on the hand wheel (5) and remove it.
–
Put the needle in the upper dead point and insert the setting pin
(2), which is a part of the sewing machine accessories and which is
fixed on the oil tray bottom side, into the crank head.
–
Loosen two setting screws of the hand wheel flange (4) with the
Allenkey3mm(1).
–
Turn the hand wheel flange with the hollow (6) against the sign (3).
–
Tighten both setting screws with the key (1) and fix the hand wheel
on again.
