3 Top feed

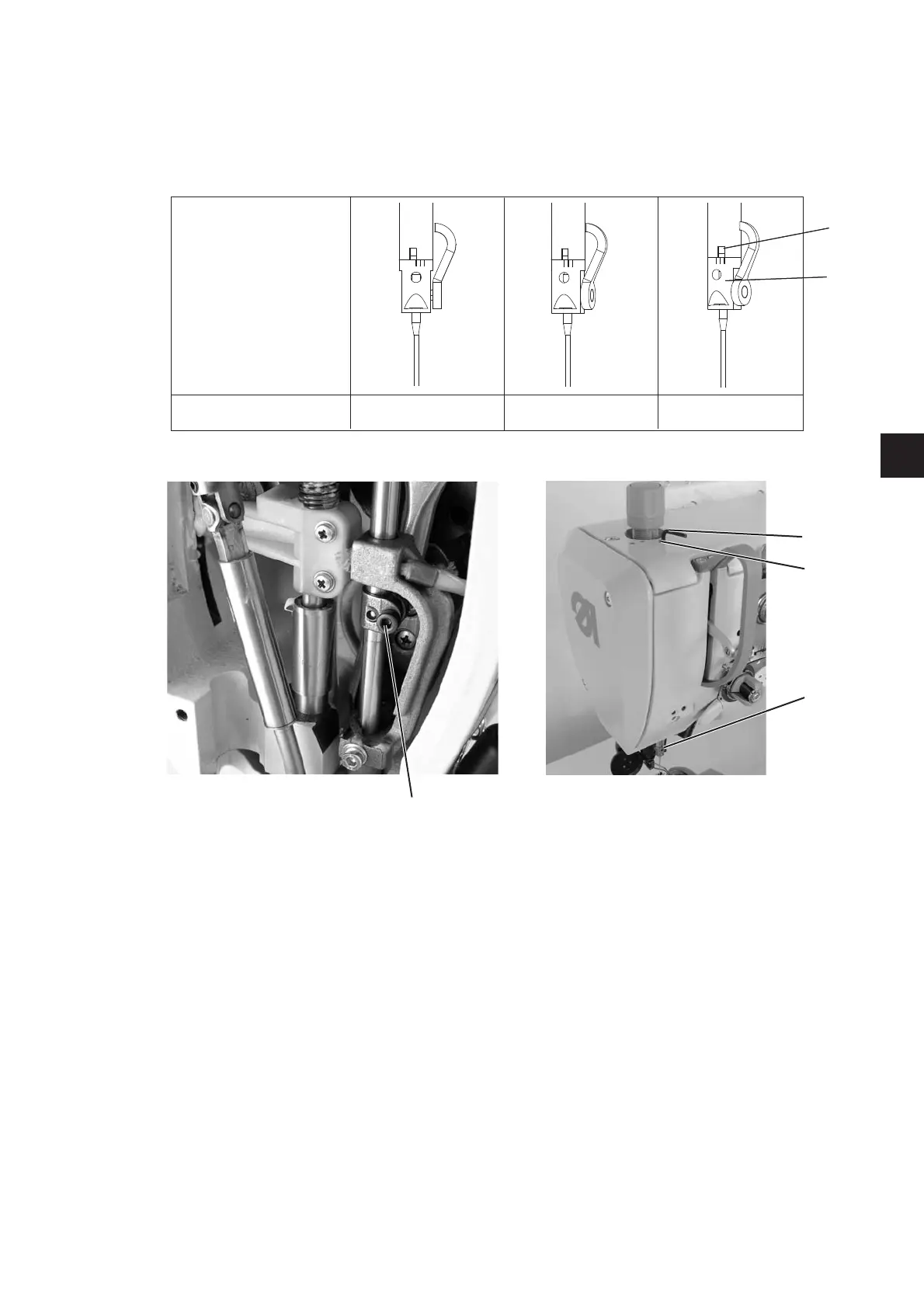

3.1 Position of the needle holder with single needle sewing machines
Rule:
The position of the needle holder is to be set in dependance to the
needle thickness according to the following chart.
Angular position of
the needle holder
Needle thickness Nm 70 - 110 120 - 160 180 - 200
–
Remove the thread guide.
–
Loosen screw (1) and turn the needle bar with the right groove
edge (2) to the needle bar axis (in sewing direction) and tighten
screw (1).
–
Bring the needle bar to the upper dead center and loosen the
screw of the needle holder through the bore (3) by using an Allen
key of 2.5 mm (4).
–
Turn the needle holder (5) according to the rule and tighten the
screw (1).
19
EN
1
3
5
4
2
5
